In steam systems, the selection of valves is crucial for the safe and efficient operation of the systems. The BS 1873 standard provides important technical guidance for the design and operation of steam systems. BUTTERFLY VALVES, TRUNNION BALL VALVES, and GATE VALVES, as common types of valves, each have their own unique performance characteristics and applicable scenarios. This article will explore the performance differences among these three types of valves in steam systems through comparative analysis to help engineers and technicians make wiser choices.
I. OVERVIEW OF VALVES

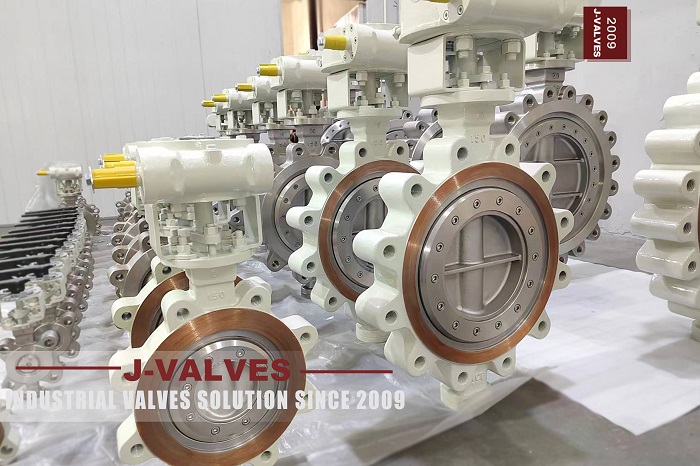

Butterfly Valves
A BUTTERFLY VALVE is a valve with a compact structure and flexible operation. It controls the fluid by rotating the valve stem to drive the disc to rotate within the valve body. Its main advantages include small size, light weight, and convenient installation. It is especially suitable for large-diameter pipelines and occasions where space is limited. Butterfly valves have a fast operation speed. Usually, only a 90° rotation is needed to complete the opening and closing operations, enabling them to quickly respond to the needs of the system.
Trunnion Ball Valves
A TRUNNION BALL VALVE is a high-performance ball valve. Its ball is fixed on the valve body through trunnions and can maintain stable sealing performance under high-pressure and high-flow conditions. The trunnion design reduces the operating torque and improves the reliability and durability of the valve. This type of valve is suitable for industrial scenarios that require frequent operation and high sealing requirements.
Gate Valves
A GATE VALVE controls the flow of fluid by raising and lowering the gate. Its design is simple, and it has good high-temperature and high-pressure resistance and can provide a good sealing effect. When the gate valve is fully opened, the fluid passage is wide with low resistance, making it suitable for occasions where large-flow transmission is required.
II. COMPARATIVE ANALYSIS OF PERFORMANCE
The following is the performance comparison of trunnion ball valves, butterfly valves, and gate valves in steam systems, analyzed in accordance with the relevant requirements of the BS 1873 standard:
Characteristics | Trunnion Ball Valves | Butterfly Valves | Gate Valves |
Sealing Performance | Excellent. The fixed ball design and multi-seat configuration ensure no leakage under high pressure | Good, but the sealing surface is prone to damage under high pressure | Excellent. The gate is completely separated from the flow channel, and the sealing is reliable |
Pressure-bearing Capacity | High, suitable for high-pressure steam systems | Limited, suitable for systems below 6.4 MPa | High, able to withstand high pressure |
Operation Speed | Fast, with small operating torque | Very fast. The opening and closing can be completed with a 90° rotation | Slow, requiring multiple rotations of the handwheel |
Fluid Resistance | Small, with a full-bore design | Moderate. The disc may cause turbulence in the flow channel | Small, with a wide flow channel |
Installation Space | Relatively large, but smaller than that of gate valves | Small, suitable for occasions where space is limited | Large, requiring more space |
Maintenance Cost | High, with a complex structure | Low, with a simple structure | Moderate, relatively easy to maintain |
Applicable Scenarios | High-pressure and high-flow steam systems | Low-pressure steam systems, large-diameter pipelines | High-pressure and large-flow steam systems |
III. CONCLUSION
In steam systems, BUTTERFLY VALVES, TRUNNION BALL VALVES, and GATE VALVES each have their own advantages and disadvantages. Choosing the appropriate valve requires comprehensive consideration of factors such as the pressure, flow, space limitations, and maintenance costs of the system. According to the requirements of the BS 1873 standard, for high-pressure and high-flow steam systems, trunnion ball valves and gate valves are more suitable choices because they have higher sealing performance and pressure-bearing capacity. However, if the system has strict requirements for operation speed and installation space, butterfly valves may be a better choice, especially in low-pressure steam systems.
In practical applications, it is recommended to conduct a detailed assessment based on specific working conditions and combine the long-term operation costs and maintenance requirements of valves to select the most suitable valve type. Through reasonable selection and optimized configuration, the operation efficiency and reliability of steam systems can be effectively improved, while maintenance costs and safety risks can be reduced.
