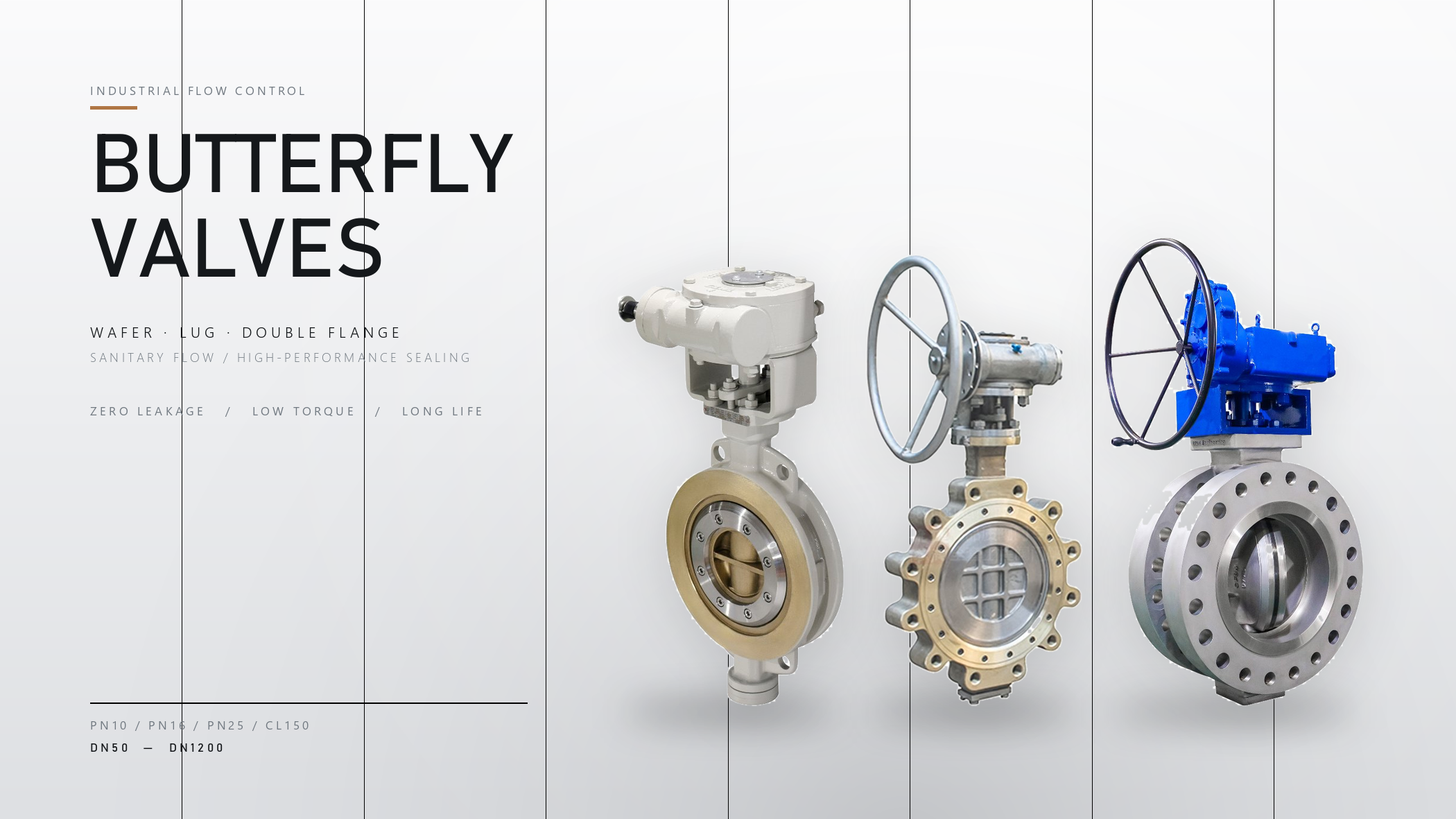

Wafer, lug and double flanged butterfly valves usually carry the same disc, the same stem and often the same seat. What changes is how the body is held between the pipe flanges, and that single detail decides whether the valve can sit at the end of a line, whether it can be removed without spreading the pipe, how many gasket faces the fitter has to get right and how the valve behaves when the line is vibrated. Buyers who compare only pressure class and seat material end up with a valve that fits the duty and cannot be maintained in it.
A wafer body is clamped between the two pipe flanges by long studs that pass through the body itself, so the body has no threads and no flange faces of its own. It is the shortest and lightest of the three, which is why it dominates water, HVAC and general isolation duty where space is tight and the valve is installed once. The limitation is structural rather than metallurgical: with a wafer body the joint is only complete when both flanges are present. Install it at the end of a line and there is no second flange to pull against, so the studs have nothing to grip and the valve cannot be commissioned. That is a dead-end rule, not a preference.
A lug body carries drilled and tapped lugs, so each pipe flange is bolted to the valve independently of the other. Two things follow. The valve can sit at the end of a line with a blind flange or nothing at all downstream, because each side holds its own bolts. And one side can be unbolted while the other remains under pressure, which is what makes a lug valve useful for isolating a header branch, for pressure testing a spool, and for pulling a valve for cleaning without cutting the pipe. The cost is more bolts, more weight and a heavier casting, and the lugs are the part that suffers first when the line vibrates or when the bolts are over-torqued into a soft body material.
The double flanged body has two integral flanges and its own gaskets, and it installs like a short length of pipe. It is the heaviest and most expensive of the three, and it is the right answer in three situations: sizes above roughly DN600 where a wafer body would need studs of absurd length, high pressure classes where tapped lugs in a casting stop being credible, and lined or rubber coated bodies where the lining has to be kept away from the gasket face. Removal still needs the pipe spread, so the double flanged body does not solve the maintenance problem that a lug body solves. What it solves is the mechanical one.
Body style and seat technology are separate decisions, and confusing them is the second most common specification error. A concentric valve with a resilient rubber seat is tight at low torque and cheap, but the disc sits in the flow path at all times and the seat sees full velocity, which limits it to about PN16 or Class 150 and roughly 200 C before the elastomer takes a permanent set. A double offset design lifts the disc off the seat in the first few degrees of travel, so the seat stops rubbing and a PTFE or metal seat becomes practical at higher temperature. A triple offset design uses a conical metal seat with the torque isolated from the sealing surface, which is how a butterfly valve reaches Class 600 and 600 C. The same lug body can be supplied with any of the three, so the body style should be chosen for installation and the seat for the process.
The disc sweeps into the pipe as it opens, so the clearance is measured against the disc radius, not against the flange. An elbow welded close to the valve, a pipe with a smaller internal diameter than the flange bore, or a gasket whose inner diameter overhangs into the line will all stop the disc before it reaches full open, and the actuator will report a torque fault that looks like a valve problem. Gaskets are the second trap: a raised face that crushes the seat, a spiral wound gasket used where a flat face was intended, or a tightening pattern that pulls the body out of square. Stem orientation matters more as size increases, because a horizontal stem puts the disc weight on the bearings. And on lug valves welded into a spool, welding spatter on the seat face is a leak that no pressure test at the works could have predicted.
Body style | How it is bolted | Dead-end service | Best use |
Wafer | Long studs pass through the body | No | Water, HVAC, tight spaces, low cost isolation |
Lug | Each flange bolted to tapped lugs | Yes | Header branches, spool testing, valves pulled for cleaning |
Double flanged | Integral flanges both sides | Yes | Large sizes, high classes, lined bodies |
Butt welded | Welded directly to the pipe | Yes | Buried and underground lines with no leak path |
Four lines settle the order: body style with the flange drilling standard, seat construction with the temperature and pressure class, leakage class tested to API 598 at 1.1 times the rating, and the actuator mounting interface with the required breakaway torque. J-VALVES supplies concentric, double offset and triple offset butterfly valves from 2 to 24 inch (DN50 to DN600) in wafer, lug, double flanged and butt welded bodies, in WCB, CF8, CF8M, ductile iron and C95800 bronze, to API 609 and API 598, with EN 10204 3.1 certificates.
When must a lug butterfly valve be used instead of a wafer one? Whenever the valve will be the end of a line, when one side has to be unbolted while the other stays pressurized, or when a spool has to be pressure tested with the valve in place. A wafer body has no threads of its own, so it cannot hold a flange on its own and cannot be dead ended.
Can a wafer butterfly valve be installed at the end of a pipe? No. The wafer body depends on both pipe flanges to compress it and to give the studs something to pull against. With one flange removed the joint opens and the valve is not restrained, which is a safety issue rather than a performance one.
Does the body style change the pressure rating? Not directly. The rating comes from the body wall, the flange class and above all the seat and disc design, which is why a triple offset wafer valve can carry a higher class than a concentric lug valve. Body style sets the installation rules, and seat design sets the pressure and temperature envelope.
