Flanged Triple Offset Butterfly Valve: High Performance Solution for Critical Industrial Applications

Introduction

In high-pressure industrial pipeline systems, valve reliability, sealing performance, and service life are key factors for safe operation. The Flanged Triple Offset Butterfly Valve is widely used in oil & gas, power generation, chemical, and industrial applications due to its advanced sealing design and excellent flow control capability.

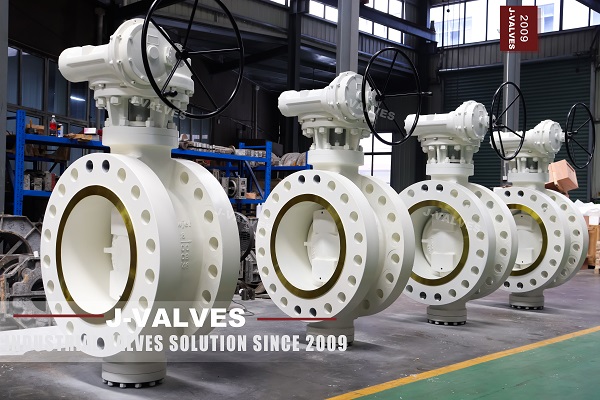

The valve shown is a WCB Flanged Triple Offset Butterfly Valve, designed for demanding applications requiring high pressure resistance and reliable shut-off performance.

J-VALVES specializes in manufacturing high-performance Triple Offset Butterfly Valves for global industrial projects.

1. Advanced Triple Offset Design

Unlike traditional butterfly valves, the Triple Offset Butterfly Valve adopts three-dimensional offset technology:

• First offset: shaft position is away from the valve centerline

• Second offset: shaft is positioned away from the sealing surface center

• Third offset: conical sealing geometry eliminates friction during operation

This design allows the disc to move away from the seat immediately after opening, reducing wear and extending valve service life.

2. Reliable Metal Sealing Performance

The triple offset structure provides a metal-to-metal sealing system with excellent performance.

Key advantages include:

• Bubble-tight shut-off

• Low operating torque

• Reduced seat damage

• High temperature resistance

Compared with traditional soft-seated butterfly valves, triple offset butterfly valves are more suitable for high-temperature and high-pressure applications.

3. Wide Range of Industrial Applications

Flanged Triple Offset Butterfly Valves are commonly used in:

• Oil and gas pipelines

• Power plants

• Chemical processing systems

• Steam applications

• Large diameter water and industrial pipelines

The compact structure and lightweight design make them an efficient alternative to some traditional valve solutions.

4. J-VALVES Advantages in Triple Offset Butterfly Valve Manufacturing

As a professional industrial valve manufacturer, J-VALVES provides customized butterfly valve solutions with reliable quality.

Professional Design Capability

J-VALVES triple offset butterfly valves are designed according to international standards, including:

• API 609

• ASME B16.34

• ISO 5752

Advanced Manufacturing Process

J-VALVES focuses on:

• High-quality WCB material selection

• Precision machining

• Advanced sealing surface processing

• Strict pressure and leakage testing

These processes ensure stable performance and long service life.

Conclusion

The Flanged Triple Offset Butterfly Valve provides an ideal solution for demanding pipeline applications requiring reliable shut-off, low maintenance, and long operational life. With advanced offset technology and metal sealing performance, it is widely used in critical industrial systems.

With professional manufacturing experience and strict quality control, J-VALVES delivers high-performance Triple Offset Butterfly Valve solutions for oil & gas, energy, chemical, and industrial applications worldwide.
