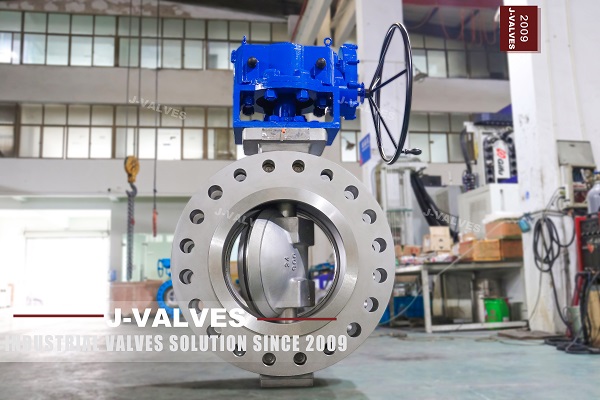

J-VALVES Triple Eccentric Flanged Butterfly Valve: Reliable Shutoff And Long Service Life for Critical Industrial Applications

Introduction

In modern industrial piping systems, valve reliability is essential for ensuring operational safety, minimizing maintenance costs, and maximizing process efficiency. Among various valve types, the Triple Eccentric Flanged Butterfly Valve has become a preferred solution for demanding applications involving high pressure, high temperature, and corrosive media.

Designed in accordance with API 609, ASME B16.34, ASME B16.5, and other international standards, the Triple Eccentric Flanged Butterfly Valve combines advanced sealing technology with robust mechanical construction. As a leading industrial valve manufacturer since 2009, J-VALVES provides high-performance triple eccentric butterfly valves that deliver dependable shutoff performance across a wide range of industries, including oil & gas, petrochemical, power generation, LNG, marine, and offshore platforms.

Key Features of J-VALVES Triple Eccentric Flanged Butterfly Valves

1. Zero-Leakage Sealing Performance

The metal-seated sealing system provides excellent shutoff capability under demanding operating conditions. The conical sealing structure ensures uniform contact pressure across the sealing surface, helping achieve reliable bidirectional sealing performance.

2. High Temperature Capability

Compared with soft-seated butterfly valves, triple eccentric butterfly valves can operate at significantly higher temperatures. They are suitable for steam systems, thermal oil pipelines, refinery units, and power plant applications.

3. Low Operating Torque

The friction-free operation of the triple offset design reduces opening and closing torque, allowing easier operation and improved actuator efficiency.

4. Long Service Life

Reduced seat wear results in fewer maintenance requirements and lower lifecycle costs. This makes the valve particularly valuable in continuous-process industries where downtime is expensive.

5. Flanged End Connections

Manufactured according to ASME B16.5 flange standards, the valve can be easily integrated into existing pipeline systems while providing secure and leak-free installation.

6. Corrosion-Resistant Construction

J-VALVES offers various material options, including:

• CF8M Stainless Steel

• WCB Carbon Steel

• Duplex Stainless Steel

• Super Duplex Stainless Steel

• Nickel Aluminum Bronze

These materials enable the valve to withstand aggressive chemicals, seawater, and harsh environmental conditions.

Advantages of J-VALVES Triple Eccentric Butterfly Valves

At J-VALVES, product quality begins with engineering excellence and strict manufacturing control. Every triple eccentric butterfly valve is designed and produced using advanced machining equipment and comprehensive quality assurance procedures.

Precision Manufacturing

All critical components are machined with high precision to ensure accurate alignment between the disc, shaft, and sealing surfaces. This contributes to superior sealing performance and smooth operation.

Comprehensive Testing

Each valve undergoes rigorous testing, including:

• Shell Pressure Testing

• Seat Leakage Testing

• Operational Torque Testing

• Dimensional Inspection

• Material Verification

Testing procedures comply with API and ASME requirements to guarantee reliability before shipment.

Customized Engineering Solutions

J-VALVES provides customized valve solutions for special operating conditions, including:

• High-pressure systems

• High-temperature service

• Offshore applications

• LNG terminals

• Corrosive chemical processes

Our engineering team works closely with customers to select the most suitable materials, pressure classes, and sealing configurations.

Successful Applications of J-VALVES Triple Eccentric Butterfly Valves

J-VALVES triple eccentric butterfly valves have been successfully supplied to customers in multiple international markets. One notable project involved large-diameter stainless steel triple eccentric butterfly valves installed in a petrochemical processing facility, where reliable shutoff and low maintenance requirements were critical.

In another offshore seawater handling project, J-VALVES provided corrosion-resistant butterfly valves that demonstrated excellent operational stability despite continuous exposure to aggressive marine environments. The valves achieved extended maintenance intervals and reduced operational costs for the end user.

Additionally, our valves have been widely used in power generation facilities for steam isolation systems, where high-temperature resistance and dependable sealing performance are essential for plant safety and efficiency.

Applications

J-VALVES Triple Eccentric Flanged Butterfly Valves are widely used in:

• Oil & Gas Pipelines

• Petrochemical Plants

• LNG Facilities

• Power Stations

• Marine and Offshore Platforms

• Water Treatment Systems

• Chemical Processing Plants

• Industrial Utility Networks

Conclusion

The Triple Eccentric Flanged Butterfly Valve represents one of the most advanced valve technologies available for critical industrial applications. Its friction-free sealing mechanism, low operating torque, excellent shutoff capability, and extended service life make it an ideal choice for challenging operating environments.

With extensive manufacturing experience, strict compliance with API 609 and ASME standards, and a proven record of successful global projects, J-VALVES continues to deliver reliable, high-performance Triple Eccentric Flanged Butterfly Valve solutions that help customers improve system safety, efficiency, and long-term operational reliability.
