In industrial fluid control systems, butterfly valves serve as important regulating and shut-off valves, widely used in the conveyance and control of various liquids, gases and steam. As a high-performance, corrosion-resistant type of butterfly valve, the C95800 triple eccentric wafer butterfly valve has become an ideal choice for fluid control under many demanding working conditions, thanks to its unique design and excellent material properties.

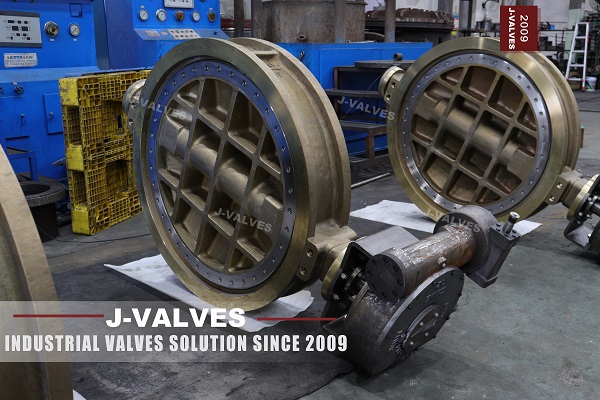

The C95800 triple eccentric wafer butterfly valve is a specially designed butterfly valve with its body made of C95800 aluminum bronze alloy, which features outstanding corrosion resistance, wear resistance and mechanical strength. The triple eccentric structure refers to the offset design among the valve body, disc and seat, creating a slight displacement between the disc and the seat during closing. This reduces friction between sealing surfaces, prolongs service life and enhances sealing performance.
The wafer structure is designed for connection between pipelines, enabling convenient installation with distinct advantages especially in space-constrained environments. The C95800 triple eccentric wafer butterfly valve is widely applied across various fluid control fields, particularly in environments requiring corrosion resistance, high temperature and high pressure.
The working principle of the C95800 triple eccentric wafer butterfly valve is based on its triple eccentric structure, which specifically includes:
First Eccentricity (Spool Eccentricity): The axis of the disc is offset from the center of the seat, minimizing friction between the disc and the seat.
Second Eccentricity (Disc Eccentricity): The center of the disc is offset from the sealing surface, reducing the compression force during closing and avoiding unnecessary wear.
Third Eccentricity (Sealing Eccentricity): The sealing surface is offset relative to the center of the seat. Upon closing, the sealing surfaces do not make direct contact but seal via smooth mating surfaces, which not only improves sealing performance but also extends service life.
During operation, the disc rotates 90 degrees to adjust the flow direction or rate of the fluid passing through the valve. The triple eccentric design minimizes friction between the disc and the seat during closing, slowing down wear and aging of sealing surfaces. This makes the C95800 triple eccentric wafer butterfly valve particularly suitable for frequent opening and closing applications.
C95800 aluminum bronze alloy offers exceptional corrosion resistance, performing excellently especially in marine environments, chemical media, acid and alkaline solutions, and other corrosive fluid applications. Its anti-corrosive properties ensure a long service life even in harsh conditions.
The triple eccentric structure allows smooth contact between the disc and sealing surface upon closing, improving sealing effectiveness and reducing sealing surface wear. With superior sealing performance, the valve maintains excellent tightness under high-temperature and high-pressure conditions, eliminating leakage risks.
The optimized flow passage design of the valve improves fluid passability and reduces pressure loss in flow. Its low-flow-resistance characteristic enables efficient control of large flow rates, suitable for high-flow industrial applications.
Reduced friction between the disc and seat due to the triple eccentric design results in a longer service life and lower maintenance requirements. This makes it highly suitable for long-running industrial applications demanding high reliability and low maintenance costs.
Featuring a compact structure, the valve is ideal for space-limited piping systems. Its wafer-type installation simplifies mounting without additional flange connections, saving installation space and lowering costs.
The thermal stability of C95800 aluminum bronze alloy allows the valve to operate in high-temperature environments, making it widely applicable to high-temperature and high-pressure fluid control systems in petrochemical, energy and other industries.
Benefiting from its unique performance advantages, the C95800 triple eccentric wafer butterfly valve is widely used in multiple industrial sectors, especially fluid control systems requiring corrosion resistance, high temperature resistance, high pressure resistance and high flow capacity. Typical application areas include:
Many fluids in chemical and petrochemical plants are highly corrosive or high-temperature media. The C95800 triple eccentric wafer butterfly valve effectively protects pipelines and equipment from such media damage, making it an ideal choice for chemical delivery systems due to its corrosion resistance and sealing performance.
The oil and gas sector often encounters harsh conditions such as high pressure, low temperature and corrosive fluids. The valve’s high corrosion resistance and thermal stability play a vital role in the extraction, transportation and storage of oil and gas, ensuring safe fluid conveyance.
C95800 aluminum bronze alloy provides excellent resistance to seawater corrosion, making the valve highly suitable for offshore platforms and subsea pipeline systems. It effectively withstands marine corrosion, maintaining long-term stable operation of the system.
The valve is also extensively applied in water treatment and environmental protection fields. Its corrosion resistance and sealing performance guarantee the safety and efficiency of fluid conveyance in water treatment processes, preventing environmental pollution caused by equipment failure.
In heating, ventilation and air conditioning (HVAC) systems, the C95800 triple eccentric wafer butterfly valve is commonly used for regulating air and water flow. Its compact design and high efficiency make it appropriate for high-performance, energy-saving building systems.
Outstanding corrosion resistance, especially for corrosive fluids and marine environments.
Triple eccentric design for improved sealing and wear resistance, extending service life.
High flow capacity with optimized flow passages reducing pressure loss.
Space and cost savings via compact structure and wafer installation.
Low maintenance requirements due to reduced friction between disc and seat.
With exceptional corrosion resistance, sealing performance and flow capacity, the C95800 triple eccentric wafer butterfly valve has become an essential component of fluid control systems across multiple industries. Whether in chemical, oil and gas, marine engineering, environmental protection or other sectors, it delivers efficient and reliable fluid control solutions, ensuring system safety, stability and long service life. As industrial demand for high-performance valves continues to grow, the C95800 triple eccentric wafer butterfly valve will keep playing a critical role in various demanding working conditions.
