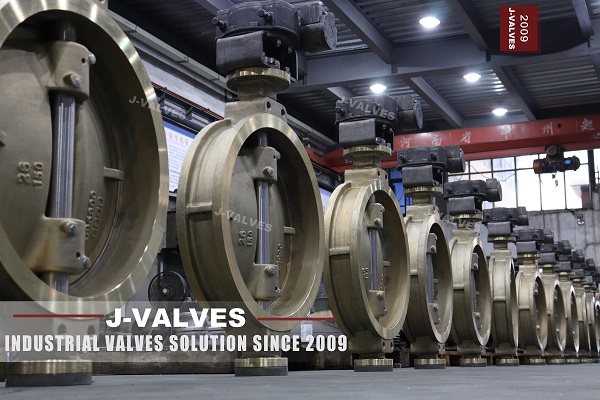

In fluid control systems, butterfly valves have become critical equipment due to their high efficiency and simple operation, especially for applications requiring precise flow and pressure regulation. The C95800 triple eccentric wafer butterfly valve is a high-performance butterfly valve with unique structural advantages, widely adopted across a variety of industrial sectors.
The C95800 triple eccentric wafer butterfly valve adopts an advanced triple eccentric structural design, delivering exceptional sealing performance and superior fluid control capability. The triple eccentric design eliminates direct friction between the disc and seat during opening and closing, reducing wear and leakage while extending the service life of the valve.
The triple offset construction ensures smooth contact between the valve body and seat, minimizing friction and avoiding direct contact between the disc and seat. This design not only lowers abrasion but also enhances tightness, enabling long-term and reliable valve operation.
The wafer configuration allows easy installation between pipeline flanges without complex welding procedures. Featuring light weight and compact dimensions, this valve design facilitates convenient transportation and on-site mounting.
C95800 nickel aluminum bronze alloy serves as the core material for valve manufacturing. Boasting outstanding corrosion resistance, wear resistance and high-temperature resistance, this alloy performs stably under harsh industrial conditions, maintaining structural integrity in high-temperature, high-pressure and corrosive medium environments.
The operating principle of the C95800 triple eccentric wafer butterfly valve centers on its proprietary triple eccentric structure. During opening and closing, gradual separation between the disc and seat avoids poor sealing issues commonly found in conventional butterfly valves caused by excessive closing pressure. Its working mechanism is summarized as follows:
Opening Process: As the valve starts to open, the disc rotates along the eccentric shaft, moving away from the valve seat progressively to expand the flow area and ensure smooth fluid passage.
Closing Process: When closing, the disc maintains slight clearance with the seat initially. Driven by the eccentric shaft, the disc gradually presses against the seat to achieve tight shutoff and prevent medium leakage.
Sealing Performance: Thanks to the triple eccentric design, contact pressure between the disc and seat is evenly distributed throughout operation. It eliminates friction and abrasion of conventional butterfly valves, greatly improving sealing tightness and service durability.
The inherent material properties of C95800 alloy make the valve ideal for fluid handling with high temperature and highly corrosive media, covering petrochemical, marine engineering and other demanding industries.
The triple eccentric structure enables accurate flow regulation. It maintains stable and efficient throttling performance even in large-flow and high-pressure pipeline systems.
Reduced disc-to-seat friction effectively lowers wear rates. The valve requires minimal upkeep, extending service cycles and cutting frequent repair and replacement costs.
The lightweight wafer design saves installation space, simplifies on-site assembly, and optimizes the overall operational efficiency of pipeline systems.
It provides bubble-tight sealing under extreme high-pressure and high-temperature working conditions, preventing fluid leakage and guaranteeing safe and stable system operation.
Petrochemical Industry: Widely used in harsh working conditions with high temperature, high pressure and strong corrosion. It is applied for fluid regulation in oil and gas extraction, transportation and chemical reaction processes.
Water Treatment: Deployed in waterworks for flow control and medium isolation, ensuring efficient system operation and preventing backflow of pollutants.
Marine Engineering: Offshore platforms and subsea pipeline systems require high-spec valves to withstand severe marine environments. The excellent anti-corrosion property of C95800 alloy delivers distinct operational advantages for marine applications.
HVAC Systems: Used for air and water flow regulation to adjust indoor temperature and humidity, balancing building comfort and energy-saving efficiency.
Power Industry: Applied to the control of steam, process water and coolant, with extensive utilization in cooling circulation systems of power plants.
With professional triple eccentric design, premium high-temperature and corrosion-resistant material properties, and reliable sealing performance, the C95800 triple eccentric wafer butterfly valve possesses broad application potential across diverse industrial fields. It not only realizes effective fluid regulation and leakage prevention to avoid environmental contamination, but also sustains stable long-term system operation.
With the continuous upgrading of industrial production demands, selecting high-quality butterfly valves such as the C95800 triple eccentric wafer model is a critical solution to enhance pipeline system reliability and reduce overall maintenance costs.
