Extreme working conditions usually refer to environments that exceed normal operating conditions, including high temperature, low temperature, high pressure, strongly corrosive media, high-flow impact, etc. These conditions impose extremely stringent requirements on the performance of BUTTERFLY VALVES. For example, in the petrochemical industry, BUTTERFLY VALVES need to maintain their sealing performance under high temperature and high pressure; in deep-sea oil and gas exploration, butterfly valves have to withstand the dual challenges of low temperature and seawater corrosion.
Material is the foundation that determines the performance of BUTTERFLY VALVES. Under extreme working conditions, the materials of butterfly valves must possess good corrosion resistance, high temperature resistance, and mechanical strength. Common high-performance materials include stainless steel (such as 316L), alloy steel (such as Inconel®), and special alloys (such as titanium alloys). For example, 316L stainless steel is widely used in seawater treatment and the chemical industry due to its excellent corrosion resistance and resistance to chloride corrosion.
Sealing performance is one of the core indicators of BUTTERFLY VALVES. Under extreme working conditions, the design of the sealing structure is particularly important. Hard-sealed butterfly valves are made of alloy steel or cemented carbide materials and achieve zero leakage through high-precision ground sealing rings, and can maintain a stable sealing effect even under high temperature and high pressure. Soft-sealed butterfly valves usually adopt materials such as polytetrafluoroethylene (PTFE). Although they have excellent sealing performance, they may have aging problems at high temperatures.

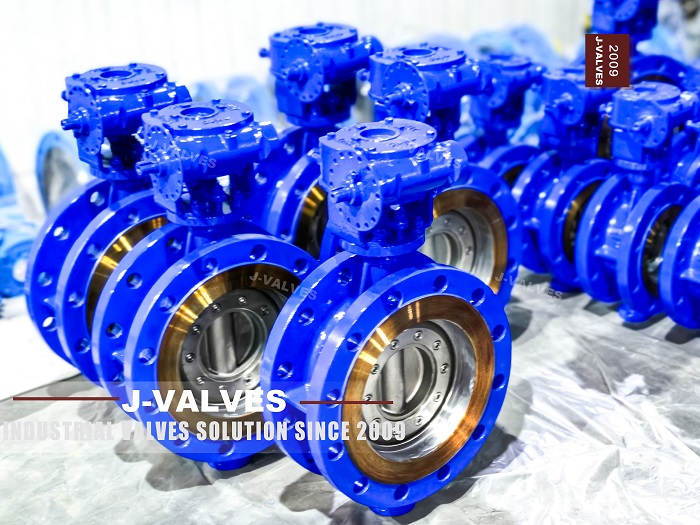

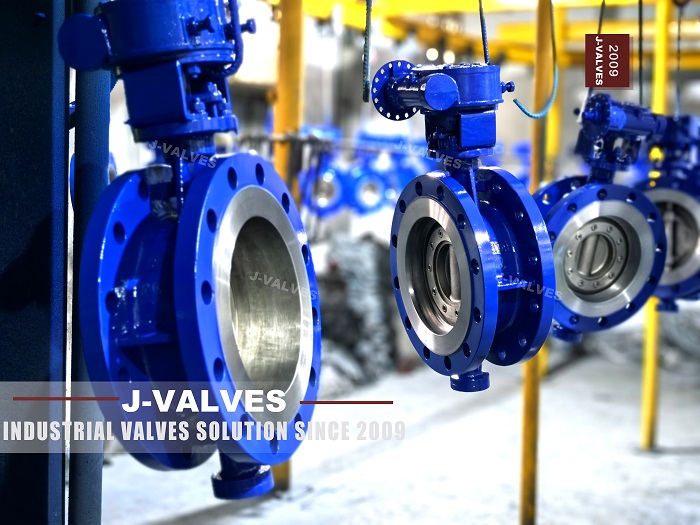

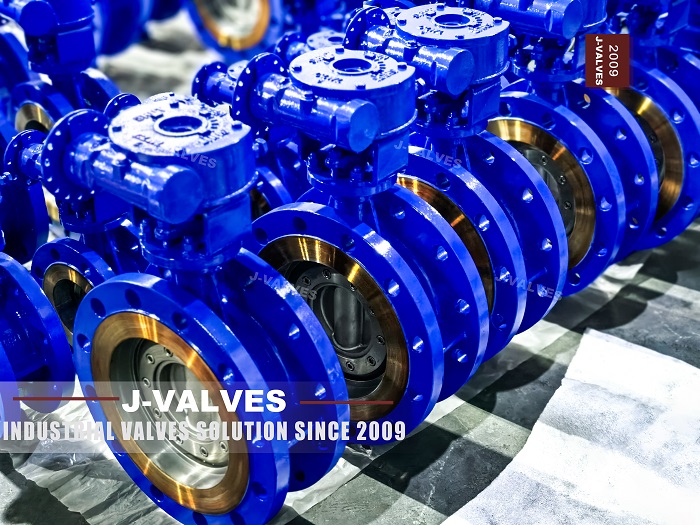

The mechanical structure of BUTTERFLY VALVES directly affects their operational flexibility and service life. The triple-offset butterfly valve is currently one of the most widely used high-performance butterfly valves. Its unique eccentric design enables the disc to have frictionless contact with the seat when closing, greatly reducing wear and extending the service life. In addition, double-offset butterfly valves can also maintain stable performance under high temperature and high pressure.
International standards (such as API 609, EN 12516) usually have stricter requirements for the performance of BUTTERFLY VALVES and cover more tests and certifications under extreme working conditions. For example, the API 609 standard requires that butterfly valves must pass strict fire tests and fugitive emissions tests to ensure safety and reliability under extreme working conditions. Domestic standards (such as GB/T 4213), on the other hand, focus more on the basic performance and universality of butterfly valves and have been constantly approaching international standards in recent years.
High-performance butterfly valves perform significantly better than ordinary butterfly valves under extreme working conditions. For example, the Fisher 8532 high-performance butterfly valve can maintain a tight shut-off under extreme pressure and temperature conditions and also has the capabilities of fire resistance and low-temperature application. In contrast, ordinary butterfly valves may have problems such as sealing failure or structural deformation under high temperature and high pressure.
To further improve the performance of BUTTERFLY VALVES under extreme working conditions, future designs will place more emphasis on material innovation and structural optimization. For example, the use of new composite materials and nanotechnology can significantly improve the corrosion resistance and wear resistance of butterfly valves. In addition, the emergence of intelligent butterfly valves also provides new solutions for applications under extreme working conditions. By integrating sensors and remote monitoring systems, intelligent butterfly valves can monitor changes in working conditions in real time and automatically adjust the valve state to ensure the safe operation of the system.
The performance of BUTTERFLY VALVES under extreme working conditions is a key factor in industrial applications. By comparing different types of design standards and butterfly valve structures, we can clearly see the advantages of high-performance butterfly valves in terms of sealing performance, corrosion resistance, and mechanical strength. With the development of materials science and intelligent manufacturing technology, the design of butterfly valves will be more adapted to the needs of extreme working conditions, providing a powerful guarantee for the safety and efficiency of industrial production.
When choosing BUTTERFLY VALVES, users should comprehensively consider factors such as materials, sealing structures, and mechanical properties according to the specific requirements of working conditions and choose high-performance butterfly valves that comply with international standards to ensure the stable operation of equipment under extreme conditions.
