Understanding Butterfly Valves in Water Treatment Systems

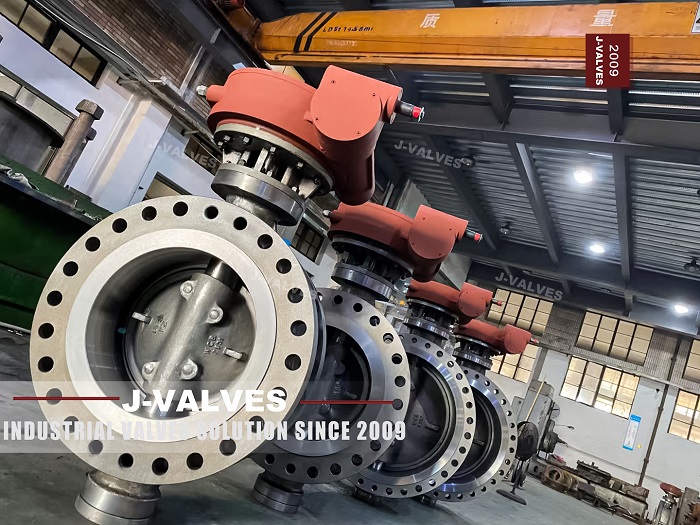

Butterfly valves are quarter-turn valves that use a flat disc mounted on a rotating stem to control the flow of fluids. The disc rotates to open or close the valve, and it remains in the flow path even when the valve is fully open. This design allows for quick and efficient flow control, making butterfly valves ideal for applications where frequent operation is required.
• Valve Body: The main structure of the valve that houses the disc and other internal components.
• Disc: The rotating element that controls the flow of fluid through the valve.
• Stem: The rotating shaft that connects the disc to the actuator or handle.
• Seal: The component that ensures a tight seal between the disc and the valve body to prevent leakage.
Corrosion-Resistant Materials for Butterfly Valves
Stainless steel is a popular choice for butterfly valves due to its excellent corrosion resistance, strength, and durability. It is particularly suitable for applications involving water, wastewater, and other mildly corrosive media. Common grades of stainless steel used in butterfly valves include:
• 304 Stainless Steel: Suitable for general-purpose applications and offers good corrosion resistance to water and mild acids.
• 316 Stainless Steel: Provides superior corrosion resistance, especially in environments containing chlorides, such as seawater and brackish water.
• 316L Stainless Steel: A low-carbon version of 316 stainless steel, which reduces the risk of carbide precipitation during welding and is ideal for applications requiring high weldability.
Duplex stainless steel combines the properties of austenitic and ferritic stainless steels, offering enhanced corrosion resistance and strength. It is particularly suitable for applications involving aggressive media, such as sulfuric acid and other strong acids. Common grades include:
• 2205 Duplex Stainless Steel: Offers excellent resistance to pitting and crevice corrosion, making it suitable for marine and industrial environments.
• 2507 Duplex Stainless Steel: Provides even higher corrosion resistance and strength, making it ideal for highly corrosive environments.
Nickel-based alloys, such as Inconel and Hastelloy, are used in butterfly valves for their exceptional resistance to corrosion and high-temperature performance. These alloys are suitable for applications involving highly corrosive media, such as acids, alkalis, and salts. Key features include:
• Inconel: Excellent resistance to a wide range of corrosive environments, including acids and alkalis.
• Hastelloy: High strength and excellent corrosion resistance, making it suitable for demanding applications.
Fluoropolymer-lined butterfly valves, such as those lined with PTFE (polytetrafluoroethylene) or PFA (perfluoroalkoxy), offer excellent chemical resistance and are suitable for applications involving highly corrosive media. These materials provide:
• PTFE: Excellent resistance to a wide range of chemicals, including acids, alkalis, and solvents.
• PFA: Similar to PTFE but with better mechanical properties and higher temperature resistance.
• Material: 304 or 316 Stainless Steel
• Advantages: Excellent corrosion resistance, durability, and ease of maintenance.
• Applications: Drinking water treatment, potable water distribution systems.
• Material: 316L Stainless Steel or Duplex Stainless Steel
• Advantages: Superior corrosion resistance in environments containing chlorides and other corrosive substances.
• Applications: Sewage treatment plants, industrial wastewater treatment.
• Material: Nickel-Based Alloys (Inconel, Hastelloy) or Fluoropolymer-Lined Valves (PTFE, PFA)
• Advantages: Exceptional resistance to strong acids, alkalis, and other highly corrosive media.
• Applications: Chemical processing plants, industrial water treatment systems involving aggressive chemicals.
Marine and Offshore Applications
• Material: 316L Stainless Steel or Duplex Stainless Steel
• Advantages: High resistance to seawater corrosion and excellent mechanical properties.
• Applications: Seawater treatment systems, offshore platforms.
