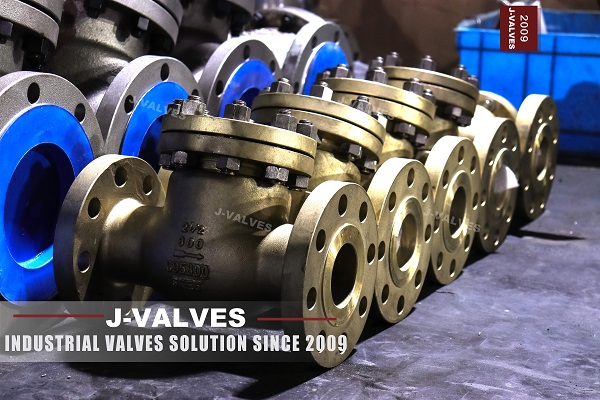

Nickel-aluminum bronze check valvesare key components widely used in fluid control systems, especially in marine, offshore engineering, chemical processing, and other highly corrosive environments. Made of nickel-aluminum bronze, they deliver excellent corrosion resistance and mechanical strength, enabling reliable performance under harsh operating conditions.
A Nickel-Aluminum Bronze Check Valve is a valve designed to prevent backflow of fluids. Its primary function is to close automatically when fluid attempts to flow in reverse, avoiding backflow in pipelines, equipment damage, pump cavitation, and other potential hazards. The use of nickel-aluminum bronze gives the check valve exceptional durability and service life in highly corrosive environments such as marine, chemical, and shipboard applications.
Nickel-aluminum bronze (Ni-Al-Bronze) is an alloy composed of nickel, aluminum, copper, and other elements, widely used in applications requiring high strength, corrosion resistance, and temperature resistance. Check valves made from this material offer superior seawater corrosion resistance, wear resistance, and oxidation resistance. It is particularly suitable for offshore platforms, ships, and other severe environments, effectively extending the service life of the valve.
Equipped with an internal disc and spring mechanism, the check valve closes automatically upon fluid backflow. This self-actuated closing mechanism requires no external operation, quickly and effectively preventing reverse flow and ensuring system safety and stability.
Nickel-aluminum bronze check valves typically feature a streamlined disc design, which improves flow efficiency and reduces pressure loss. The disc opens under forward fluid pressure and closes automatically when flow ceases, ensuring unidirectional flow within the system.
Nickel-aluminum bronze inherently offers good heat resistance, allowing the check valve to operate stably at elevated temperatures. Furthermore, it provides strong resistance to seawater, acidic media, and other corrosive fluids, maintaining high performance even in aggressive environments.
Nickel-aluminum bronze check valves are available in various connection types, including flanged and threaded connections. They can be flexibly adapted to different piping systems, with convenient installation and simple maintenance.
The operation of nickel-aluminum bronze check valves is based on unidirectional fluid flow. Under normal forward flow, fluid pressure pushes the disc open, allowing smooth passage through the pipeline. When reverse flow occurs, backpressure forces the disc closed, stopping fluid from flowing backward. This process requires no external actuation; the valve opens and closes automatically in response to natural fluid movement, fulfilling its non-return function.
Nickel-aluminum bronze provides exceptional corrosion resistance, especially in seawater, acidic, alkaline, and other corrosive fluid environments. Compared with other materials, it effectively extends valve service life and reduces maintenance costs caused by corrosion.
Nickel-aluminum bronze check valves can operate normally at relatively high temperatures, making them suitable for high-temperature fluid control systems across various industrial applications.
These check valves open and close automatically without external intervention, greatly improving the automation level of fluid control, reducing the need for manual operation, and lowering the risk of operating errors and system failures.
The streamlined disc design minimizes pressure drop across the valve, enhancing overall flow efficiency of the system.
Nickel-aluminum bronze exhibits strong wear resistance, making the valve suitable for frequent cycling and heavy-duty operating conditions, reducing the risk of valve failure or leakage due to wear.
Thanks to their outstanding performance and durability, nickel-aluminum bronze check valves are widely used across industries, especially in environments demanding high reliability, corrosion resistance, and temperature resistance. Major application areas include:
Offshore Engineering: Used in offshore oil platforms, ships, and subsea pipelines to prevent seawater backflow and equipment damage.
Chemical Industry: Controls unidirectional flow of corrosive fluids in chemical plants, preventing contamination and reverse flow.
Water Treatment: Applied in water treatment plants and supply systems to prevent backflow of water sources and ensure water quality safety.
Energy Industry: Used in petroleum, natural gas, and other energy sectors to avoid equipment damage caused by reverse flow.
When selecting a nickel-aluminum bronze check valve, the following factors should be considered:
Pressure and Temperature Class: Choose an appropriate valve model based on the system’s working pressure and temperature to ensure it can withstand operating conditions.
Material Compatibility: Select the suitable grade of nickel-aluminum bronze alloy according to the corrosiveness of the medium to guarantee corrosion resistance.
Installation Style: Choose the proper installation configuration, such as flanged or threaded connection, based on piping system requirements.
Maintenance Requirements: Prioritize designs that allow easy disassembly and cleaning for convenient maintenance.
With excellent corrosion resistance, high temperature resistance, and automatic operation, nickel-aluminum bronze check valves have become indispensable equipment in demanding environments. Whether in marine, chemical, energy, or water treatment industries, they provide safe and reliable fluid control, ensuring stable and continuous system operation.
