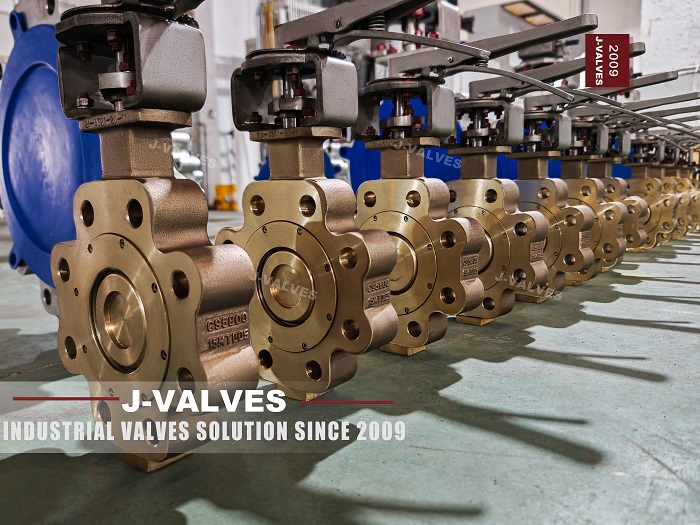

Comprehensive Analysis of J-VALVES Bronze Butterfly Valves: Material Characteristics, Diameter Selection And Application Scenarios

1. The basic parameters and product features of J-VALVES bronze butterfly valves are as follows:

Basic Parameters:

· Size Range: 2'' - 36'' (DN50 - DN900).

· Pressure Ratings: 150LB - 300LB / PN16 ~ PN40 / 10K ~ 20K.

· Materials: Including 316 CF8M/CF8/CF3M/CF3, A216 WCB, cast iron, cast steel, A352 LCB/LCC/Ti, etc.

· Temperature Range: -29ºC to 220ºC.

· Applicable Media: Water, steam, oil, natural gas, etc.

Product Features:

· High-Performance Design: Adopting the triple eccentric principle, it has excellent sealing performance with near-zero leakage.

· Corrosion Resistance: It is suitable for harsh environments such as seawater and corrosive media.

· Easy Operation: With a compact structure, it is flexible in operation and can be manually or electrically operated.

· Sealing Performance: Using PTFE or RPTFE sealing materials to ensure zero leakage.

· Torque Optimization: By changing the driving torque, the torque is optimized to reduce wear and leakage.

· Wide Applicability: It is applicable to various industrial pipeline systems, including water, steam, air, oil products, etc.

2. Comparison Table of Bronze Material Characteristics and Common Industrial Valve Materials

The comparison table of bronze material characteristics and common industrial valve materials is as follows:

Summary:

· Bronze material has good corrosion resistance and low-temperature resistance, and is suitable for corrosive media such as seawater and steam and low-temperature working conditions.

· Cast iron material has high mechanical strength and is suitable for high-pressure applications, but its corrosion resistance and temperature resistance are poor.

3. Selection Standards for Butterfly Valve Diameters and Flow/Pressure Correlation Table

The selection standards for butterfly valve diameters and the flow/pressure correlation are as follows:

Diameter Selection Standards:

· The diameter of the BUTTERFLY VALVE is usually consistent with the diameter of the pipeline. It is necessary to select the appropriate BUTTERFLY VALVE size according to the actual inner diameter of the pipeline.

· Flow demand is an important basis for selecting the diameter of the BUTTERFLY VALVE. It is necessary to calculate the flow required by the system and select the appropriate diameter.

· The pressure rating should be slightly higher than or equal to the maximum working pressure of the system to ensure safety.

· Material selection should consider the characteristics of the medium and the working environment.

Flow and Pressure Correlation:

· The flow range of butterfly valves with different diameters under specific pressure differences can be determined through charts. For example, a DN400 butterfly valve can reach a flow rate of 14,500 m³/h under a pressure difference of 100 kPa.

· Flow loss increases with the increase of pressure difference. It is necessary to calculate to determine the appropriate valve size to meet the system's pressure loss requirements.

· For different types of butterfly valves (such as center-line type, eccentric type), their flow characteristics are basically the same, but the processing complexity and sealing performance may be different.

Typical Specifications and Parameters:

· The common diameter range of butterfly valves is from DN50 to DN2600, and the pressure rating is from PN6 to PN16, with the highest working pressure ranging from 0.6 to 1.6 MPa.

· Under different pressure ratings, the size parameters (such as height, length, diameter, etc.) of butterfly valves will change. For example, a DN50 butterfly valve under the PN16 pressure rating has a height of 147 mm and a length of 43 m.

Special Applications:

· Wafer butterfly valves are suitable for large-diameter pipelines and are easy to install. They are often used in media systems such as water and sewage.

· Electric butterfly valves can adjust the flow through actuators and are suitable for remote control scenarios.

4. Core Demand Indicators for Butterfly Valve Performance in Different Application Scenarios

The core demand indicators for butterfly valve performance in different application scenarios are as follows:

General and Low-Pressure Applications: Applicable to water treatment, HVAC systems and low-pressure industrial processes, emphasizing the needs for easy operation, cost-effectiveness and frequent adjustment.

High-Temperature, High-Pressure and High-Sealing Requirements Scenarios: Such as in the fields of petroleum, chemical engineering, natural gas, etc., it is necessary to select butterfly valves that can withstand high temperature and high pressure, especially U-shaped butterfly valves and triple eccentric butterfly valves, which have excellent sealing performance and wear resistance.

Flow Regulation and Quick Opening and Closing: Center-line butterfly valves and high-performance butterfly valves are suitable for occasions requiring sensitive flow control, such as emergency shutdown or flow regulation; while double eccentric butterfly valves and triple eccentric butterfly valves are suitable for quick opening and closing operations.

Corrosive Media and Special Working Conditions: In harsh environments such as acids, alkalis and corrosive chemicals, lined butterfly valves (such as those with rubber or plastic linings) can provide reliable sealing performance.

Large-Diameter Pipeline Applications: Butterfly valves perform excellently in large-diameter pipelines with DN300 and above, and are suitable for scenarios requiring large-flow gas transmission such as pneumatic conveying systems and ventilation systems.

Economy and Easy Maintenance: For scenarios such as commercial complexes or office buildings, variable air volume butterfly valves are favored due to their economy, easy maintenance and tolerance to air volume fluctuations.

Applications in Vacuum Environments: Vacuum butterfly valves need to meet the requirements of low pressure loss and high-precision control, and the fuzzy PID control algorithm can improve their pressure control performance.

Durability in Special Working Conditions: In special working conditions such as nuclear power plants, butterfly valves need to have high-strength sealing, durability and low-torque operation capabilities.

5. Comparison of Butterfly Valve Selection Cases in Typical Industrial Scenarios

In typical industrial scenarios, the selection of butterfly valves needs to be comprehensively considered according to specific working conditions, medium characteristics, pressure, temperature, flow demand and control requirements. The following are some comparison cases of butterfly valve selection in typical industrial scenarios:

WAFER BUTTERFLY VALVE

· Applicable Scenarios: Suitable for occasions requiring quick opening and closing, such as fire protection systems and emergency shut-off valves. It has a compact structure and is easy to install, and is suitable for pipeline systems with limited space.

· Features: Wafer butterfly valves usually adopt soft or hard sealing designs, have good sealing performance and corrosion resistance, and are suitable for media such as water, steam, oil products.

FLANGE BUTTERFLY VALVE

· Applicable Scenarios: Widely used in water treatment, chemical engineering, petroleum and other fields, especially in occasions requiring frequent maintenance or replacement.

· Features: Flange butterfly valves have high sealing performance and pressure resistance, are suitable for high-temperature and high-pressure environments, but the installation is relatively complicated and requires flange connection.

TRIPLE ECCENTRIC BUTTERFLY VALVE

· Applicable Scenarios: Suitable for the control of high-temperature, high-pressure and corrosive media, such as in the petrochemical industry and large industrial projects.

· Features: Triple eccentric butterfly valves adopt an eccentric shaft design, have a low friction coefficient and a long service life, and at the same time have good sealing performance and corrosion resistance.

ELECTRIC BUTTERFLY VALVE

· Applicable Scenarios: Suitable for industrial scenarios requiring remote control and automated operation, such as urban water supply systems and fluid control systems in large factories.

· Features: Electric butterfly valves are easy to operate, have a fast response speed, and are suitable for flow regulation and precise control requirements, but the cost is relatively high.

SOFT SEALING BUTTERFLY VALVE

· Applicable Scenarios: Suitable for corrosive media and low-pressure pipelines, such as acid-base pipelines and sewage discharge systems.

· Features: Soft sealing butterfly valves adopt rubber or plastic sealing materials, have good sealing performance and corrosion resistance, but the sealing life is relatively short and needs to be regularly replaced.

HIGH-PERFORMANCE BUTTERFLY VALVE

· Applicable Scenarios: Suitable for high-end industrial fields with high requirements for control accuracy and service life, such as nuclear power plants and petrochemical projects.

· Features: High-performance butterfly valves adopt advanced design and manufacturing processes and have excellent sealing performance and the ability to withstand high temperature and high pressure.

PNEUMATIC BUTTERFLY VALVE

· Applicable Scenarios: Suitable for industrial fluid control systems requiring quick opening and closing, such as gas transmission and steam regulation.

· Features: Pneumatic butterfly valves are easy to operate, have a fast response speed, and are suitable for applications in harsh working conditions.

The selection of different types of butterfly valves in industrial scenarios needs to be evaluated in combination with specific requirements. For example, wafer butterfly valves can be selected for occasions requiring quick opening and closing; triple eccentric butterfly valves or high-performance butterfly valves can be selected for high-temperature and high-pressure environments; and electric butterfly valves or pneumatic butterfly valves can be given priority in scenarios with high requirements for automated control. Through reasonable selection, the operation efficiency and safety of the system can be improved.
