Pressure Rating And Flow Optimization in Basket Strainers

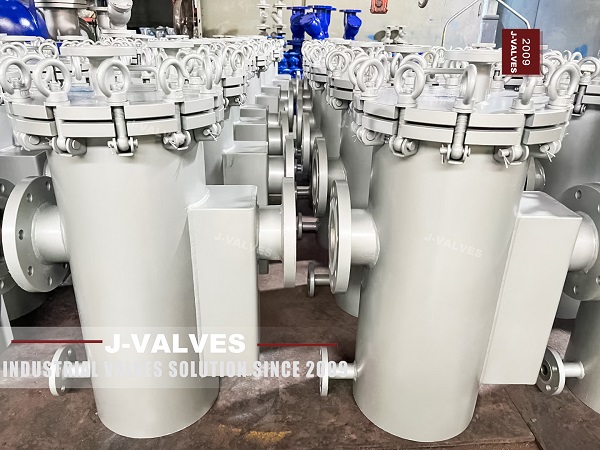

Basket strainers are critical components in industrial piping systems, designed to protect pumps, valves, heat exchangers, and other equipment from debris and particulate contamination. To maximize efficiency and safety, two primary considerations are essential: pressure rating and flow optimization. Proper design and maintenance ensure reliable operation, reduced downtime, and energy efficiency.

1. Understanding Pressure Rating in Basket Strainers

What is Pressure Rating?

The pressure rating of a basket strainer defines the maximum allowable working pressure (MAWP) at a given temperature. Exceeding this pressure can lead to:

• Structural failure of the strainer body

• Leakage or seal damage

• System downtime and operational hazards

Key Standards

• ANSI/ASME B16.34: Provides pressure-temperature ratings for industrial valves and strainers.

• API 610/600: Offers additional guidance for chemical and petrochemical systems requiring high reliability.

Factors Influencing Pressure Rating

1. Body Material: Carbon steel, stainless steel, and bronze (e.g., C95800) offer different pressure tolerances.

2. Temperature: Pressure rating decreases with increasing operating temperature.

3. Strainer Size: Larger diameters may require thicker walls or reinforced structures.

4. Fluid Type: Corrosive fluids necessitate more durable materials to maintain pressure integrity.

2. Flow Optimization Principles

While basket strainers provide protection, improper design can cause pressure drop and reduce system efficiency.

Key Considerations

1. Strainer Mesh Size

• Finer mesh captures more debris but increases resistance to flow.

• Coarser mesh reduces pressure drop but allows larger particles to pass.

2. Basket Design and Surface Area

• A larger basket area reduces the velocity of fluid through the mesh, minimizing pressure drop.

• Cylindrical or conical baskets can enhance debris collection without restricting flow.

3. Flow Path

• Smooth internal surfaces and direct flow paths reduce turbulence.

• Avoid sharp bends upstream or downstream of the strainer.

4. Bypass Options

• Critical systems may include parallel bypass lines to maintain flow during cleaning or maintenance.

3. Pressure Drop Analysis

Pressure drop across a basket strainer is influenced by:

• Flow rate

• Mesh size and basket area

• Accumulated debris

Example

For a water system operating at 300 GPM:

• A coarse 20-mesh basket might produce 2 psi drop initially.

• A fine 60-mesh basket could produce 6–8 psi drop, which can double if clogged.

Optimization Tip: Select a basket with a flow coefficient (Cv) 20–30% higher than the maximum system requirement to minimize energy loss and prevent excessive pressure drop.

4. Material Selection and Pressure Rating

5. Maintenance for Flow Efficiency

• Regular Cleaning: Remove debris to maintain low pressure drop.

• Pressure Monitoring: Use differential pressure gauges to detect clogging.

• Mesh Inspection: Replace worn or damaged screens to prevent performance loss.

• Scheduled Maintenance: Reduce downtime with planned inspection intervals.

6. Conclusion

Optimizing pressure rating and flow in basket strainers ensures:

• Safe operation under designed pressures

• Minimal pressure drop for energy-efficient systems

• Extended strainer life and reduced maintenance costs

By carefully selecting materials, mesh size, and basket design, and incorporating monitoring and maintenance strategies, engineers can achieve reliable and high-efficiency filtration in any industrial piping system.
