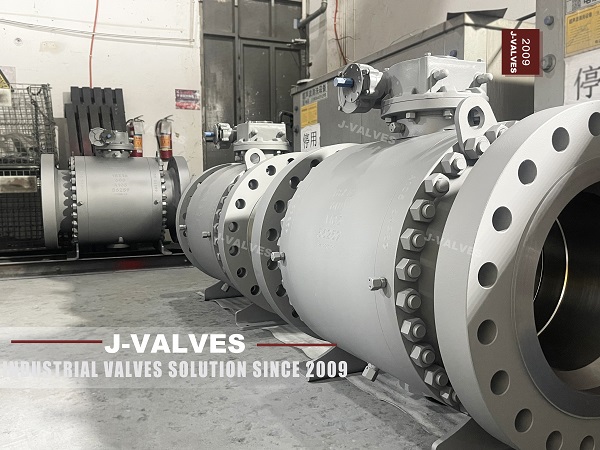

Ball Valves: Design Standards and Performance
Ball valves are quarter-turn valves that use a spherical ball to control the flow of fluids. The ball has a hole through the middle, and when the valve is open, the hole aligns with the pipeline, allowing fluid to pass through. When the valve is closed, the solid part of the ball blocks the flow. This design allows for quick and efficient flow control, making ball valves ideal for applications requiring frequent operation.
1. API 608: This standard, published by the American Petroleum Institute, specifies the requirements for steel ball valves. It covers design, materials, testing, and marking, ensuring that ball valves meet the necessary safety and performance criteria.
2. ISO 17292: This international standard specifies the requirements for ball valves, including design, materials, testing, and marking. It ensures global consistency and compatibility.
3. ANSI/ASME B16.34: This standard provides comprehensive guidelines for the design, materials, and testing of valves used in various industrial applications. It includes detailed pressure-temperature ratings and dimensional requirements.
Ball valves are designed to handle a wide range of pressures, typically from low-pressure applications up to high-pressure systems. Common pressure ratings for ball valves include:
• Class 150: Suitable for lower pressure applications, typically up to 2.5 MPa.
• Class 300: Suitable for medium-pressure applications, typically up to 5.0 MPa.
• Class 600 and Above: Suitable for high-pressure applications, typically up to 10 MPa or higher.
Ball valves are known for their excellent sealing performance, providing zero leakage when fully closed. The sealing mechanism involves the ball pressing firmly against the seats, ensuring a tight seal. Modern ball valves often use resilient seats made from materials like PTFE (polytetrafluoroethylene) or other advanced polymers, which enhance sealing performance and durability.
• Sealing Performance: Ball valves are designed to achieve zero leakage, making them suitable for applications requiring tight shutoff.
• Material Selection: Common materials include stainless steel, carbon steel, and alloy steel, chosen for their strength, durability, and resistance to corrosion.
• Operation: Ball valves are typically operated manually, pneumatically, or electrically, with quick quarter-turn operation.
Gate Valves: Design Standards and Performance
Gate valves are linear motion valves that use a gate or wedge to control the flow of fluids. The gate moves perpendicular to the flow direction, allowing for precise control and reliable sealing. When fully open, the gate is retracted into the valve body, providing an unobstructed flow path. This design makes gate valves suitable for applications requiring full flow and minimal pressure drop.
API 600: This standard, published by the American Petroleum Institute, specifies the requirements for steel gate valves. It covers design, materials, testing, and marking, ensuring that gate valves meet the necessary safety and performance criteria.
2. ANSI/ASME B16.34: This standard provides comprehensive guidelines for the design, materials, and testing of valves used in various industrial applications. It includes detailed pressure-temperature ratings and dimensional requirements.
3. ISO 5208: This international standard specifies the requirements for industrial valves, including gate valves. It covers design, materials, testing, and marking, ensuring global consistency and compatibility.
Gate valves are designed to handle high pressures and temperatures, making them suitable for demanding industrial environments. Common pressure ratings for gate valves include:
• Class 150: Suitable for lower pressure applications, typically up to 2.5 MPa.
• Class 300: Suitable for medium-pressure applications, typically up to 5.0 MPa.
• Class 600 and Above: Suitable for high-pressure applications, typically up to 10 MPa or higher.
Gate valves are designed to provide excellent sealing performance, with tight shutoff capabilities. The sealing mechanism involves the gate pressing firmly against the seats, ensuring a tight seal. Modern gate valves often use resilient seats made from materials like PTFE (polytetrafluoroethylene) or other advanced polymers, which enhance sealing performance and durability.
• Sealing Performance: Gate valves are designed to achieve zero leakage, making them suitable for applications requiring tight shutoff.
• Material Selection: Common materials include carbon steel, stainless steel, and alloy steel, chosen for their strength, durability, and resistance to corrosion.
• Operation: Gate valves are typically operated manually, pneumatically, or electrically, with linear motion to open and close the valve.
