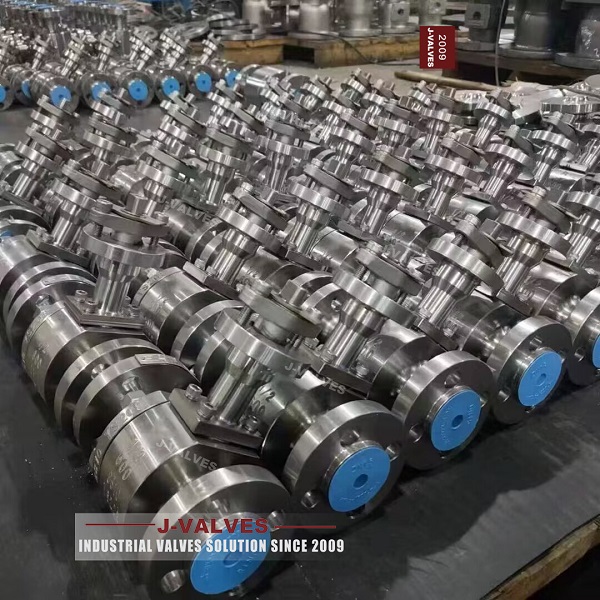

Understanding Pressure Ratings
Ball valves are categorized by their pressure ratings, which indicate the maximum pressure they can safely handle. Common pressure ratings include:
• Class 150: Suitable for low to moderate pressure applications, typically up to 285 psi (19.7 bar) at 100°F.
• Class 300: Designed for higher pressure applications, up to 740 psi (50.7 bar) at 100°F.
• Class 600: High-pressure applications, capable of handling pressures up to 1480 psi (101.4 bar) at 100°F.
• Class 900 and above: Extremely high-pressure applications, suitable for pressures exceeding 1480 psi (101.4 bar).
The design of ball valves must align with their intended pressure ratings to ensure safety and reliability. Key design considerations include:
• Material Selection: High-pressure ball valves often use stronger materials such as stainless steel or alloy steels to withstand higher pressures.
• Wall Thickness: Thicker walls are necessary for higher pressure ratings to prevent deformation and ensure structural integrity.
• Seal Materials: High-performance seal materials like PTFE or ceramic coatings are used to maintain tight shutoff under high pressure.
• Testing Protocols: Rigorous hydrostatic and pneumatic tests are conducted to verify the valve's ability to handle the specified pressure.
Applications Across Pressure Ratings
Low-Pressure Applications (Class 150)
• Residential and Commercial Plumbing: Class 150 ball valves are commonly used in residential and commercial plumbing systems where pressures are relatively low.
• Light Industrial Use: These valves are also used in light industrial applications where moderate pressure control is required.
Medium-Pressure Applications (Class 300)
• Chemical Processing: Class 300 ball valves are used in chemical processing plants where higher pressures are common.
• Water Treatment Plants: These valves are ideal for water treatment applications where reliable shutoff and flow control are essential.
High-Pressure Applications (Class 600 and above)
• Oil and Gas Pipelines: High-pressure ball valves are crucial in oil and gas pipelines where pressures can reach extreme levels.
• Power Generation: In power plants, high-pressure ball valves ensure reliable flow control and shutoff in critical systems.
API 6D is a widely recognized standard for pipeline valves, including ball valves. It specifies detailed requirements for design, materials, dimensions, and testing to ensure reliability and safety in high-pressure applications.
ISO 10497 provides comprehensive guidelines for the design and testing of ball valves, ensuring they meet stringent performance criteria. This standard is particularly relevant for valves used in critical applications such as oil and gas pipelines.
ASME B16.34 covers the design, materials, and testing requirements for a wide range of valves, including ball valves. It ensures that valves are suitable for various pressure ratings and applications.
| Feature | Class 150 | Class 300 | Class 600 | Class 900 and above |
| Pressure Rating | Up to 285 psi (19.7 bar) | Up to 740 psi (50.7 bar) | Up to 1480 psi (101.4 bar) | Exceeding 1480 psi (101.4 bar) |
| Material | Stainless steel, alloy steels | Stainless steel, alloy steels | Stainless steel, alloy steels | High-strength alloy steels |
| Wall Thickness | Thinner walls | Moderate thickness | Thicker walls | Very thick walls |
| Seal Materials | PTFE, rubber | PTFE, ceramic coatings | PTFE, ceramic coatings | High-performance seals |
| Applications | Residential, commercial plumbing | Chemical processing, water treatment | Oil and gas pipelines, power generation | High-pressure industrial applications |
