ASME Standards: Design Specifications And Technical Requirements for Check Valves And Gate Valves

ASME Standards for Valves

ASME B16.34: Valves–Flanged, Threaded, and Welding End

ASME B16.34 is a comprehensive standard that covers the design, materials, pressure-temperature ratings, and testing requirements for a wide range of valves, including gate valves and check valves. This standard ensures that valves are designed to withstand the rigors of industrial use and provides guidelines for their safe and reliable operation.

ASME B16.10: Face-to-Face and End-to-End Dimensions of Valves

ASME B16.10 specifies the face-to-face and end-to-end dimensions for various types of valves, including gate valves and check valves. Ensuring that valves meet these dimensional requirements is crucial for proper installation and compatibility within piping systems.

ASME B16.5: Pipe Flanges and Flanged Fittings

For valves with flanged connections, ASME B16.5 provides detailed specifications on flange dimensions, tolerances, and materials. This standard ensures that flanged valves are compatible with other components in flanged piping systems.

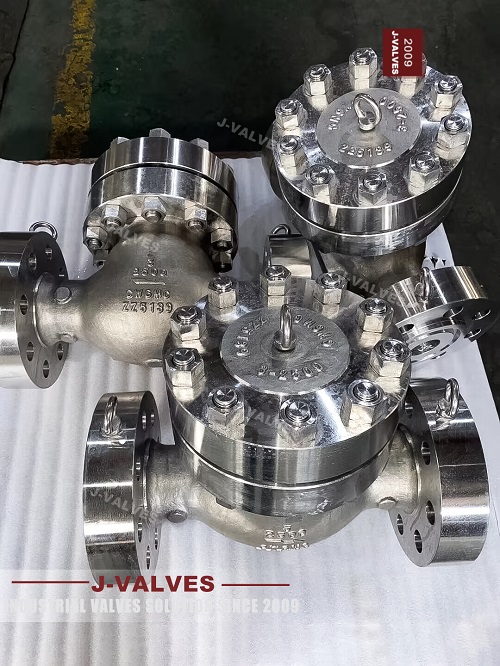

Design Specifications for Check Valves

API 594: Check Valves

API 594 is a widely accepted standard for check valves, covering design, materials, dimensions, pressure-temperature ratings, and testing requirements. It ensures that check valves provide reliable shutoff and prevent backflow in various industrial applications.

Key Design Elements

• Wedge Gate Design: Check valves typically feature a wedge-shaped gate that compresses against the seat to create a tight seal, ensuring minimal leakage and reliable shutoff.

• Seat Material: The choice of seat material is crucial for achieving a tight seal. Common materials include resilient materials like PTFE or metal-to-metal seats, depending on the application requirements.

• Pressure and Temperature Ratings: Check valves are designed to handle a wide range of pressures and temperatures, ensuring their suitability for various industrial applications.

• Testing Protocols: Comprehensive testing, including hydrostatic and pneumatic tests, is conducted to verify the valve's integrity and performance.

Design Specifications for Gate Valves

API 600: Gate Valves

API 600 is a primary standard for gate valves, particularly in the oil and gas industry. It specifies requirements for design, materials, and testing to ensure reliability and safety.

Key Design Elements

• Parallel Slide Design: Gate valves often feature a parallel slide design, which allows for smooth operation and reliable shutoff. This design ensures minimal wear and tear on the valve components.

• Materials: Gate valves are typically made from high-strength materials such as carbon steel, stainless steel, and alloy steels to ensure durability and corrosion resistance.

• Pressure and Temperature Ratings: Gate valves are designed to handle high pressures and a wide range of temperatures, making them suitable for demanding industrial applications.

• Testing Protocols: Rigorous testing, including hydrostatic and pneumatic tests, is conducted to ensure the valve's ability to maintain pressure containment and prevent leakage.
