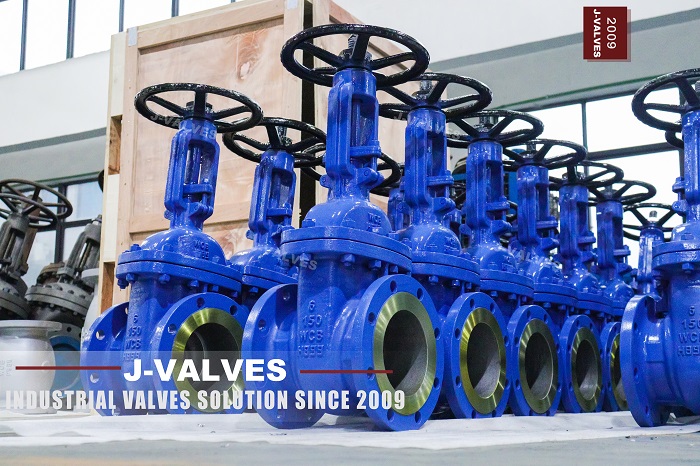

In petroleum, natural gas and chemical industries, 6-inch Class 150 WCB carbon steel flanged gate valves are among the most commonly used pipeline isolation equipment. Yet do you know that valves marked as standard-compliant may perform vastly differently in high-pressure service?
ASME B16.34 and API 600 are two core standards for industrial valves with totally different positioning: the former sets the general safety baseline, while the latter serves as an upgraded specification for severe working conditions. This article clarifies their actual discrepancies in high-pressure environments with plain technical explanations and comparison charts.
Full name: Flanged, Threaded and Welded End Valves, regarded as the fundamental standard for industrial valves. It specifies pressure-temperature ratings, minimum wall thickness and basic material requirements for nearly all valve types including gate valves, globe valves, ball valves and butterfly valves.
Core Features
Wide coverage: applicable to all valve types and diverse materials
Basic safety guarantee: defines minimum safety criteria for pressure vessels
Good interchangeability: enables compatible installation of valves from different manufacturers
Full name: Steel Bolted Bonnet Gate Valves for Petroleum and Natural Gas Industries, specially formulated for high-pressure and highly corrosive environments in oil & gas sectors. It is exclusively applicable to steel bolted bonnet gate valves with far stricter requirements than ASME B16.34.
Core Features
Thicker structure: wall thickness 20%-30% higher than B16.34 with corrosion allowance
Stringent control: full-range supervision on materials, tests and technical documents
Fire-resistant performance: mandatory compliance with API 607 fire safety test
In short, ASME B16.34 ensures valves are functional, while API 600 guarantees long-term reliable operation in harsh environments.
Comparison Items | ASME B16.34 Certified | API 600 Certified | Impact on High-Pressure Service |
Applicable Valve Types | All valve types | Only steel bolted bonnet gate valves | API 600 features targeted design for gate valves |
Valve Body Wall Thickness | Minimum wall thickness calculated per pressure vessel formula | 20%-30% thicker than B16.34 plus corrosion allowance | Superior resistance to metal thinning under high pressure and corrosion |
Stem Diameter | Standard dimension | Reinforced design with higher torsion resistance | Smoother operation and less jamming under large pressure difference |
Sealing Surface Requirements | Soft sealing such as PTFE allowed | Mandatory metal-to-metal sealing (13Cr/Stellite) | Soft seals tend to fail at high temperature and pressure; metal sealing delivers higher stability |
Material Restrictions | Over 50 material groups including cast iron and brass | Limited to carbon steel, low alloy steel and stainless steel (WCB/WC6/CF8M) | Eliminates brittle materials to avoid rupture risks under high pressure |
Non-Destructive Testing (NDT) | Only visual inspection for standard valves | 100% radiographic testing (RT) plus magnetic particle/penetrant testing for valve bodies | Detects casting defects in advance and eliminates high-pressure leakage risks |
Shell Pressure Test | 1.5 times rated pressure, held for 1-2 minutes | 1.5 times rated pressure, held for 5 minutes | Longer pressure holding period verifies structural integrity effectively |
Seat Sealing Test | 1.1 times rated pressure, slight leakage permitted | 1.1 times rated pressure, zero leakage standard | Ensures absolute tightness and prevents medium outflow under high pressure |
Operational Cycle Test | No mandatory requirements | 5-10 full-stroke opening & closing cycles | Verifies stable matching between gate disc and valve seat under high pressure |
Fire Safety Test | Not required | Mandatory API 607 fire test (1475°F for 30 minutes) | Maintains sealing performance after fire accidents and meets petrochemical safety codes |
Quality Documents | Simple Type A certificate | Detailed Type B declaration + full material traceability | Essential for high-pressure project audit and full lifecycle management |
Typical Application Scenarios | Power plants, water treatment, general chemical projects | Refineries, oil & gas pipelines, high-pressure hydrogen service equipment | API 600 is the safest choice for high-pressure working conditions |
Wall Thickness Gap Equals Safety Margin Gap
At Class 150 (rated pressure approx. 285 psi), the wall thickness specified by B16.34 merely meets the theoretical anti-burst standard. API 604 adds extra corrosion allowance, considering that hydrogen sulfide and acidic media in high-pressure pipelines will erode metal gradually.
Analogy: B16.34 valves are like standard anti-theft doors, while API 600 valves are reinforced vault doors, which will not fail due to wall thickness attenuation after years of service.
Testing Standard Gap Equals Reliability Gap
Tests under B16.34 are basic factory inspections, while API 600 tests are extreme condition verifications:
Longer pressure holding time easily exposes tiny cracks
Strict zero-leakage standard avoids potential severe accidents caused by minor leakage
Additional high-temperature fire test ensures stable performance in extreme emergencies
Material Standard Gap Equals Fault Tolerance Gap
ASME B16.34 allows cast iron and other brittle materials for low-pressure valves, which are completely forbidden by API 600. Tiny flaws in brittle materials may expand rapidly and lead to catastrophic rupture under high pressure.
Project Scenarios | Recommended Standard | Reasons |
High-pressure crude oil pipelines in refineries | API 600 | Resists both corrosion and high pressure with thickened structure and zero leakage performance |
Steam condensate systems in power plants | ASME B16.34 | Mild working conditions with higher cost-effectiveness |
Long-distance natural gas transmission pipelines | API 600 | High pressure plus flammable medium requires mandatory fire resistance certification |
Circulating water systems in ordinary factories | ASME B16.34 | Low-pressure clean water service needs no overdesign |
Key isolation points of chemical plants | Dual certification (B16.34 + API 600) | Balances universal interchangeability and operational reliability |
Important Note: API 600 valves fully comply with ASME B16.34 pressure-temperature ratings and can replace B16.34 valves compatibly, but the reverse replacement is not feasible.
1.Read the Nameplate, Not Just the Size and Rating
Demand explicit marking of "API 600" or "ASME B16.34"; avoid vague "meets US standards" claims
2.Request Certificates, Not Just a Pass Certificate
API 600 valves should come with material heat lot traceability, NDT reports, and API 607 fire-test certification
3.Weigh the Valve—Quick Authenticity Check
An API 600 valve is 20–30% heavier than its B16.34 equivalent; suspiciously light valves may indicate corner-cutting
4.Don't Save Money on High-Pressure Service
API 600 valves cost 15–25% more upfront, but the cost of one high-pressure leak far exceeds the price difference
ASME B16.34 is the universal basic standard for industrial valves ensuring fundamental safety and interchangeability, while API 600 is the specialized high-grade standard for high-pressure gate valves with comprehensive upgrades in wall thickness, material selection, performance tests and fire safety.
For 6-inch 150LB WCB flanged gate valves applied in high-pressure oil, gas, chemical, high-temperature and corrosive working conditions, API 600 certification is not an optional choice but a must-have requirement. The gap between the two standards is not slight performance difference, but the decisive factor for stable and safe operation over a decade.
