In a high pressure natural gas station, a valve must do more than simply open and close. It has to handle pressure surges, vibration, frequent cycling, and long-term operation without losing stability.
For a large-size, high-pressure application such as DN400 PN63, a standard ball valve may still work in basic service, but it is often not the best choice when impact resistance and long-term reliability really matter.

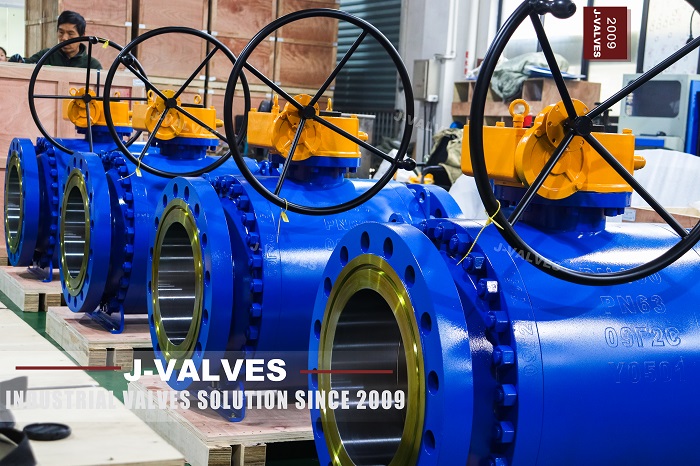

That is where an API6D certified 09Г2C trunnion ball valve becomes a better fit.
In simple terms, a standard ball valve is more like a general-purpose option, while a trunnion ball valve is built for tougher pipeline conditions.
Item | Standard Ball Valve | API6D Certified DN400 PN63 09Г2C Trunnion Ball Valve |
Ball support | Ball depends more on line pressure | Ball is mechanically supported from both sides |
Pressure suitability | Better for lower or moderate pressure | Better for high pressure pipeline service |
Impact resistance | Average | Stronger under pressure fluctuations |
Operating stability | Torque can vary more in large sizes | Smoother and more stable operation |
Sealing behavior | Seats may wear faster under harsh service | More consistent sealing and longer life |
Large-bore performance | Less ideal in very large sizes | Better suited for DN400 applications |
Application fit | General industrial use | Natural gas stations and pipeline systems |
This comparison shows that the trunnion design is not just a small improvement. It is a more suitable design for demanding high-pressure service.
A standard floating ball valve depends on line pressure to push the ball toward the seat. When pressure changes, the load changes too.
A trunnion ball valve is mechanically supported, so the ball stays more stable under pressure.
That means less movement, less stress, and better resistance to sudden load changes.
With a large valve like DN400, unstable loading can lead to higher torque, uneven seat wear, or mechanical fatigue.
A trunnion structure helps keep the ball centered and the load balanced, which reduces impact-related damage.
In a high pressure natural gas station, smooth operation is very important.
If the valve experiences too much shock during opening or closing, it can affect the actuator, the seat, and the overall system reliability.
A trunnion ball valve usually provides more controlled operation and less mechanical shock.
09Г2C is a low-alloy structural steel commonly used in pressure equipment and engineered systems. It is valued for its strength, toughness, and weldability.
In this type of application, that means:
better pressure resistance
improved toughness against impact loads
good manufacturability
reliable long-term service
So the better performance comes from both the structure and the material.
Standard ball valves are not bad valves. They are just designed for different conditions.
They work well in normal piping systems, moderate pressure service, and applications with less frequent operation.
However, high pressure natural gas stations often involve:
pressure fluctuations
pipeline vibration
frequent cycling
large diameter valves
stricter safety requirements
Under those conditions, a standard ball valve may face faster seat wear, higher torque variation, and more stress on the sealing surfaces.
API6D is widely recognized in pipeline valve service. It is not just a label. It reflects a design and testing approach that is more aligned with transmission pipelines and station service.
For a natural gas station, API6D certification usually means the valve is designed with:
pressure boundary integrity
sealing reliability
long-term service stability
pipeline application suitability
stricter inspection and testing requirements
In short, it is more than “qualified.” It is more pipeline-oriented.
Selection Point | What to Look For |
Standard | API6D or equivalent pipeline compliance |
Structure | Trunnion mounted design |
Material | Suitable for high-pressure service |
Size and pressure | Matched to DN400 PN63 conditions |
Sealing design | Stable for long-term operation |
Test records | Complete inspection and traceability documents |
The right valve is not always the cheapest one. It is the one that matches the service condition best.
A high pressure natural gas station needs valves that are stable, durable, and safe.
An API6D certified DN400 PN63 09Г2C trunnion ball valve offers better impact resistance than a standard ball valve because it combines:
a supported ball structure
more even load distribution
smoother operation
stronger material performance
better pipeline design compliance
For demanding gas station service, this is often the more reliable choice.
