In high-pressure working conditions such as long-distance oil & gas pipelines, petrochemical plants and energy exploitation facilities, forged trunnion mounted ball valves act as critical fluid shut-off equipment. Any failure including leakage, jamming or malfunction may lead to safety hazards and costly production shutdowns.
Only carrying out final pressure tests on finished valves cannot achieve long-term stable service. The API Q1 Quality Management System provides core regulations covering the whole manufacturing lifecycle of forged trunnion mounted ball valves.
Issued by the American Petroleum Institute, API Q1 is a quality specification specially designed for oil and natural gas equipment. Different from general ISO standards, it focuses strictly on energy industry manufacturing. It enforces mandatory requirements for design review, material traceability, forging procedures, non-destructive testing, assembly and documentation traceability.
Valve manufacturers certified with API Q1 must build a fully traceable production workflow. Every forged trunnion mounted ball valve can be tracked from raw forged blanks to finished delivery, forming the fundamental guarantee of equipment reliability under high pressure.

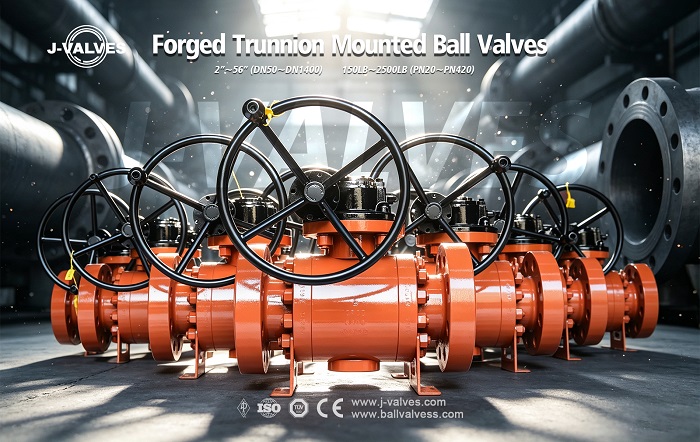

Compared with cast ball valves, trunnion mounted ball valves adopt forged steel materials including A105, A105N, F304 and F316. Pressure classes range from 150LB to 2500LB, with sizes from DN50 to DN1400. According to API Q1 specifications, manufacturers must comply with strict rules below:
1. Raw Material Traceability
All forged steel materials are supplied with original material test certificates and rechecked via spectrum analysis. API Q1 requires full matching of batch numbers, heat numbers and certification documents to prevent body cracking caused by unqualified raw materials.
2. Forging & Heat Treatment Control
After forging, valve bodies undergo normalized and tempered heat treatment to eliminate internal stress. Records of heating curves, holding time and cooling processes are permanently filed to guarantee mechanical strength and impact resistance.
3. Precision Machining & Non-Destructive Testing
Strict dimensional tolerance control is implemented for balls and valve seats. Critical components including valve bodies and stems pass UT ultrasonic testing and MT magnetic particle inspection to detect internal cracks and defects, preventing medium leakage under high pressure.
4. Standardized Assembly & Sealing Control
Trunnion structure supports the ball via upper and lower stems. Preload of valve seats directly affects sealing performance. API Q1 regulates standardized assembly torque to avoid internal leakage and operation jamming caused by improper assembly.
Some manufacturers only conduct sampling pressure tests. However, API Q1 requires complete independent testing for every forged trunnion mounted ball valve.
Each finished unit undergoes body hydrostatic test and seat sealing hydro/pneumatic test. All test pressure, holding duration and leakage inspection data are recorded in an independent test report.
In addition, endurance cycle tests and temperature simulation tests are carried out to verify sealing stability under fluctuating pressure and temperature. Complete inspection documents are delivered together with each valve, realizing one unique file for every single product.
API Q1 compliant forged trunnion mounted ball valves are widely used in natural gas transmission pipelines, oil gathering pipelines, LNG projects and coal chemical plants. These projects feature flammable media, high operating pressure and limited maintenance time. Ball valves manufactured under API Q1 effectively reduce unplanned shutdown risks and improve overall pipeline safety.
When purchasing high-pressure forged trunnion mounted ball valves, buyers should not focus merely on price. Two key qualifications need verification:
First, valid API Q1 certificate covering the production range of trunnion ball valves;
Second, in-house testing laboratory with independent capability for non-destructive examination and pressure testing, as well as full production traceability.
Professional valve manufacturers strictly implement API Q1 quality standards for forged trunnion mounted ball valves. Manual operation, gear operator, electric and pneumatic actuators are optional. Products can be customized in accordance with ASME B16.34, API 6D and other international standards to fit global industrial pipeline projects.
