How API 6D Certified Y Strainers Reduce Equipment Wear Risks in Chemical Transfer Applications？

I. Why equipment wear matters in chemical transfer systems?

Chemical transfer systems rarely handle perfectly clean media. Weld slag, metal chips, solid particles, scale, and crystallized residues may travel through the pipeline and gradually damage pumps, valves, meters, and control components.

What begins as a minor contamination issue can quickly turn into higher maintenance costs, unstable operation, lower efficiency, and unplanned shutdowns. For this reason, protecting the upstream and downstream equipment has become a critical part of chemical and process piping design.

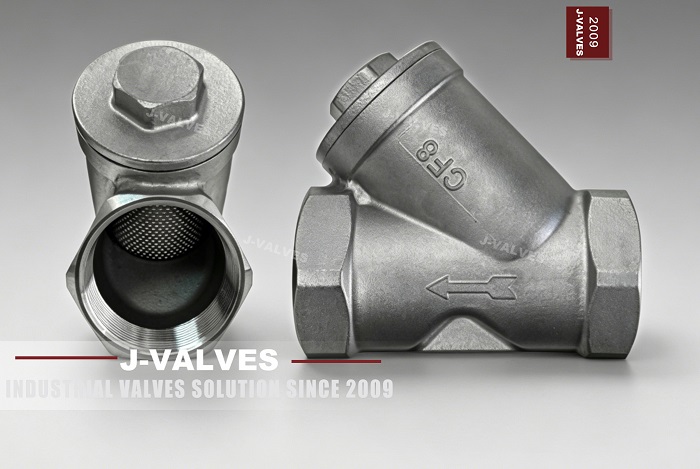

II. What does an API 6D certified Y strainer do?

An API 6D certified Y strainer is designed to remove solid particles from pipeline media before they reach sensitive equipment. Its compact body, relatively low pressure drop, and practical maintenance structure make it a strong choice for transfer systems that require both protection and continuous flow.

Its main functions include:

1. Capturing solid contaminants in the pipeline

2. Protecting pumps, valves, and instruments from wear

3. Reducing blockage and shutdown risks

4. Improving system stability

5. Extending the service life of critical assets

API 6D certification also indicates that the product follows recognized requirements for pipeline equipment, which is especially valuable in industrial and chemical applications where reliability matters.

III. Why API 6D certification is important in chemical applications?

Chemical transfer projects usually demand consistent quality, dependable sealing, and long-term operational reliability. API 6D certified products are often better aligned with these expectations and can make procurement, inspection, and project acceptance more straightforward.

For Y strainers, certification adds value in several ways:

• Better fit for pipeline engineering standards

• Easier coordination with pumps, valves, and piping systems

• Stronger confidence in long-term performance

• More consistent quality control during manufacturing and acceptance

That is why certified filtration solutions are increasingly preferred in chemical plants, petrochemical facilities, and pipeline transfer systems.

IV. How Y strainers reduce equipment wear risks?

The concept is simple: stop harmful particles before they enter critical equipment.

1. Protecting pump impellers from abrasion

Pumps are among the most vulnerable components in chemical transfer systems. When particles enter the pump chamber, they can erode impellers, reduce efficiency, increase vibration, and eventually cause failure. A Y strainer helps intercept those particles before they reach the pump.

2. Protecting valve seating surfaces

Valve seats and sealing surfaces are highly sensitive to hard particles. Even small contaminants can prevent tight shutoff, increase internal leakage, and raise operating torque. A properly selected strainer reduces this risk by keeping contaminants out of the downstream line.

3. Improving instrument reliability

Flow meters, pressure gauges, and differential pressure transmitters often require cleaner media to operate accurately. Solid particles can clog sensing areas or distort readings. A Y strainer helps keep measurement systems stable.

4. Reducing local erosion in the pipeline

In high-velocity or particle-laden service, local erosion can occur in elbows, reducers, and other sensitive areas. By removing solids from the flow, the strainer helps lower erosion intensity and protects the line over time.

V. How to choose the right Y strainer?

Performance depends on proper selection. A strainer that is installed but poorly matched to the application may not deliver the expected protection.

Filtration rating

Different chemical services require different filtration levels. Too coarse, and particles pass through; too fine, and pressure drop and clogging frequency may increase. The right balance depends on the fluid, the contaminants, and the equipment being protected.

Material compatibility

Chemical media can be corrosive, temperature-sensitive, or chemically aggressive. The strainer body and screen material must match the service conditions. Common options include carbon steel, stainless steel, and special alloys for demanding applications.

Pressure class and connection type

The strainer must match the system’s pressure rating, pipe size, and connection style to ensure proper sealing and stable operation.

Drainage and maintenance design

A strainer should be easy to inspect and clean. Practical drain arrangements and service-friendly design can significantly reduce maintenance effort and keep filtration performance consistent.

VI. Maintenance is part of the solution

A Y strainer is only effective when it is maintained properly. If the screen becomes clogged and is not cleaned in time, pressure drop will rise and system performance may suffer.

Regular checks should focus on:

• Screen blockage or damage

• Drain port condition

• Seal integrity

• Abnormal pressure drop

• Changes in flow or pump performance

For services with frequent operation or high solids content, a routine inspection plan is especially important.

Conclusion

In chemical transfer systems, wear is often the result of long-term particle erosion rather than sudden failure. An API 6D certified Y strainer helps intercept contamination early, reducing the wear risk for pumps, valves, and instruments while improving overall system reliability.

For projects where uptime, maintenance cost, and long-term performance matter, installing the right Y strainer is a practical and valuable step.
