Long-distance crude oil pipelines, natural gas transmission trunk lines, oil field gathering stations and petrochemical refineries impose strict safety standards on industrial gate valves. For large-diameter 16-inch Class 150 A216 WCB flanged gate valves widely adopted in oil & gas industries, compliance with both API 600 manufacturing standard and API 6D pipeline valve certification is mandatory. Many pipeline engineers confuse the two API standards, leading to improper valve selection for critical pipeline projects. Combined with mass production photos of J-VALVES 16" gear operated WCB gate valves, this article distinguishes API 600 and API 6D, and explains key structural features of Class 150 carbon steel gate valves for gas & oil transmission service.
API 600 specifies uniform design, material, wall thickness, bonnet, stem sealing and ASME B16.5 flange dimensions for carbon steel & alloy steel gate valves from Class 150 to Class 2500.
It defines basic manufacturing rules for general industrial gate valves made of A216 WCB, A105 forged steel. Valves only complying with API 600 can be used for chemical plants, power plants and low-pressure auxiliary pipelines, but they are not qualified for hazardous gas trunk transmission lines without additional API 6D certification.

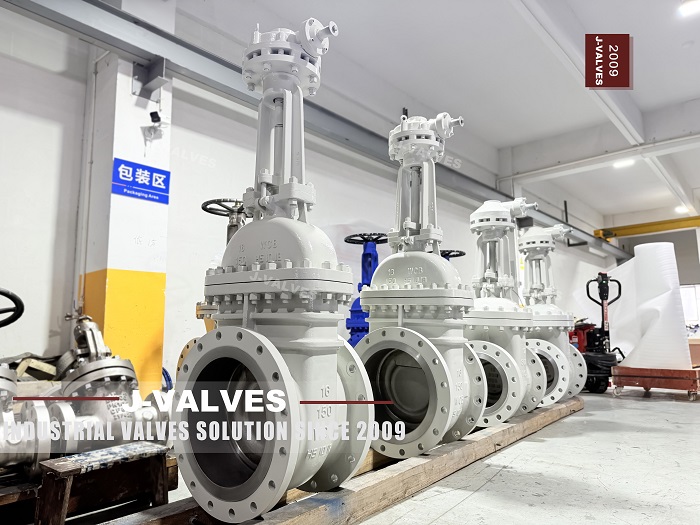

The 16" 150LB WCB gate valve shown in factory photos adopts integrally cast A216 WCB carbon steel body, outside screw & yoke (OS&Y) bonnet and large torque reduction gearbox. Its body wall thickness strictly follows API 600 calculation formula, working temperature ranges from -29℃ to 425℃ for oil and gas medium.
API 6D is a dedicated performance certification standard for pipeline isolation valves including gate valves, ball valves and check valves, which is a compulsory tender requirement for all oil & gas trunk line projects.
Different from API 600 which only regulates mechanical dimensions, API 6D requires third-party witnessed type tests covering bidirectional tightness, fire safe test, zero helium gas leakage, thousands of pressure cycle fatigue test, anti-blowout stem design and anti-static structure.
High-pressure flammable natural gas transported via long-distance pipelines will cause fire or environmental disasters once internal/external leakage occurs. Therefore, global pipeline codes require all mainline isolation gate valves to obtain official API 6D certificates, while API 600 general industrial valves are only allowed for low-pressure plant branch pipelines.
Comparison Item | API 600 | API 6D |
Main Application | General industrial process pipelines | Oil & gas trunk lines, wellhead isolation, LNG stations |
Test Rules | Factory hydrostatic test only | Third-party fire safe, gas tightness, fatigue cycle type test |
Mandatory Safety Design | No fire-safe or anti-static compulsory rules | Mandatory anti-blowout stem, fire-resistant gaskets, anti-static structure |
Certification Threshold | Self-inspection by manufacturers | Independent third-party witnessed tests & official certification report |
Mass-produced 16-inch flanged gate valves from J-VALVES fully satisfy API 600 design codes and pass full API 6D type tests, perfectly matching harsh pipeline working conditions:
1. A216 WCB Cast Carbon Steel Body
WCB carbon steel provides excellent low-temperature toughness and pressure bearing capacity for Class 150 rating, suitable for crude oil, natural gas and coal bed methane. Integrated casting eliminates welding leakage risks and meets API 600 material specifications.
2. OS&Y Gear Operator for Outdoor Pipeline Service
Large bore 16-inch gate valves require high operating torque; matched gear reducer greatly reduces manual operation force. Outside screw yoke structure shows clear stem travel to judge full open/full closed status, convenient for pipeline patrol inspection.
3. Double Wedge Metal-to-Metal Seating for API 6D Zero Gas Tightness
Hard alloy surfacing on double wedge gate discs achieves bidirectional zero helium leakage, fully passing API 6D gas tightness test to eliminate tiny natural gas leakage risks.
4. Full Fire-Safe Construction
Fire-resistant flexible graphite packing and gaskets, anti-blowout stepped stem structure pass API 6D fire test. In case pipeline fire breaks out, the valve can maintain isolation sealing to cut off medium leakage.
5. ASME B16.5 Flange End for Universal Pipeline Connection
Class 150 flange dimensions comply with ASME B16.5 standard, matching standard pipeline flanges without extra on-site modification. Body stamping includes size, pressure class, material and API standard marks for easy project inspection.
1. Distinguish two API standards clearly: API 600 alone works for low-pressure plant branches; trunk pipelines and wellhead isolation valves must hold both API 600 manufacturing compliance and API 6D certification.
2. Large bore gate valves above 12" Class150 recommend OS&Y gear operated design for unattended outdoor pipeline stations.
3. For sour gas or cryogenic natural gas medium, upgrade to LF2 low-temperature steel body with NACE anti-sulfur treatment as optional.
4. Request full documents from valve suppliers: original API 6D certificates, material test reports and fire safe test reports for EPC project submission.
API 600 sets the basic manufacturing standard for 16" 150LB WCB gate valves to guarantee qualified body structure, dimension and material. API 6D acts as safety access certification for oil and gas transmission pipelines, verifying sealing, fire resistance and anti-fatigue performance under extreme working conditions.
J-VALVES mass produces API 6D certified WCB carbon steel gate valves from 2" to 48", pressure range Class150 to Class1500, supporting gear, electric and pneumatic actuators. We deliver one-stop industrial valve solutions for global oilfield, long-distance pipeline and petrochemical EPC projects.
