High pressure steam systems demand reliable flow control, long service life, and strong protection against reverse flow. In these applications, a lift check valve is one of the most important components in the piping system. When the operating environment involves elevated temperature, pressure fluctuations, and continuous service, the material and design of the valve become critical.

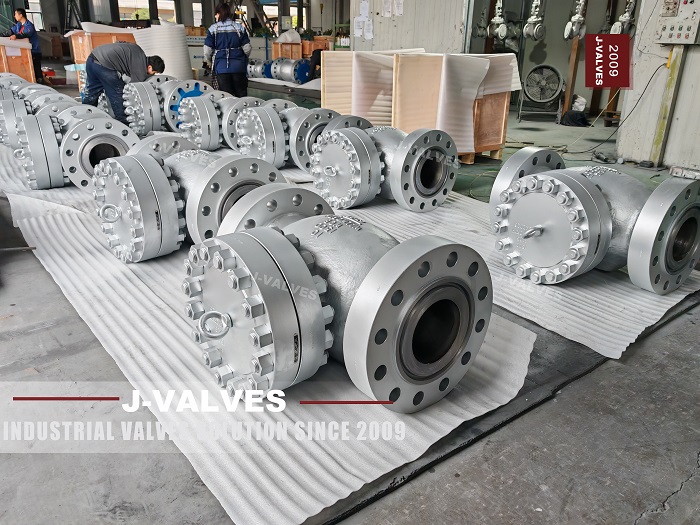

The A105 lift check valve is widely used in high pressure steam systems because it combines forged carbon steel strength with stable sealing performance and compact installation. If you are selecting a valve for power plants, boiler stations, process heating lines, or industrial steam pipelines, understanding the key selection points will help you choose the right product and improve system safety.
An A105 lift check valve is a forged steel non-return valve made from ASTM A105 carbon steel. It allows steam or other fluids to flow in one direction and automatically closes when reverse flow occurs. The disc lifts when pressure is applied in the correct direction and returns to the seat when flow stops or reverses.
Compared with many cast valve types, forged A105 material provides better strength, density, and durability for demanding pressure service.
ASTM A105 is a common forged carbon steel material used in pressure applications. In steam systems, it offers several important benefits:
First, it provides good mechanical strength, which helps the valve resist high pressure and thermal stress. Second, forged steel has a compact grain structure, making it suitable for harsh service conditions. Third, A105 valves are widely available in many pressure classes and end connections, making them easy to integrate into industrial piping systems.
For high pressure steam service, material reliability is not just a preference. It directly affects valve safety, operating stability, and maintenance cost.
Steam systems often work under extreme operating conditions. The first step is to confirm that the valve pressure class matches the system requirements. The selected valve must be able to handle the maximum working pressure and steam temperature without deformation or leakage.
The valve size should match the pipe size and expected flow rate. An undersized valve may create excessive pressure drop, while an oversized valve may reduce closing performance. Proper sizing ensures smooth operation and stable system response.
Lift check valves are typically installed in a horizontal position, although some designs can be used vertically depending on the structure. Before purchase, confirm the installation direction and space limitations in your pipeline layout.
In steam systems, leakage prevention is essential. A good lift check valve should offer reliable seat sealing to prevent reverse flow, water hammer, and unnecessary energy loss.
Depending on the project, you may need threaded, socket weld, or flanged connections. Choose the connection type based on pressure rating, maintenance requirements, and installation convenience.
Although this article focuses on steam, some systems may also carry condensate or mixed media. The selected valve should be suitable for the actual fluid condition, startup frequency, and operating cycle.
The forged A105 body provides excellent strength for high pressure steam service. This makes the valve suitable for demanding industrial applications.
The automatic lifting and closing action helps prevent backflow, protecting boilers, pumps, and upstream equipment from damage.
A lift check valve has a straightforward design, which makes it easier to install and maintain. Its compact structure also helps save space in crowded steam piping systems.
When properly selected and installed, an A105 lift check valve offers dependable shutoff performance that supports safe and efficient operation.
The forged steel construction improves durability under thermal cycling and pressure shock, helping reduce downtime and replacement frequency.
Steam systems often involve repeated heating and cooling. A105 forged carbon steel performs well in such conditions and supports long-term reliability.
A105 lift check valves are commonly used in:
Power plant steam lines
Boiler discharge systems
Industrial heating pipelines
Refinery utility lines
Chemical process steam systems
Textile and food processing steam networks
When selecting an A105 lift check valve for high pressure steam systems, do not focus only on price. A reliable supplier should provide material certificates, pressure class options, clear technical data, and consistent manufacturing quality. For critical steam service, product stability and traceability are more valuable than short-term savings.
If possible, choose a supplier with experience in forged steel valve manufacturing and industrial steam applications. This can help ensure better product matching and fewer operational issues later.
Choosing the right A105 lift check valve for high pressure steam systems is about more than matching pipe size. It requires careful attention to pressure rating, temperature resistance, sealing performance, and installation conditions. With its forged steel strength, compact design, and reliable reverse flow protection, the A105 lift check valve is an excellent choice for demanding steam applications.
For industries that value safety, efficiency, and long service life, the A105 lift check valve delivers a practical and dependable solution.
Q1: Why is A105 commonly used for steam valves?
A105 forged carbon steel offers strong mechanical performance and good durability for pressure service.
Q2: Can an A105 lift check valve handle high temperature steam?
Yes, when properly designed and rated for the system conditions, it is suitable for high pressure steam service.
Q3: What is the main benefit of a lift check valve?
It prevents reverse flow automatically and helps protect system equipment.
