In oil & gas, chemical processing and district heating projects, engineers frequently encounter terms including fully‑welded ball valve, butt‑weld ball valve and 3‑piece (3PC) trunnion mounted ball valve. Misunderstanding these two welding‑related concepts often leads to improper valve specification, expensive rework and high maintenance cost on‑site. This article clarifies definitions, key differences and practical selection rules for 3PC butt‑weld trunnion ball valves.
Most specification mistakes stem from mixing two different technical definitions.

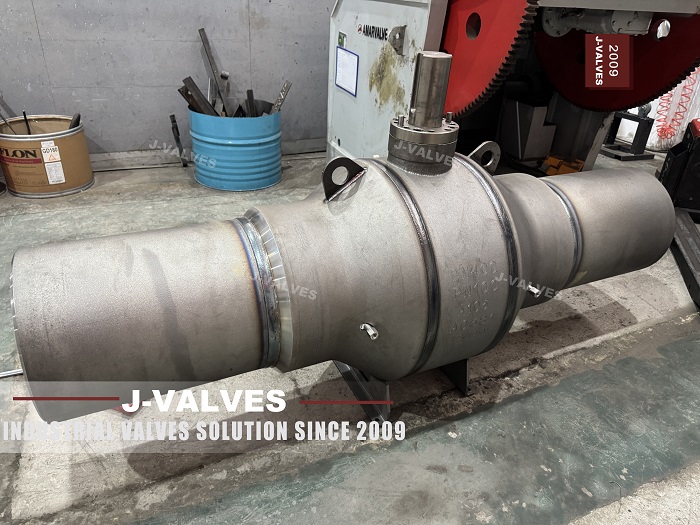

Fully‑welded body means the valve housing is welded into one solid unit. There are no bolted body joints across the valve body.
1. Advantages: Minimal potential external leak paths, excellent structural integrity. Highly suitable for buried pipelines and long‑distance transmission systems designed for multi‑decade maintenance‑free service.
2. Disadvantages: The body cannot be disassembled for inline repair. Once internal ball or seats get damaged, the whole valve has to be cut out and replaced from piping.
3. Typical applications: Buried natural gas pipeline, long‑distance oil transmission, underground district heating network.

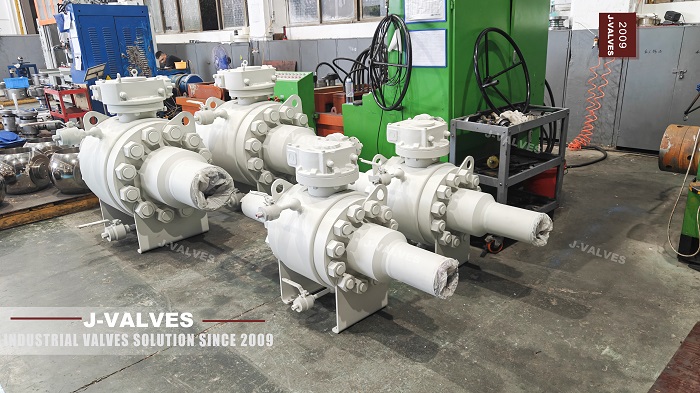

Butt‑weld end refers to the end connection method between valve and process pipe. Valve ends are machined with ASME B16.25 weld bevels for site field butt welding.
Important note: Butt‑weld is only an end connection option. It can be applied to fully‑welded body valves, two‑piece or three‑piece split‑body valves alike. Fully‑welded body and butt‑weld end are not mutually exclusive items.
In short:
✅Fully‑welded describes valve body construction; Butt‑weld describes pipe‑valve joint method.
3‑piece trunnion ball valve consists of two end caps and one central body. Heavy‑duty body bolts clamp three sections together. Trunnion‑supported ball is fitted inside central body, while end connections are machined as butt‑weld ends. This heavy‑duty design is widely adopted for large‑size high‑pressure industrial pipelines as shown in workshop production photo.
With trunnion mounting design, ball is supported by upper and lower shafts. It performs well under high differential pressure, allows pigging service. Standard design meets API 6D requirements, with anti‑static, fire‑safe and anti‑blow‑out stem features.
1. Robust butt‑weld end connection： BW ends are welded directly to process piping. This joint delivers superior strength against high temperature, high pressure and pipeline vibration, better than flanged or threaded ends for severe‑service conditions.
2. In‑line maintainable split‑body design： After two end caps are permanently welded to pipework, technicians can loosen body bolts and take out central body cartridge. Seat and seal replacement can be completed without cutting field welds. It greatly reduces plant downtime and maintenance expense, which is the biggest advantage compared with fully‑welded body valves.
3. Wide size and pressure coverage： Available in cast WCB, forged A105 and stainless steel material. Pressure classes range from Class150 up to Class2500 for large bore pipeline projects.
Bolted body joints create potential external leakage points. Re‑torque of body bolts shall be scheduled under thermal cycling service to prevent gasket leakage.
Items | 3‑Piece Butt‑Weld Trunnion Ball Valve | Fully‑Welded Body Ball Valve |
Body Construction | Bolted 3‑piece split body, field maintainable | Integral welded body, non‑disassemblable |
End Connection | Available for BW, RF flange etc | Also can be supplied with butt‑weld ends |
Maintenance | Inline repair, no pipe cutting required | Valve must be cut out for full replacement |
External Leak Risk | Potential leak paths on body bolt joints | Almost zero body joint leakage risk |
Recommended Application | Process plant station piping, periodic maintenance required | Buried pipeline, long‑distance transmission, inaccessible underground installation |
Lifecycle Cost | Medium initial cost, low maintenance cost | Low initial cost, high replacement cost after failure |
Specify design standard API 6D, ASME B16.34. Butt‑weld bevel dimension complies with ASME B16.25. For fire‑safe requirement, select valves certified per API 607.
Oil, non‑corrosive gas: WCB cast steel / A105 forged steel
Corrosive fluid: Stainless steel SCS13, 316L
Seat material shall match operating temperature range to avoid seal degradation.
Large bore trunnion ball valves generate high operating torque. Gear operator, pneumatic or hydraulic actuator shall be sized accordingly. For buried installation, order extended stem with protection sleeve for surface operation.
Explicitly inform valve manufacturer: 3‑piece body construction with Butt‑Weld (BW) ends, to avoid default flanged supply causing installation error.
1. Fully‑welded refers to body construction; butt‑weld defines pipe‑valve connection. Do not mix these two concepts.
2. 3‑piece butt‑weld trunnion ball valve: end caps are welded with pipe, while central cartridge can be disassembled for repair. Perfect for process station piping where future maintenance is expected.
3. For buried long‑distance pipeline with almost zero access for maintenance, fully‑welded body ball valve is preferred.
Start your specification work by answering one key question: Is pipe cutting acceptable for future repair? Then confirm body style and end connection to avoid specification error.
If you share project parameters including medium, pressure and size, we can provide customized 3PC butt‑weld trunnion ball valve recommendation.
