Threaded Ball Valves: Guardians of Precise Flow in Pipelines

In numerous industrial and civil pipeline systems, threaded ball valves play an extremely crucial role.

The design of threaded ball valves is highly ingenious. The core components, the ball and the valve seat, fit closely together. The circular through-hole on the ball can precisely control the flow and direction of the fluid. When the ball rotates 90 degrees, the pipeline can be fully opened or closed, and the operation is extremely convenient. The connection method adopts a threaded design, which not only makes the installation process simple and efficient, requiring no complicated tools and professional techniques, but also enables easy disassembly and repair, significantly reducing maintenance costs and time.

In terms of performance, threaded ball valves exhibit outstanding qualities. They possess excellent sealing performance and can effectively prevent fluid leakage whether in high-pressure or low-pressure environments, ensuring the safety and stability of the system operation. There is a wide range of material options, including stainless steel and carbon steel, which can adapt to the corrosiveness and temperature requirements of different media. For example, in the chemical industry, threaded ball valves made of stainless steel can work stably for a long time when dealing with corrosive liquids such as strong acids and alkalis; in the heating system, carbon steel threaded ball valves can withstand a certain degree of high temperature and pressure.

The application fields of threaded ball valves are extremely extensive. In the petrochemical industry, it precisely controls the transportation of various oil products and chemical raw materials; in the water supply and drainage system of the construction field, it esily regulates the water flow; in the gas pipeline system, it strictly ensures the safe transmission of gas.

In conclusion, threaded ball valves, with their exquisite design, excellent performance, and wide applicability, have become indispensable key components in pipeline systems, contributing silently to the orderly operation of modern industry and daily life and continuously demonstrating their unique value in various fluid transportation and control scenarios.

Product Display

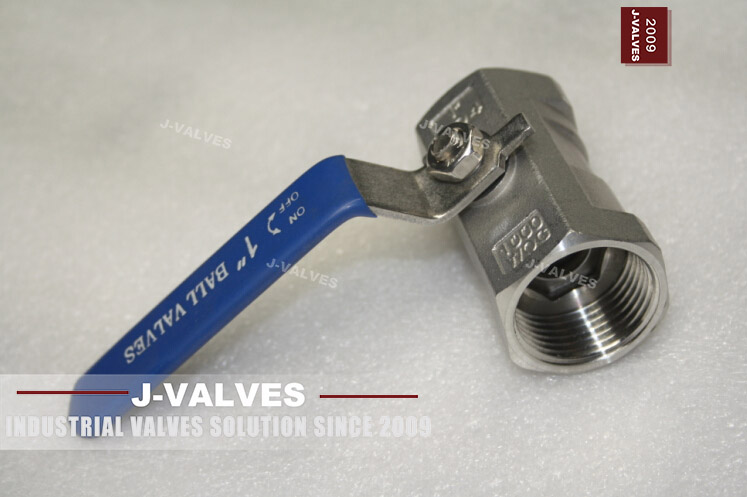

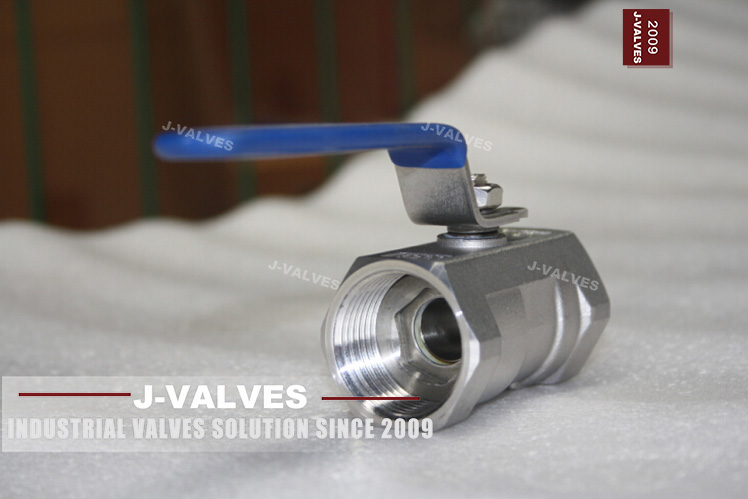

One-piece threaded ball valve

One-piece threaded ball valve features an integrally formed valve body without connection seams, effectively preventing leakage. It is made of stainless steel and other materials, ensuring corrosion resistance. Connected to the pipeline via threads, it is easy to install and can precisely control the fluid flow, suitable for simple pipeline systems such as small water and gas supply pipelines.

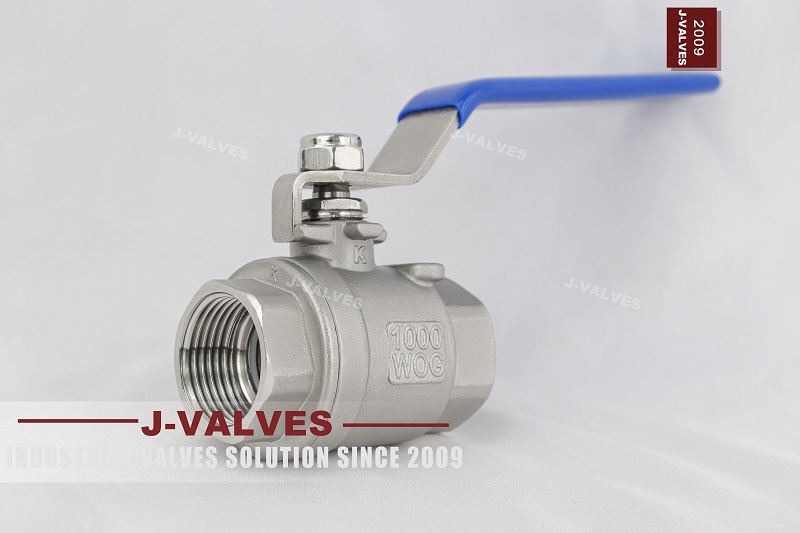

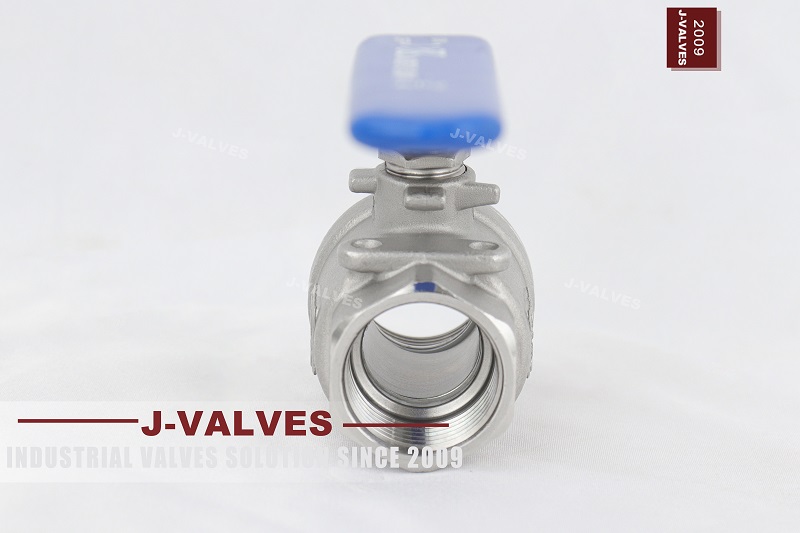

Two-piece threaded ball valve

Two-piece threaded ball valves are crafted from 304 stainless steel, featuring a compact structure composed of two parts of the valve body. Connected by threads, the installation is efficient and convenient. They have good sealing performance and can precisely control the flow of liquid or gas media. Applicable to a variety of industrial and civil pipeline systems, they perform well under mild working conditions and are a reliable choice for fluid control.

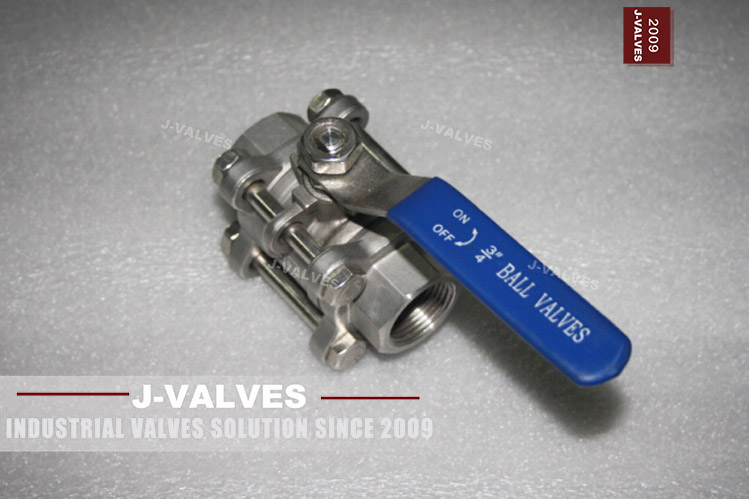

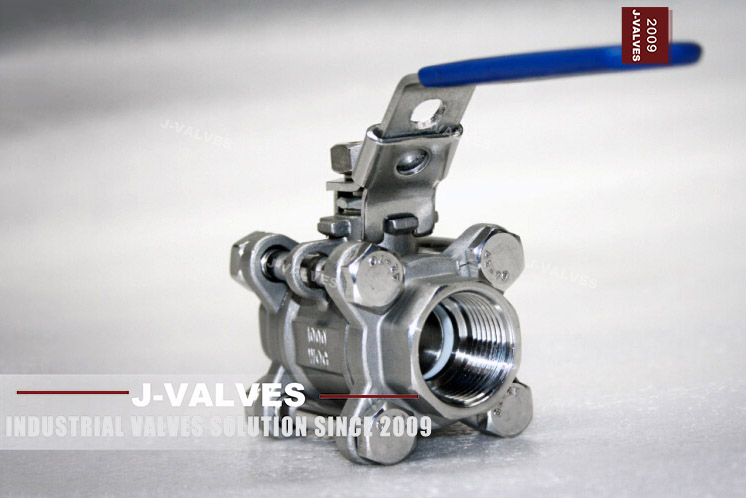

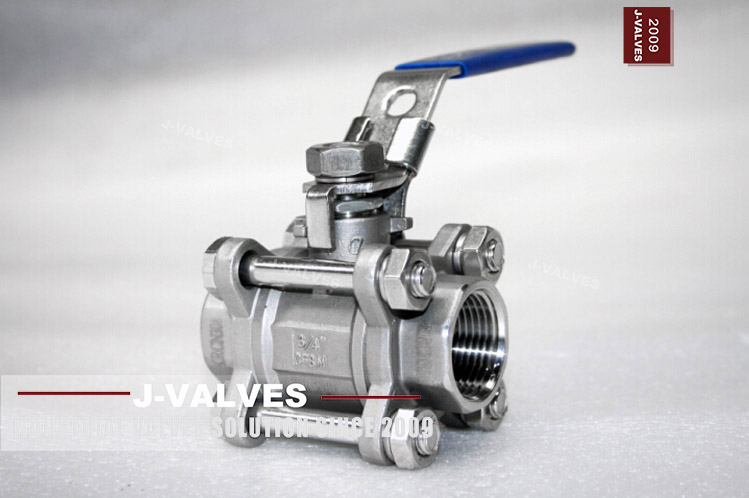

Three-piece threaded ball valve

Three-piece threaded ball valves consist of three parts: the valve body, valve cover, and ball. High-quality materials such as stainless steel are used, ensuring good corrosion resistance. Connected by threads, the installation is simple. They have excellent sealing performance and can precisely adjust the fluid flow. Widely used in pipeline systems of industries such as chemical, light, and pharmaceutical, they are reliable, durable, and easy to maintain.

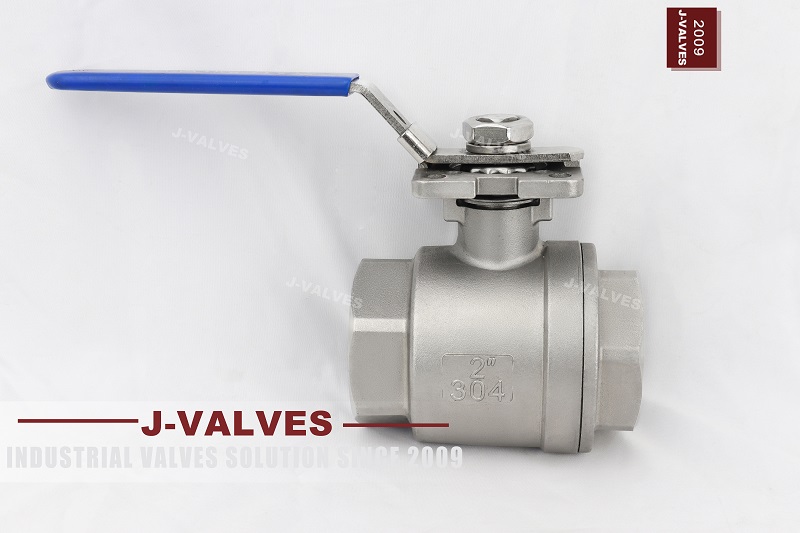

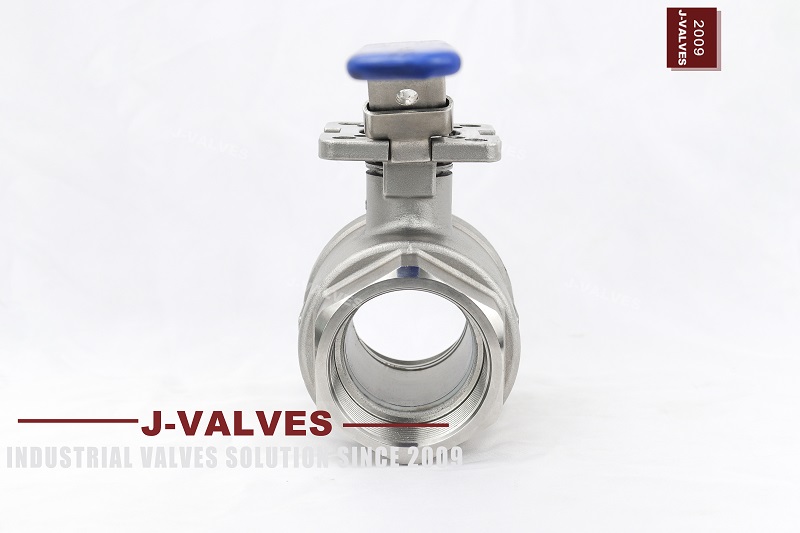

High-platform threaded ball valve

Two-piece high-platform threaded ball valves, made of 304 stainless steel, are strong and corrosion-resistant. The unique two-piece structure and high-platform design facilitate installation and operation. The ball rotates flexibly, and the sealing performance is excellent, enabling precise control of the fluid. Widely used in fields such as chemical, food and beverage, and light industries, they are an ideal choice for efficient fluid control.

Product Overview: It includes pneumatic high-pressure threaded ball valves, pneumatic high-pressure welded ball valves, and pneumatic high-pressure flanged ball valves, etc. The working principle is that with compressed air as the power, the valve stem drives the valve core to rotate 90° in the valve body to achieve a full open or full close action.

Product Features: It has advantages such as compact structure, small volume, reliable operation, good sealing, easy maintenance, convenient installation, and strong adaptability. It also adopts a new series of pneumatic actuators, including double-acting and single-acting types, with gear and rack transmission, which is safe and reliable.

Technical Parameters: It covers detailed parameters such as nominal diameter, nominal pressure, connection form, sealing packing, valve core form, flow characteristics, as well as parameters of the actuator such as supply pressure, air source interface, and ambient temperature.

Component Materials: Lists the material selection of main components such as valve body, valve cover, ball, valve stem, valve seat sealing ring, and packing.

Product Selection: Guides users to select from two aspects of valve body parameters and actuator parameters, including nominal diameter, working pressure, process medium, application occasion, valve body material, etc.

Accessory Options: Explains the accessories that can be selected according to different controls and requirements, such as return transmitters, solenoid valves, three-piece sets, handwheel mechanisms, and electrical positioners.

External Dimensions: Provides the external dimensions of ball valves with different connection methods such as two-piece, three-piece, butt-welded, and socket-welded, facilitating user reference.
