Pressure Drop Vs Flow Rate Optimization in Y-Strainer Systems

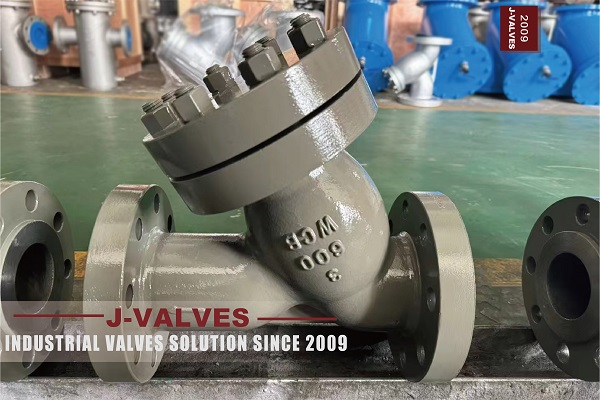

Y-strainers are widely used in industrial piping systems to protect pumps, valves, and sensitive equipment from particulates and debris. While ensuring filtration efficiency is critical, managing pressure drop and optimizing flow rate are equally important to maintain system efficiency, energy savings, and equipment longevity.

1. Understanding Pressure Drop in Y-Strainers

1.1 Definition

Pressure drop refers to the reduction in fluid pressure as it passes through the strainer. Excessive pressure drop can lead to:

• Reduced pump efficiency

• Increased energy consumption

• Potential system imbalance

• Premature equipment wear

1.2 Factors Affecting Pressure Drop

1. Strainer Mesh Size: Finer mesh captures smaller particles but increases resistance to flow.

2. Flow Rate: Higher flow rates increase turbulence, resulting in higher pressure drop.

3. Debris Accumulation: Over time, trapped solids reduce effective flow area, further increasing pressure drop.

4. Strainer Orientation: Correct installation (strainer leg downward) allows debris to settle efficiently, minimizing flow restriction.

2. Flow Rate Optimization Principles

2.1 Flow Coefficient (Cv)

• The flow coefficient (Cv) measures the volume of fluid passing through the strainer with a 1 psi pressure drop.

• Choosing a strainer with an adequate Cv ensures minimal pressure drop at the required flow rate.

• Rule of thumb: Select a strainer with Cv 20–30% higher than maximum system flow to account for debris accumulation.

2.2 Mesh Selection

• Coarse mesh: Reduces pressure drop, suitable for low-viscosity fluids with moderate debris.

• Fine mesh: Increases filtration efficiency, used when protecting sensitive downstream equipment.

Optimization Tip: Balance filtration efficiency and allowable pressure drop.

2.3 Strainer Size and Surface Area

• Larger baskets or screens increase surface area, reducing flow velocity through the mesh.

• Lower velocity translates to reduced turbulence and lower pressure drop, while maintaining filtration efficiency.

3. Monitoring and Maintenance

• Differential Pressure Gauges: Monitor the pressure difference across the strainer to determine cleaning intervals.

• Scheduled Cleaning: Periodic removal of debris ensures consistent flow rate and minimal pressure drop.

• Mesh Replacement: Replace worn or corroded screens to maintain optimal Cv and pressure performance.

Pro Tip: Consider self-cleaning or automatic strainers for systems with high particulate loads.

4. Pressure Drop vs Flow Rate Analysis

• Pressure drop increases quadratically with flow rate in Y-strainers.

• Example: Doubling the flow rate may quadruple the pressure drop, depending on mesh size and screen area.

• Use computational fluid dynamics (CFD) or manufacturer-provided Cv charts to optimize strainer selection for specific flow rates.

Practical Considerations:

1. For low-flow systems, smaller mesh strainers may suffice.

2. For high-flow systems, prioritize larger screens and coarser mesh to maintain low pressure drop.

3. Adjust maintenance schedules based on differential pressure trends to prevent energy loss and pump strain.

5. Material and Environmental Considerations

• Body Material: Stainless steel for corrosion resistance, bronze (C95800) for marine or brine applications, carbon steel for non-corrosive industrial water.

• Screen Material: Stainless steel or specialty alloys for chemical and high-temperature applications.

Compatibility between body, screen, and fluid ensures durability and maintains consistent flow performance.

6. Conclusion

Optimizing pressure drop and flow rate in Y-strainer systems is essential for:

• Maintaining efficient fluid transport

• Minimizing energy consumption

• Reducing maintenance frequency

• Extending system and equipment life

By carefully selecting mesh size, strainer size, and material, and implementing differential pressure monitoring, engineers can achieve balanced filtration efficiency and minimal pressure loss in industrial piping systems.
