For long-distance oil and gas transmission pipeline projects, valve failures and subsequent on-site rework are major headaches for EPC contractors and pipeline operators. Internal leakage, external body leakage, abnormal operating torque and seal damage often lead to project delays, shutdown losses and expensive field replacement.
Among all pipeline valve options, 3-piece (3PC) reduced bore trunnion mounted ball valves with complete API 598 factory acceptance testing are widely adopted in onshore petroleum pipeline networks. Many purchasers raise the same question: compared with conventional ball valves, why can 3PC trunnion ball valves with standard API 598 inspection effectively lower field rework frequency?
Oil & gas pipelines operate under fluctuating pressure, with medium containing impurities and wide ambient temperature variation. Conventional ball valves usually suffer these typical defects:
External leakage at body joint surfaces, caused by uneven bolt stress on 2-piece valve bodies under continuous high pressure;
Rapid wear of seat sealing surfaces, triggering medium internal leakage after short-term operation;
Inadequate factory pressure testing. Hidden defects are undetected until commissioning on site;
Undetected casting flaws, resulting in emergency shutdown and pipeline maintenance.
Industry statistics show that over 60% of on-site valve failures are not caused by improper installation, but inherent structural defects and insufficient factory quality control.

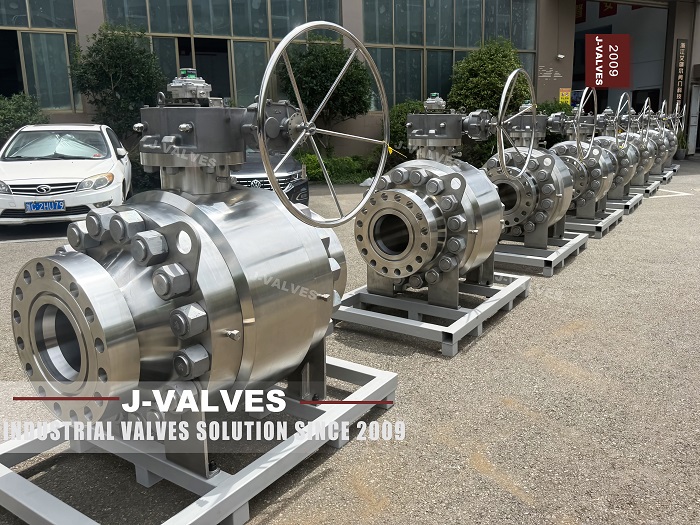

The 3-piece valve body consists of left, middle and right segments connected by flange bolts, different from one-piece cast valves and two-piece ball valves. Equipped with trunnion supported ball, the ball is fixed by upper and lower stems for superior pressure resistance.
Balanced structural stress
Evenly distributed bolts minimize body deformation under high pressure, greatly reducing external leakage risks at body connections, which performs much better than 2-piece ball valves for high-pressure oil pipelines.
Optimized reduced bore flow path
The reduced bore design matches normal flow velocity requirements of petroleum pipelines without extra high cost of full port valves. Moderate bore reduction weakens medium turbulence and slows abrasion on sealing seats.
Convenient maintenance
The 3-piece split structure allows on-site disassembly. Worn seats and packing can be replaced without cutting the whole valve out of pipeline, lowering future maintenance difficulty.
API 598 specifies standardized shell strength test and seat tightness test for industrial valves, and it is the common acceptance standard for oil & gas pipeline procurement.
Many low-cost suppliers only carry out simplified pressure tests, which cannot discover tiny casting porosity or imperfect seal contact. Defects will only emerge after pipeline pressurization and trigger costly on-site rework.
Qualified 3PC trunnion ball valves follow strict production flow: raw material NDT inspection → precision machining & assembly → full API 598 shell hydrostatic test and bidirectional seat tightness test → final dimension inspection. Complete test reports are provided to guarantee zero hidden faults before delivery.
1. For pipelines carrying media with sediment, choose metal-to-metal seats with spring preload for better wear resistance;
2. For outdoor pipelines in low-temperature regions, select low-temperature carbon steel or stainless steel body with extended stem and cryogenic packing;
3. Require full official API 598 test reports instead of simplified inspection records;
4. Cooperate with experienced industrial valve manufacturers. Mass production pipeline trunnion ball valves like J-VALVES support third-party witness inspection.
Controlling on-site rework rate for oil pipeline valves relies on optimized structure design plus standardized factory inspection.
3PC reduced bore trunnion mounted ball valves mitigate leakage risks under high pressure thanks to split body design. Combined with comprehensive API 598 pressure testing, potential failures are eliminated before delivery. This solution helps EPC and pipeline operators cut extra costs from shutdown and field replacement, making it a cost-effective choice for medium & long-distance petroleum transmission pipelines.
