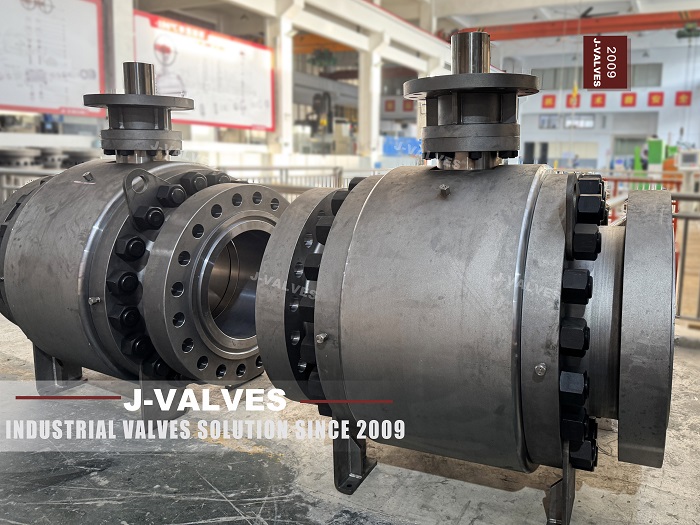

Large Size Trunnion Ball Valve API 6D

In the field of industrial pipeline systems, especially in the petroleum, natural gas, and large-scale water treatment industries, large size trunnion ball valves that comply with API 6D standards have become the core equipment for fluid control and isolation. API 6D, formulated by the American Petroleum Institute (API), is a globally recognized authoritative standard for pipeline valves, defining strict requirements for the design, manufacturing, assembly, testing, and documentation of valves. For large-diameter pipeline projects, the stability, pressure-bearing capacity, and sealing performance of valves directly affect the safety and efficiency of the entire system. This article will deeply analyze the core characteristics, API 6D standard requirements, key parameter comparisons, and application scenarios of large size trunnion ball valves, providing professional references for engineers, purchasers, and industry practitioners.

1. What is a Large Size Trunnion Ball Valve API 6D?

A large size trunnion ball valve refers to a ball valve with a nominal diameter (DN) of DN300 and above (or NPS12 and above), and its core structural feature is the trunnion-mounted design—which means the ball is mechanically anchored by shafts (trunnions) at the top and bottom, preventing the ball from moving within the valve body even under extreme pressure conditions. Unlike floating ball valves that rely on fluid pressure for sealing, trunnion ball valves use spring-loaded floating seats that move toward the fixed ball to form a tight seal, ensuring consistent performance regardless of pressure changes.

Compliance with API 6D standards means the valve has passed strict design and testing procedures, including pressure testing, non-destructive testing, and fire safety testing, and can meet the harsh working conditions of high pressure, high temperature, and corrosive media in industrial pipelines. It is worth noting that API 6D does not apply to subsea pipeline valves, which are covered by the separate API 6DSS standard.

2. Core Features of Large Size Trunnion Ball Valve API 6D

2.1 High Pressure and Large Diameter Adaptability

API 6D large size trunnion ball valves are designed to handle pressure ratings ranging from Class 150 to Class 2500 (PN10 to PN420) and can be manufactured in sizes up to DN1400 (NPS56) or larger, fully meeting the needs of large-scale pipeline projects such as cross-country oil and gas pipelines and large power plants. The trunnion structure distributes pressure loads across trunnion bearings, avoiding concentrated forces on seats and stems, thus improving the valve’s pressure-bearing capacity and service life.

2.2 Excellent Sealing Performance

Adopting a bidirectional sealing design, the valve can achieve Class VI leakage level (zero leakage in most cases) through spring-loaded seats and high-quality sealing materials (such as PTFE, RPTFE, or metal-to-metal seals). This ensures that no media leakage occurs even in high-pressure and low-pressure differential environments, effectively preventing environmental pollution and safety hazards. Some models also have a double block & bleed (DBB) design, which can vent or bleed the cavity between the two seats when the ball is closed, further improving sealing reliability.

2.3 Stable Operation and Low Torque

The trunnion-mounted ball design eliminates pressure-induced movement of the ball, making the operating torque consistent across all pressure ranges and significantly lower than that of floating ball valves of the same specification. This allows for easy operation even for large-size valves, and the valve can be equipped with manual, gear, electric, pneumatic, or hydraulic actuators to meet different operation needs, adapting to both on-site and remote control scenarios.

2.4 Compliance with Strict API 6D Standards

All links from design, material selection, manufacturing to testing must comply with API 6D requirements. For example, the pressure-temperature rating must meet ASME B16.34, the flange connection must comply with ASME B16.5 or ASME B16.47, and non-destructive testing (such as ultrasonic testing, radiographic testing) must be performed on critical components. Additionally, the valve can be optionally certified for fire safety (API 6FA/607) and fugitive emissions (ISO 15848) to meet higher industry requirements.

3. Key Parameter Comparison of Large Size Trunnion Ball Valve API 6D

The following table compares the core parameters of four common large size trunnion ball valves API 6D (DN300 to DN1000), which can provide a quick reference for purchase and selection (all parameters comply with API 6D standards and are from actual industrial application data):

4. Application Scenarios of Large Size Trunnion Ball Valve API 6D

Due to its excellent performance and compliance with API 6D standards, large size trunnion ball valves are widely used in key industrial fields that require high safety and reliability:

4.1 Petroleum and Natural Gas Industry

It is the core valve for onshore and offshore oil and gas transmission pipelines, refineries, and gas stations. It is used for isolation and control of crude oil, natural gas, and refined products, especially suitable for cross-country pipelines and offshore platforms that require long-term stable operation under high pressure and harsh environments.

4.2 Power Industry

In thermal power plants and nuclear power plants, it is used in circulating water systems, steam pipelines, and cooling water systems to control the flow of high-temperature and high-pressure media, ensuring the safe and stable operation of power generation equipment.

4.3 Water Treatment and Municipal Engineering

For large-scale water supply and drainage projects, sewage treatment plants, and desalination projects, it is used to control the flow of large-volume water and sewage, with the advantages of corrosion resistance and low maintenance cost.

4.4 Chemical and Petrochemical Industry

Used in chemical reaction pipelines, solvent delivery pipelines, and corrosive medium storage systems, it can adapt to various corrosive media (such as acids, alkalis, and organic solvents) and meet the strict sealing requirements of chemical production.

5. Key Points for Selection and Maintenance of Large Size Trunnion Ball Valve API 6D

5.1 Selection Key Points

1. Determine the nominal diameter and pressure class according to the pipeline parameters, ensuring compliance with API 6D and ASME B16.34 standards;

2. Select the appropriate valve body and seat material based on the applicable medium (corrosive, high-temperature, etc.), such as stainless steel for corrosive media and alloy steel for high-temperature media;

 3. Choose the operating mode according to the on-site operation needs (manual, electric, etc.), and ensure the actuator meets ISO 5211 standards;

4. Confirm additional requirements such as fire safety, low fugitive emissions, and SIL 3 certification according to the working environment.

5.2 Maintenance Key Points

1. Regularly inspect the sealing performance of the valve to avoid leakage caused by wear of the seat and packing;

2. Conduct regular lubrication of the trunnion bearings and valve stem to ensure flexible operation;

3. Perform non-destructive testing on critical components regularly to detect potential defects in advance;

4. Keep the valve clean and avoid blockage caused by medium impurities; 5. Strictly follow the API 6D standard for maintenance records to ensure traceability.

6. Conclusion

As a core component of large-scale industrial pipelines, large size trunnion ball valve API 6D has become an indispensable equipment in petroleum, natural gas, power, and other industries due to its high pressure resistance, excellent sealing performance, stable operation, and compliance with international standards. When selecting and using such valves, it is necessary to strictly follow API 6D standards, combine the actual working conditions to determine parameters and materials, and do a good job in daily maintenance to ensure the safe and efficient operation of the pipeline system.
