Understanding API 594 and ANSI B16.34

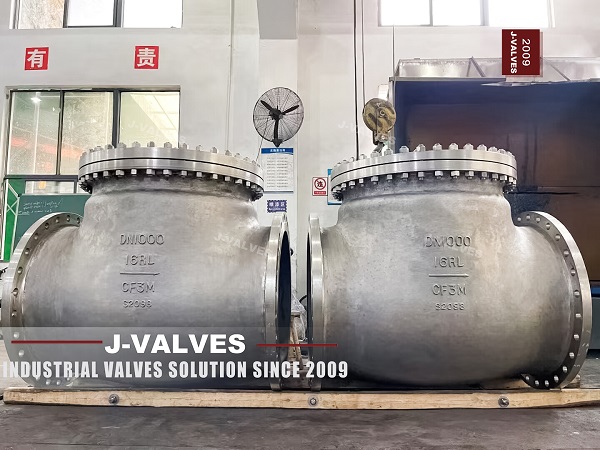

API 594 is a standard that specifies the design, materials, dimensions, pressure-temperature ratings, and testing requirements for check valves. This standard covers various types of check valves, including swing, wafer, lug, and double-plate designs.
ANSI B16.34: Valves - Flanged, Threaded, and Welding End
ANSI B16.34 is a broader standard that covers the design, materials, pressure ratings, and testing requirements for a wide range of valves, including check valves. This standard provides comprehensive guidelines for ensuring the reliability and safety of valves in various industrial applications.
• Types: API 594 covers various types of check valves, including swing, wafer, lug, and double-plate designs.
• Face-to-Face Dimensions: Detailed specifications for face-to-face dimensions ensure compatibility with different piping systems.
• Pressure-Temperature Ratings: Comprehensive pressure-temperature ratings ensure the valve's suitability for specific operating conditions.
• Material Choices: API 594 allows for a wide range of materials, including cast iron, ductile iron, steel, nickel alloys, and other alloys.
• Corrosion Resistance: The standard emphasizes the importance of corrosion resistance, particularly in environments involving corrosive fluids.
• Testing Requirements: API 594 includes rigorous testing requirements to ensure the valve's performance and reliability.
• Inspection Procedures: Detailed inspection procedures ensure that the valves meet the specified quality standards.
• Types: ANSI B16.34 covers a wide range of valve types, including check valves, gate valves, globe valves, and ball valves.
• Face-to-Face Dimensions: Detailed specifications for face-to-face dimensions ensure compatibility with different piping systems.
• Pressure-Temperature Ratings: Comprehensive pressure-temperature ratings ensure the valve's suitability for specific operating conditions.
• Material Choices: ANSI B16.34 allows for a wide range of materials, including cast iron, ductile iron, steel, stainless steel, and other alloys.
• Corrosion Resistance: The standard emphasizes the importance of corrosion resistance, particularly in environments involving corrosive fluids.
• Testing Requirements: ANSI B16.34 includes rigorous testing requirements to ensure the valve's performance and reliability.
• Inspection Procedures: Detailed inspection procedures ensure that the valves meet the specified quality standards.
• API 594: The valve body design under API 594 often includes features such as compact designs and lightweight materials, making them suitable for tight spaces.
• ANSI B16.34: The valve body design under ANSI B16.34 is more versatile, covering a wider range of valve types and applications.
Pressure and Temperature Ratings
• API 594: API 594 provides detailed pressure and temperature ratings, ensuring the valve's suitability for specific operating conditions.
• ANSI B16.34: ANSI B16.34 provides comprehensive pressure and temperature ratings, ensuring the valve's suitability for a wide range of industrial applications.
• API 594: API 594 includes specific requirements for fire safety, ensuring that the valve can withstand fire conditions without significant leakage.
• ANSI B16.34: ANSI B16.34 also includes fire safety requirements, ensuring that the valve can withstand fire conditions without significant leakage.
• API 594: API 594 includes provisions for low-emission designs, reducing the risk of fugitive emissions.
• ANSI B16.34: ANSI B16.34 also includes provisions for low-emission designs, ensuring environmental compliance.
