When it comes to selecting the right ball valve for a Double Block and Bleed (DBB) system, choosing between full-bore and reduced-bore designs is critical. The decision can have significant implications on flow efficiency, pressure drop, maintenance, and system performance.

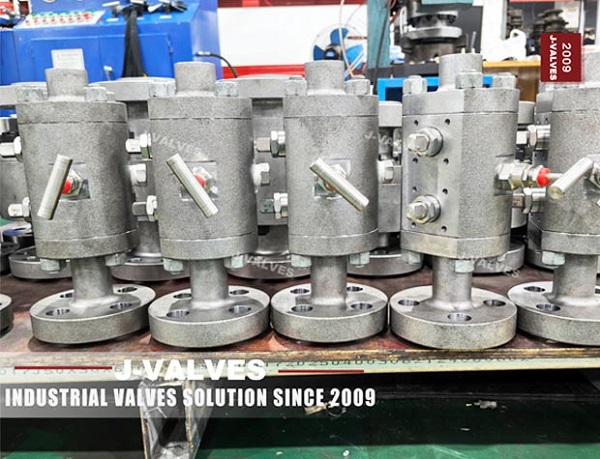

A Double Block and Bleed (DBB) ball valve is designed to provide an extra level of sealing integrity by offering two independent block valves in series, along with a bleed valve. DBB ball valves are primarily used in applications where fluid isolation is crucial for safety, contamination control, and process integrity. They are typically employed in pipeline systems where maintenance, testing, or isolation of sections of the system is required.
A full-bore DBB ball valve has a valve opening that matches the internal diameter of the pipeline, providing an uninterrupted flow path. This design minimizes any pressure loss or turbulence in the system, allowing for smoother flow and reduced friction. Full-bore valves are generally preferred when full flow capacity is required in applications where a minimal flow restriction is essential.
Uninterrupted Flow: Full-bore ball valves offer a continuous flow path, ensuring that there is no obstruction or restriction in the pipeline.
Low Pressure Drop: The wide opening reduces the pressure drop across the valve, making them ideal for systems where maintaining pressure and flow is essential.
Larger Flow Capacity: Suitable for applications where large volumes of fluid need to be transported or where the system requires high flow rates.
Improved Cleaning and Maintenance: Full-bore valves are easier to clean, especially in systems handling large particles or fluids that require frequent maintenance.
Oil and Gas Pipelines: Full-bore valves are used in pipelines where high flow rates and minimal pressure loss are critical.
Chemical and Petrochemical Industry: These valves are commonly found in systems where high-viscosity fluids or large volumes need to be handled with minimal flow restriction.
Water Treatment: Full-bore valves are ideal for large-scale water treatment plants, where high flow and efficient isolation are required.
A reduced-bore DBB ball valve features a valve opening smaller than the internal diameter of the pipeline. While the valve still offers double isolation and a bleed feature, the reduced bore creates a slight restriction in the flow path. This design may increase the pressure drop slightly but offers benefits in certain applications, such as cost-efficiency, space saving, and enhanced control.
Compact Design: The smaller valve opening makes reduced-bore ball valves more compact and easier to install in confined spaces.
Cost-Effective: Reduced-bore valves tend to be more affordable than full-bore variants, especially for smaller systems where the flow restriction does not significantly impact performance.
Moderate Pressure Drop: The reduced diameter can introduce a slight pressure drop, which may be acceptable in applications where flow rate is less critical.
Better for Smaller Systems: Reduced-bore valves are often more suitable for smaller pipelines or systems where flow restriction does not cause major operational issues.
Smaller Pipelines and Systems: Often used in applications where flow is not as high and space constraints are a consideration.
Cryogenic Systems: Reduced-bore valves are sometimes used in cryogenic systems where the design benefits, including reduced size and weight, are essential for handling extreme temperatures.
Sewage and Wastewater Treatment: Suitable for systems where the pressure drop is not critical and where cost efficiency is important.
Feature | ||
Flow Path | Uninterrupted, matching the pipeline diameter | Smaller diameter opening, restricted flow path |
Pressure Drop | Low pressure drop, better for high flow systems | Moderate pressure drop, acceptable in smaller systems |
Size and Weight | Larger, heavier due to the full diameter design | More compact, lighter due to reduced diameter |
Cost | More expensive due to the larger design | More cost-effective, especially for smaller systems |
Maintenance | Easier to maintain, especially for larger systems | May require more frequent maintenance in some cases |
Applications | High-flow systems like oil pipelines and water treatment | Smaller, cost-conscious systems like cryogenics and wastewater treatment |
Choosing the right type of DBB ball valve depends on several factors, including flow requirements, pressure ratings, available space, and cost considerations. Here’s a guide to help you make the right choice:
Consider Flow Rate Requirements:
Full-bore valves are ideal if your system requires high flow rates or minimal pressure loss. They are best suited for large-scale operations such as oil, gas, or chemical pipelines.
Reduced-bore valves are suitable if your system can tolerate a moderate pressure drop, and flow rates are lower. They are more common in smaller or medium-sized systems.
Evaluate Pressure and Temperature Conditions:
If your system operates under high pressures and temperatures, the full-bore valve is often the better choice due to its ability to handle higher flows without significant pressure drops.
For systems with moderate pressure requirements, a reduced-bore valve may be sufficient, offering an easier-to-install, more cost-effective option.
Space Constraints:
If you are working with limited space, a reduced-bore valve may be the best option. Its compact design allows it to fit into smaller installations without compromising too much on performance.
Full-bore valves are bulkier and may require larger space for installation, which could be a limiting factor in smaller systems.
Budget Considerations:
For applications with budget constraints, reduced-bore valves offer a more economical solution while still providing reliable isolation.
However, for critical applications where flow control and minimal restriction are key, investing in a full-bore valve may be more cost-effective in the long term.
Both full-bore and reduced-bore DBB ball valves offer distinct advantages depending on the needs of your system. Full-bore valves provide better flow control and are ideal for high-flow applications, while reduced-bore valves are cost-effective, space-saving, and sufficient for smaller systems with moderate flow demands. By evaluating factors such as flow rate, pressure drop, installation space, and cost, you can select the most suitable valve for your specific application, ensuring long-term reliability and performance.
