Oil & gas exploitation, natural gas refining and deep well transportation systems always operate under ultra-high pressure media. Ordinary low-pressure valves easily suffer from body deformation, internal leakage and safety failures. As a heavy-duty isolation valve specially developed for extreme high-pressure conditions, the 6" 2500LB 5A gate valve is an essential safety core component for high-pressure pipelines and gas processing stations. With 16 years of experience in high-pressure valve manufacturing since 2009, J-VALVES delivers standardized 6-inch Class 2500 5A alloy gate valve solutions for global energy industries.
We break down the product specifications clearly for industrial buyers:
6": Nominal diameter 6 inches, designed for large-flow high-pressure medium transmission pipelines, matching high-volume crude oil and natural gas delivery demands.
2500LB: ASME Class 2500 pressure rating, representing the valve’s maximum rated working pressure of 2500-pound class, exclusively for ultra-high-pressure industrial medium service.
5A: Marking of high-strength alloy body material, with excellent resistance to high temperature, corrosion and sour gas, ideal for acid oil and high-temperature high-pressure pipelines.
Gate Valve: Wedge gate opening & closing structure, dedicated to full open / full close pipeline isolation instead of flow regulation, ensuring safe shutdown and maintenance of high-pressure piping systems.
In short, the 6" 2500LB 5A gate valve is a heavy-duty high-pressure isolation valve with 6-inch bore, Class 2500 pressure rating and 5A alloy casting body, serving as critical cut-off safety equipment for extreme high-pressure industrial systems.
Standard WCB carbon steel and stainless steel valves cannot withstand the huge stress extrusion under 2500LB ultra-high pressure. Our gate valve features an integrally cast 5A special alloy body:
Tensile strength and yield strength far exceed regular carbon steel valves, resisting body deformation under frequent high-pressure shocks.
Outstanding anti-corrosion performance against hydrogen sulfide and sour media, perfectly matching sour natural gas wells in the Middle East and overseas oilfields.
Wide temperature resistance range, no brittle cracking under repeated temperature cycles, eliminating material failure risks after years of continuous operation.
The premium alloy raw material avoids the most common high-pressure valve faults: body cracking and corrosive leakage.
Medium-low pressure gate valves rely on flange gaskets which get eroded and broken easily under 2500LB pressure. J-VALVES 6" 2500LB 5A gate valve adopts pressure self-sealing bonnet design: the higher the medium pressure, the tighter the bonnet sealing surface fits. The sealing performance improves with rising pressure, perfectly meeting Class 2500 bearing requirements. Multi-layer metal spiral gaskets are equipped to eliminate external leakage risks.
Internal leakage is a severe safety hazard for high-pressure pipelines. This valve adopts rigid single wedge gate, with micro-level precision lapping between gate and seat. Zero internal leakage is guaranteed under rated 2500LB pressure. Built-in gate guide slots prevent gate offset caused by high-pressure medium impact, maintaining stable sealing performance after thousands of opening & closing cycles.

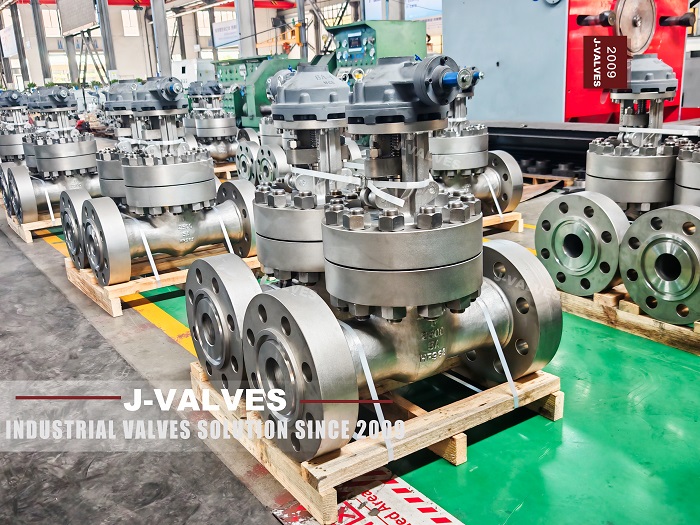

Founded in 2009, J-VALVES owns complete industrial chains including alloy casting workshop, precision CNC machining workshop, automatic assembly line and high-pressure testing laboratory. The whole production process of 6-inch Class 2500 heavy-duty gate valves — 5A alloy smelting, body casting, numerical control finishing and actuator assembly — is finished in-house without outsourcing. Strict tolerance control ensures consistent pressure resistance and dimensional accuracy of every high-pressure valve. All finished heavy-duty valves in our factory workshop are produced by our independent production lines, supporting bulk delivery for large overseas energy projects.
All Class 2500 gate valves comply with API 598 international valve inspection standards. Every 6" 2500LB 5A gate valve undergoes three mandatory tests before shipment:
1. Hydrostatic shell strength test: 1.5 times rated 2500LB pressure holding test to verify zero body leakage and deformation.
2. Seat tightness air test: 1.1 times working pressure air tightness inspection to control internal leakage rate.
3. Actuator cycle durability test: Simulate tens of thousands of switch cycles to confirm stable operation under high pressure.
All test records are archived, with original test reports provided to meet acceptance standards of global energy projects.
A large natural gas purification plant in the Middle East operates high-pressure gathering pipelines conveying hydrogen sulfide-containing natural gas, with steady working pressure between 2200LB and 2400LB. Previously adopted ordinary carbon steel high-pressure gate valves frequently suffered body corrosion and seat internal leakage, resulting in costly pipeline shutdown maintenance.
The project chose customized J-VALVES 6" 2500LB 5A gate valves. Supported by 5A sulfur-resistant alloy material and self-sealing wedge structure, the valves have operated for 3 years without leakage or body damage, drastically cutting maintenance frequency and securing safe isolation of high-pressure natural gas transportation. The client placed repeat bulk orders for subsequent expansion projects.
We focus on R&D and manufacturing of Class 1500/2500/4500LB gate valves, ball valves and globe valves for oil, gas and power industries. Unlike general low-pressure valve manufacturers, we master mature technical designs for pressure bearing and anti-corrosion of Class 2500 heavy-duty valves, familiar with medium characteristics and international standards of high-pressure working conditions worldwide.
We provide flexible customization to meet various overseas project demands: upgraded body alloy materials, matching manual / pneumatic / electric actuators, ASME B16.5 & API 6D flange standards, special anti-corrosion coatings, extended valve stems and more. The 6" 2500LB 5A gate valve’s internal structure can be adjusted according to pipeline medium, temperature and pressure parameters to fit unique project working conditions.
Our valves are exported to oil & gas projects across the Middle East, Southeast Asia and Central Asia. We are fully experienced in international customs clearance, engineering drawing communication, third-party inspection supervision and cross-border logistics delivery. Complete export documents including English technical drawings, material certificates, test reports and API certifications are supplied for overseas EPC contractors.
For extreme Class 2500 high-pressure applications such as oil extraction, natural gas treatment and high-pressure chemical pipelines, valve reliability in sealing, material and structure directly determines the safety of the entire production line. The 6" 2500LB 5A gate valve acts as an irreplaceable safety isolation component with high-strength alloy substrate and pressure self-sealing wedge design.With self-owned full industrial chain, rigorous testing system and proven overseas project delivery experience, J-VALVES continuously supplies durable Class 2500 high-pressure gate valve solutions for the global energy sector. Contact us anytime to obtain technical datasheets, customized quotations and project case documents for 6-inch 5A high-pressure gate valves.
