Wrong Selection Causes Rework? How To Match A 5A Material 300LB Gate Valve with GB And ASME Pipelines?

In industrial projects, valve selection may look like a small detail, but it often becomes one of the biggest causes of rework during installation. Mismatched flanges, pressure class conflicts, inconsistent face-to-face dimensions, and incompatible sealing standards can all delay the schedule and increase project cost.

For systems that involve both GB and ASME pipelines, matching a 5A material 300LB gate valve requires more than choosing a valve with the right size. It requires a clear understanding of standards, dimensions, pressure ratings, and operating conditions.

I. Why does poor selection lead to rework?

In many projects, the problem is not valve quality. The real issue is standard mismatch.

Common causes of rework include:

• Choosing only by nominal size and ignoring pressure class

• Selecting 300LB without checking flange standard

• Mixing GB and ASME connection requirements

• Face-to-face dimensions not matching the pipeline layout

• Material being acceptable in name but unsuitable for the actual media or temperature

A valve is not correctly selected just because it can be installed. It must match the system in standard, size, material, and service condition.

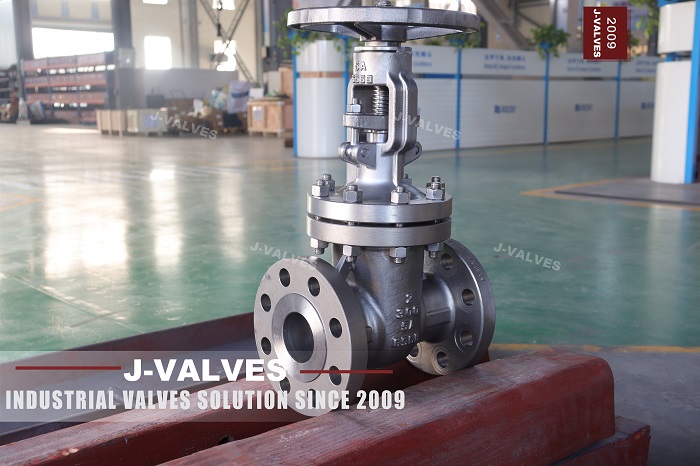

II. What is a 5A material 300LB gate valve suitable for?

If a project specifies a “5A material 300LB gate valve,” it usually indicates a valve designed for moderate to high pressure service with stronger adaptability in industrial applications. The 300LB rating belongs to the ASME pressure class system and is commonly used in energy, chemical, pipeline, and utility projects.

However, the meaning of “5A material” may vary depending on project specifications, company standards, or engineering drawings. In real procurement work, it should always be verified together with:

• Body material grade

• Stem material

• Seat and sealing material

• Operating temperature range

• Media corrosiveness

• Special requirements such as fire-safe, anti-static, or corrosion-resistant design

Reliable selection is not just about the material name. It is about matching the material with the service condition.

III. What is the difference between GB and ASME pipelines?

To make a 300LB gate valve work smoothly in different pipeline systems, the standard differences must be understood first.

1. Pressure systems are different

ASME uses pressure class ratings such as 300LB, while GB systems often use PN ratings. They should not be treated as direct equivalents. Temperature and material rating must be checked carefully.

2. Flange standards are different

ASME flanges and GB flanges may differ in bolt hole pattern, bolt circle, thickness, and sealing face type, even when the nominal size is the same.

3. Dimensional standards are different

Face-to-face length, end connection dimensions, handwheel clearance, and installation height can all affect field installation.

4. Sealing faces and connection types may differ

Flat face, raised face, tongue-and-groove, or ring-type joint designs must be confirmed in advance to avoid installation failure.

IV. How to match a 5A material 300LB gate valve with GB and ASME pipelines

To avoid rework, the selection process should follow a clear checklist.

1. Confirm the pipeline standard first

Identify whether the project follows GB, ASME, or a mixed standard system. Confirm the requirements for the main line, branch line, equipment nozzle, and valve ends.

2. Verify the pressure class

A 300LB rating cannot simply replace a PN rating. It must be evaluated based on design pressure, design temperature, and the pressure-temperature rating of the selected material.

3. Check flange dimensions

Pay attention to:

• Nominal diameter

• Flange standard

• Bolt hole quantity and bolt circle

• Sealing face type

• Flange thickness and outside diameter

Any mismatch here may prevent proper installation.

4. Verify face-to-face dimensions

Incorrect face-to-face dimensions can affect replacement work, insulation layout, support spacing, and maintenance access.

5. Check material compatibility with the media

For corrosive fluids, high-temperature steam, slurry service, or frequent operation, material selection must consider corrosion resistance, strength, and sealing life.

6. Review standards and certification documents

A qualified valve should come with complete technical documentation, including material certificates, pressure test records, inspection reports, and compliance statements.

V. Four details that are often overlooked

1. Size is not everything

DN and NPS both indicate size, but they belong to different systems and should not be used interchangeably without verification.

2. Pressure alone is not enough

Pressure class performance changes with temperature.

3. The valve must match the whole piping system

A valve is only correct when it fits the full system, not just the valve itself.

4. Low price does not mean low total cost

A cheaper purchase can still lead to rework, downtime, and replacement costs later.

VI. How to reduce rework risk

To ensure the 5A material 300LB gate valve matches GB and ASME pipelines correctly, it is best to complete these steps before purchasing:

• Define the project standard system clearly

• Align drawings, technical specifications, and procurement documents

• Confirm flange and connection dimensions in advance

• Review material compatibility with the media

• Request full technical data from the supplier

• For critical projects, perform drawing review or sample confirmation first

Solving the problem early is always cheaper than fixing it on site.

VII. Conclusion

A 5A material 300LB gate valve is not a universal “fit-and-forget” item. The real key is whether it matches the pipeline standard, pressure class, flange dimensions, and service condition.
For engineering projects, one correct selection is worth far more than repeated rework. When the standards are aligned and the parameters are matched, the valve becomes a reliable part of the system.

If your project involves mixed GB and ASME pipelines, start with standard and dimension matching before discussing material or price.
