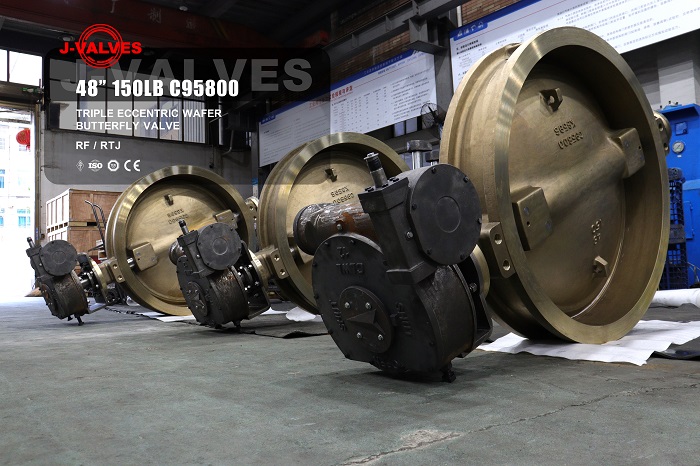

What To Do When A 48" 150LB C95800 Triple Eccentric Wafer Butterfly Valve Has Excessive Operating Torque in Large-Diameter Pipelines

Introduction: Why Torque Becomes a Bigger Issue in Large-Diameter Pipelines

In large-diameter pipeline systems, a valve must do more than simply open and close. For a 48" 150LB C95800 Triple Eccentric Wafer Butterfly Valve, operating torque has a direct impact on field operation, automation performance, and long-term reliability.

Many projects focus only on size, pressure class, and material during the early selection stage, while torque is overlooked. Problems such as difficult operation, actuator overload, and accelerated seat wear usually appear later, when the system is already in service.

1. Common Signs of Excessive Torque

The following symptoms usually indicate that the valve needs closer inspection:

• Manual operation feels unusually heavy

• Electric or pneumatic actuators respond slowly or trigger alarms

• Opening starts hard and becomes inconsistent during travel

• Sealing surfaces wear faster than expected

• Noise, vibration, or intermittent sticking appears in service

These symptoms are often caused by a combination of design, installation, media, and actuator factors.

2. Why a 48" 150LB Triple Eccentric Butterfly Valve May Develop High Torque

1. High friction in the sealing pair

Triple eccentric design helps reduce friction during opening and closing, but poor sealing surface matching or insufficient machining accuracy can still increase resistance.

2. Pipeline stress affects valve movement

Large valves are heavy. If flange alignment is poor, piping stress is excessive, or support is insufficient, the disc may experience side loading during operation, which increases torque.

3. Complex media conditions

If the medium contains particles, deposits, crystallized matter, or high viscosity components, resistance between the disc and seat can rise over time.

4. Undersized actuator selection

Some projects try to reduce cost by selecting an actuator with too little margin. For large-diameter butterfly valves, actuator reserve is critical.

5. Improper installation and commissioning

Incorrect installation direction, uneven bolt tightening, poor limit settings, or inaccurate travel calibration can all increase real operating torque.

6. Material not fully matched to the service condition

C95800 offers strong corrosion resistance and is suitable for many marine, chemical, and industrial applications. However, actual service conditions still need to be evaluated carefully. If the application is more abrasive or highly viscous, torque control becomes more difficult.

3. What to Do When Operating Torque Is Too High

1. Recalculate the real torque requirement

Do not rely on nameplate data alone. Recheck torque under actual operating conditions, including:

• Initial breakaway torque

• Running torque

• Seat friction torque

• Media adhesion resistance

• Safety margin

For large-diameter projects, torque calculation should be part of the design stage, not a later correction.

2. Optimize sealing design and material pairing

If friction is too high, the sealing pair should be reviewed:

• Check sealing surface accuracy

• Improve seat material compatibility

• Reduce unnecessary interference

• Choose a lower-friction or more wear-resistant solution when the service requires it

3. Verify piping alignment and support

Large-diameter butterfly valves depend heavily on installation quality. Check for:

• Pipe misalignment

• Non-parallel flanges

• External loads on the valve body

• Improper support or lifting points

In many cases, “high torque” is actually a piping stress issue.

4. Match the actuator properly

Actuator sizing should not be based on diameter alone. It should be selected from the actual torque curve and duty cycle. When needed:

• Increase output torque rating

• Add a larger safety margin

• Verify power or air supply performance

• Optimize coupling and control logic

5. Perform pre-commissioning tests

Before startup, carry out a full stroke test and observe:

• Whether breakaway torque is abnormal

• Whether sticking occurs during travel

• Whether end-of-travel sealing is too tight

• Whether repeated cycling increases torque

This helps identify hidden issues before handover.

6. Select the right valve from the beginning

For large-diameter pipeline applications, the most economical solution is not to fix problems later, but to select the right valve at the start. Key selection points include:

• Media type and solids content

• Temperature and pressure range

• Operating frequency

• Sealing performance requirement

• Automation requirement

• Corrosion, erosion, or impact conditions

4. Why Triple Eccentric Design Is Suitable for Large-Diameter Service

Compared with conventional butterfly valves, a triple eccentric design allows the disc to disengage from the seat more gradually during operation. This makes it especially useful in large-diameter, high-pressure, or high-performance sealing applications.

However, structural advantages do not eliminate the need for proper selection. Only when material, machining, installation, and actuator matching are all correct can the design deliver stable performance.

5. Five Questions to Confirm During Project Selection

When purchasing a 48" 150LB C95800 Triple Eccentric Wafer Butterfly Valve, it is recommended to confirm the following:

1. What is the actual torque under design conditions?

2. Does the medium contain particles, deposits, or corrosive components?

3. Does the installation environment allow proper support and alignment?

4. Is the actuator sized with enough margin?

5. Will the valve cycle frequently or require remote operation?

Answering these questions early can prevent many downstream risks.

6. Conclusion

Excessive operating torque in a 48" 150LB C95800 Triple Eccentric Wafer Butterfly Valve is usually not caused by a single part. It is often the result of combined effects from selection, structure, installation, media, and actuation.

By recalculating torque properly, optimizing sealing and installation, and matching the right actuator, most issues can be significantly improved.

For projects that value stability, delivery efficiency, and long-term reliability, the real question is not whether the valve can open, but whether it can keep opening reliably over time.

Stay connected with our website for more content on large-diameter valve selection, service-condition analysis, and application optimization.

Optional FAQ

Q1: What is the most common cause of excessive torque in large butterfly valves?

The most common causes are piping stress, high seal friction, and insufficient actuator margin.

Q2: Does a triple eccentric butterfly valve always require less torque?

Not always. It usually helps reduce friction, but the final result still depends on service conditions, machining accuracy, installation quality, and actuator selection.

Q3: What should be checked first when torque is already too high on site?

Start with piping alignment, flange stress, actuator capacity, and the condition of the sealing pair.
