26” 150LB C95800 Triple Eccentric Wafer Butterfly Valve ASME B16.34 for Offshore & Energy Pipeline

I.  Why Specify C95800 Triple Eccentric Wafer Butterfly Valve for Demanding Offshore‑Energy Piping

Offshore platforms, coastal energy facilities and marine‑based energy pipelines operate under harsh service conditions: high‑chloride seawater, heavy salt spray, pipeline vibration and cyclic temperature variation. Ordinary carbon steel and standard stainless‑steel valves often suffer pitting corrosion, crevice corrosion and premature sealing failure. Maintenance and component replacement offshore generate extremely high operational cost and unplanned downtime risks.

For large‑size 26‑inch Class150 piping, designers require both high flow capacity and reliable shut‑off plus throttling performance. Built to ASME B16.34 pressure‑temperature rating standard, the C95800 nickel‑aluminum bronze triple‑offset wafer butterfly valve addresses those marine‑pipeline pain points. It is widely deployed in seawater service, ballast‑water circuits, fire‑water lines and auxiliary process piping for oil‑and‑gas energy projects.

All J‑VALVES units undergo shell hydrostatic test and seat leakage test per ASME B16.34. Test documentation supports third‑party inspection and owner acceptance, helping projects satisfy international EPC bidding requirements by adopting globally‑recognized ASME standard authority.

II.  What ASME B16.34 Means for 26" Class 150 C95800 Butterfly Valve

2.1 Authority and scope of ASME B16.34

ASME B16.34 is the globally‑acknowledged design specification for industrial valves within petrochemical and offshore industries. It defines pressure‑temperature ratings, material requirements, inspection procedures and pressure‑boundary rules. Compliance with ASME B16.34 is frequently specified in offshore‑project tender documents, streamlining technical review for international EPC procurement workflows.

2.2 Key technical implementation for this 26‑inch 150LB C95800 valve

1. Pressure‑temperature rating: Class 150 rating follows ASME B16.34 material temperature‑pressure curve for C95800 nickel‑aluminum bronze to define maximum allowable working pressure across operating temperature range;

2. Shell integrity: Pressure‑containing components pass shell hydrostatic test per standard requirements;

3. Seat performance: Bi‑directional seat leakage test to meet metal‑seated low‑leakage criteria;

4. Material traceability: C95800 (ASTM B148) nickel‑aluminum bronze material certification is supplied to prevent material substitution risk for chloride‑rich seawater service.

Flange interface complies with ASME B16.5 Class150 for convenient field bolting against standard pipeline flanges.

III.  C95800 Nickel‑Aluminum Bronze: Core Material Benefits for Marine Environment

C95800 nickel‑aluminum bronze is a proven high‑performance copper‑based alloy for marine fluid handling:

1. Superior chloride‑corrosion resistance: resists seawater‑induced pitting and crevice corrosion, extends service cycle and cuts expensive offshore maintenance interventions;

2. Biofouling resistance: discourages marine organism accumulation such as shell and algae growth that may reduce pipe flow area;

3. High strength & toughness: tolerates offshore pipeline vibration and mechanical shock, resisting body cracking and deformation;

4. Erosion resistance: performs well for sediment‑bearing circulating seawater with particle impingement.

For this large‑size 26‑inch butterfly valve, body and disc are cast from solid C95800 nickel‑aluminum bronze. Monel K400 shaft option is available to further boost component service life under aggressive seawater conditions.

IV.  Sealing & Installation Advantages of Triple‑Offset Wafer Construction

1.  Triple‑offset metal‑to‑metal sealing principle

Triple offset geometry eliminates sealing‑surface friction during valve opening and closing, minimizing seat‑disc wear. When fully closed, actuator torque compresses the metal‑seal pair to achieve bi‑directional tight shut‑off with low leakage. This design supports both isolation and throttling duties for large‑size marine piping, effectively extending valve operational lifespan.

2.  Wafer‑style body for 26‑inch large‑bore installation

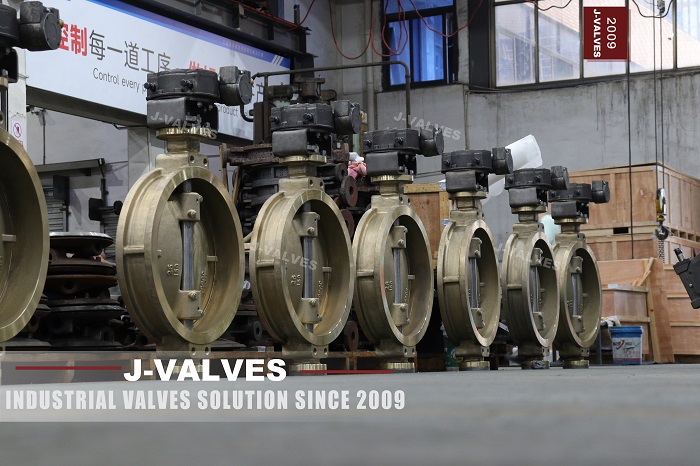

Wafer‑type body features compact dimension with lighter weight compared to flanged butterfly valves, saving valuable footprint on offshore topside modules. The wafer valve fits between two mating ASME B16.5 Class150 pipeline flanges and is secured by full‑length through bolts. It can be fitted with gear manual operator or electric actuator for remote automated operation. As shown in workshop batch production photos, large‑bore bronze triple offset butterfly valves can be delivered for large‑scale project orders.

V.  Typical Application Areas

1. Offshore oil & gas platforms: seawater cooling circuits, ballast‑water systems, fire‑water service and utility process isolation;

2. Coastal energy installations: seawater intake systems for LNG terminals and coastal power plants;

3. Marine vessels & offshore units: ballast and seawater piping on large marine construction vessels;

4. Desalination projects: large‑bore seawater pipeline isolation valves.

VI.  Procurement & Project Support

For offshore‑energy projects, J‑VALVES can deliver ASME B16.34 test reports, material traceability certificates and support third‑party witnessed inspection. Customization is available for this 26" 150LB C95800 triple eccentric wafer butterfly valve, including actuator selection and sealing‑pair modification to match special project operating conditions.

If you are sourcing ASME‑compliant large‑bore corrosion‑resistant butterfly valves for offshore and energy pipeline projects, please contact us for datasheets, general arrangement drawings and quotation.
