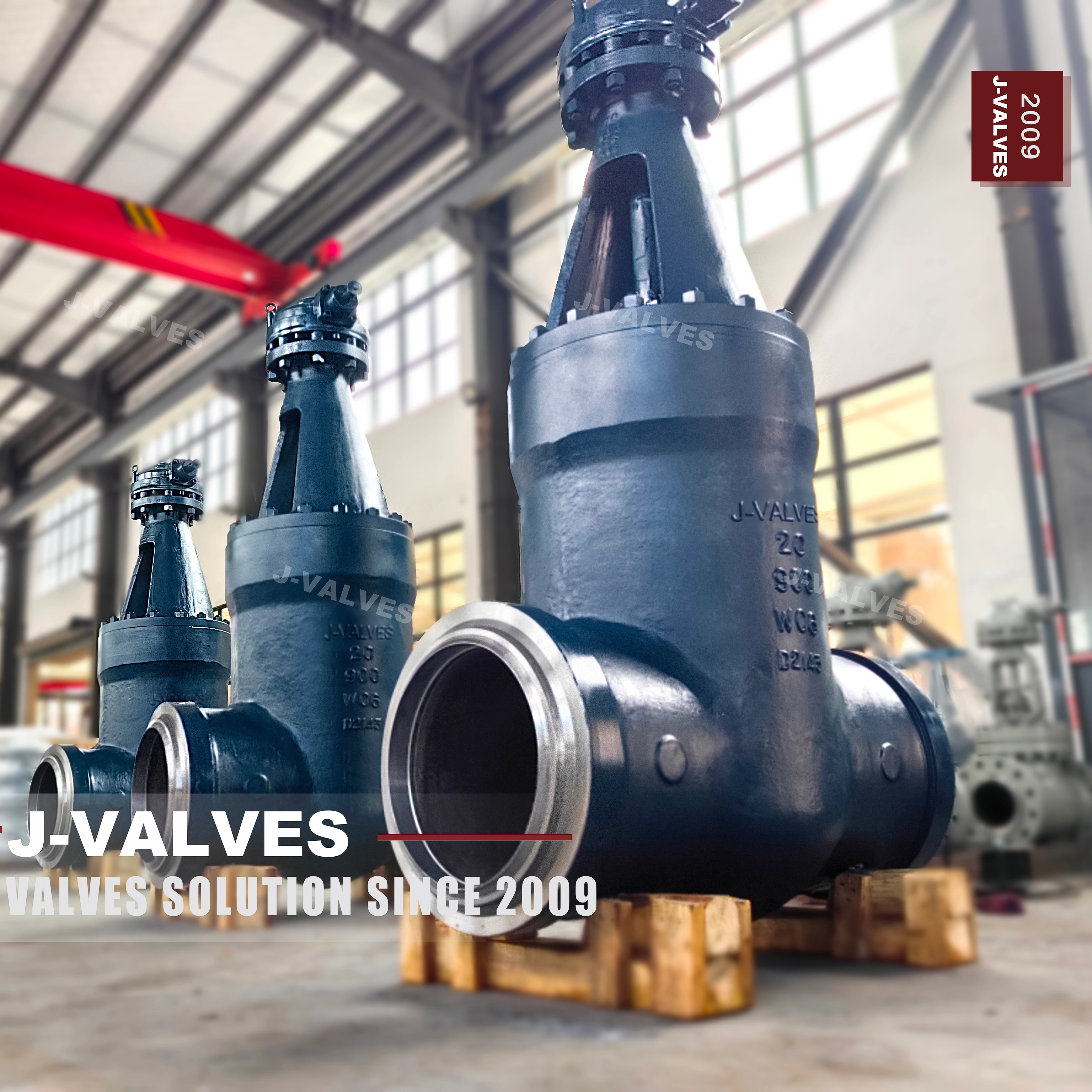

20" 900LB High-Pressure Socket-Weld Gate Valve: Applicable Environments and Working Conditions

20" 900LB High-Pressure Socket-Weld Gate Valve: Applicable Environments and Working Conditions

1.High-Pressure Socket-Weld Gate Valve Operating Environments

Pressure Range: Designed for high-pressure systems rated to ANSI 900LB (Class 900), with a maximum pressure capacity of ~1500 psi (103 bar) at ambient temperature.  Suitable for steady or fluctuating high-pressure conditions.

Temperature Range: Operates effectively within -29°C (-20°F) to 538°C (1000°F), depending on material (e.g., ASTM A105 carbon steel, SS316, or alloy steels).

Media Compatibility: Handles diverse fluids, including steam, oil, gas, water, and mildly corrosive chemicals, provided valve materials are chemically compatible with the media.

Industry Applications: Common in compact high-pressure systems such as chemical processing, hydraulic systems, power plants, offshore platforms, and instrumentation lines.

2.High-Pressure Socket-Weld Gate Valve Working Conditions

Flow Control: Primarily used for on-off isolation in high-pressure systems;  not designed for throttling or frequent cycling.

Connection Type: Socket-weld ends allow semi-permanent, leak-resistant installation in smaller-bore or space-constrained piping systems.  Ideal for high-vibration or thermal-expansion environments.

Sealing Performance: Provides reliable shutoff in high-pressure applications, though slightly less robust than butt-weld valves under extreme mechanical stress.

Standards Compliance: Meets API 602 (compact valves), ASME B16.11 (socket-weld fittings), and ASME B16.34 (pressure-temperature ratings).

3.High-Pressure Socket-Weld Gate Valve Harsh Environment Suitability

Resilient to pressure surges and moderate mechanical stress.

Optional corrosion-resistant materials (e.g., stainless steel, Inconel) enhance performance in acidic, marine, or high-moisture environments.

Compact design suits confined spaces, such as skid-mounted systems or subsea equipment.

1.High-Pressure Socket-Weld Gate Valve Maintenance Considerations

Socket-weld connections require skilled welding for installation and are less accessible for disassembly compared to flanged valves.

Minimal maintenance in stable systems but may require inspection in abrasive media or cyclic thermal conditions.

Not recommended for systems requiring frequent modifications;  flange-end or threaded valves are preferable for such cases.

This valve is ideal for high-pressure, compact systems where space efficiency, leak resistance, and permanent installation are prioritized over modularity.  It balances strength and practicality in critical but static applications.
