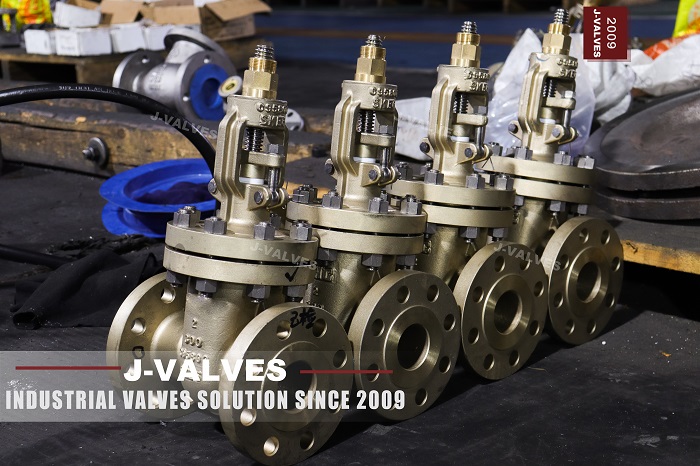

In our in‑house manufacturing workshop, finished 2‑inch Class 300LB C95800 flanged gate valves are displayed. It presents complete appearance after casting machining, component assembly and pre‑delivery preparation.
C95800 is high‑grade aluminum‑bronze alloy. It delivers excellent resistance to seawater corrosion, erosion and cavitation. This material is widely adopted for marine platforms, ship piping, seawater desalination and brine circulation pipelines.
Many buyers only focus on size and pressure class while ignoring material grade & manufacturing codes, which will cause body rusting, seat leakage and short service life in corrosive service. With over‑years experience in industrial valve engineering, J‑VALVES strictly follows international codes for full‑range production of 2" Class300 C95800 gate valves. Every unit from our workshop keeps full material traceability and process control.
Nominal size 2 inch, pressure rating Class 300LB. Flange dimensions follow ASME B16.5. Valve design, wall thickness and pressure‑temperature ratings comply with ASME B16.34.
Different from WCB carbon steel valves, C95800 aluminum bronze owns its unique pressure‑temperature rating curve. Manufacturers cannot simply copy parameters for carbon‑steel gate valves.
C95800 bronze casting complies with ASTM B148 standard. The alloy contains aluminum, iron and nickel elements, performing much better against pitting and crevice corrosion than ordinary brass. Valve body and wedge are C95800 cast bronze. Stem is matched bronze or stainless steel for brine and seawater media, preventing rapid corrosion compared with carbon‑steel valves.
This is outside screw & yoke (OS&Y) flanged gate valve with bolted bonnet. After assembly, each valve undergoes shell hydro‑static test and seat tightness test per API 598 valve inspection & testing standard. RF raised‑face flange design ensures easy field piping connection.
1. Shipboard seawater cooling pipeline systems
2. Off‑shore marine platform brine & seawater transfer
3. Seawater desalination plant brine isolation service
4. Dock water‑treatment and mild‑corrosive brine process
Note: C95800 aluminum bronze excels for seawater environment. It is NOT recommended for strong acid or strong alkali conditions. Confirm medium composition and operating temperature before final selection.
These pictures are taken inside J‑VALVES production facility. Real finished‑product photos demonstrate assembly workmanship and machining accuracy.
When sourcing bronze gate valves, do not judge merely by quotation. Always verify material test report, C95800 grade certificate, ASME B16.34 compliance and API 598 test documentation.
Founded in 2009, J‑VALVES provides complete industrial valve solutions. We supply full series C95800 aluminum‑bronze gate valve, globe valve and check valve. Material certificates and test reports are available for marine & seawater‑treatment projects.
If you are searching for reliable supplier of 2" 300LB C95800 gate valve, contact J‑VALVES for datasheet, quotation and full material documentation.
