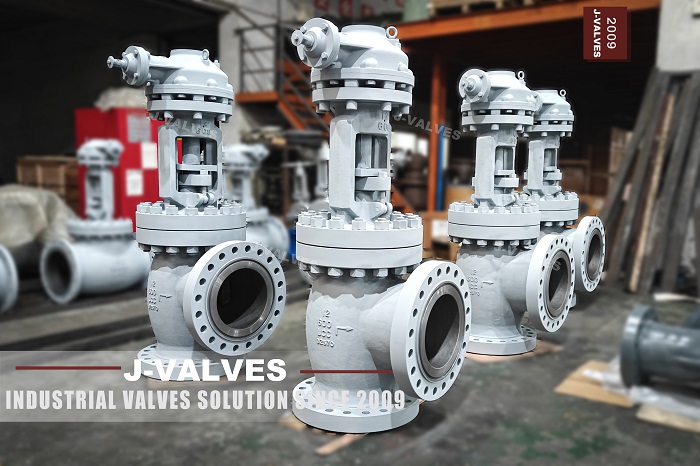

12" 600LB LCC Cryogenic Angle Globe Valve: Your Core Safety Solution for LNG & Cryogenic Applications

In LNG terminals, ethylene plants, and industrial gas cryogenic systems, valve reliability is non-negotiable. A single failure in deep cold service can trigger costly shutdowns, safety hazards, and environmental risks. The 12" 600LB LCC cryogenic angle globe valve from J-VALVES is engineered to solve these challenges, combining robust low-temperature performance, zero-leak sealing, and API/ASME compliance to deliver long-term stability in the harshest cryogenic environments.

1. Compliance & Core Specifications: Built to International Standards

Every J-VALVES 12" 600LB LCC cryogenic angle globe valve is designed, manufactured, and tested to meet the most rigorous global standards, ensuring safety and interchangeability in global projects:

Why LCC Material?

ASME SA352 LCC is purpose-built for cryogenic service, with strict low-temperature impact testing (-46°C Charpy V-Notch) to eliminate brittle fracture risks common in standard carbon steels. This ensures the valve maintains ductility and structural integrity even at sub-zero temperatures, preventing catastrophic failures in LNG and ethylene applications.

2. Key Design Advantages for Cryogenic Service

Superior Low-Temperature Toughness

Unlike conventional valves that suffer from cold-induced brittleness, our LCC cryogenic angle globe valve undergoes:

• 100% low-temperature impact testing to verify material performance at -46°C

• Special cryogenic treatment for internal parts to prevent galling and stem seizure at low temperatures

• Stress-relieved machining to eliminate residual stresses that could lead to cracking under thermal cycling

Optimized Angle Flow Design

The angle-style body offers unique benefits for cryogenic piping systems:

• Changes fluid direction 90° to eliminate the need for additional elbows, reducing system pressure drop and erosion

• Minimizes turbulence in LNG and ethylene lines, preventing cavitation and wear on valve internals

• Simplifies piping layouts in tight terminal or plant spaces, lowering installation costs

Zero-Leak Cryogenic Sealing System

The biggest pain point in cryogenic valves is seal failure due to frost buildup and packing hardening. Our solution includes:

• Extended bonnet design: Isolates the packing gland from cryogenic media, preventing frost formation and packing degradation

• Flexible seat sealing: Stainless steel sealing surfaces paired with cryogenic-grade soft seals achieve bidirectional zero leakage, meeting BS 6364 cryogenic valve standards

• Anti-static and anti-blowout stem: Prevents stem ejection and ensures electrical continuity, eliminating static discharge risks in flammable LNG service

Easy Maintenance & Versatile Operation

• Flanged end connections allow quick disassembly for inspection and maintenance, reducing downtime in critical LNG facilities

• Optional actuation: Manual gear, electric, or pneumatic actuators are available to suit remote control and frequent operation requirements

• Full traceability: All materials and tests are documented, supporting compliance audits for global oil and gas projects

3. Ideal Applications for the 12" 600LB LCC Cryogenic Angle Globe Valve

This valve is purpose-built for the most demanding cryogenic fluid control tasks, including:

• LNG Terminals & Liquefaction Plants: Flow and pressure control in LNG storage, loading, and transfer lines

• Ethylene/Propylene Petrochemical Plants: Control of cryogenic olefin streams at temperatures down to -101°C

• Industrial Gas Cryogenic Systems: Nitrogen, oxygen, and argon processing and distribution

• Deep Cold Pipeline Networks: Cryogenic fluid transmission in refineries and chemical complexes

4. Real-World Success Story: Solving LNG Terminal Seal Failures

A major coastal LNG terminal in China faced repeated shutdowns due to seal failures in imported cryogenic angle globe valves operating at -162°C. The valves suffered from packing hardening and leakage after just 12 months of service, threatening the terminal’s uptime and safety.

J-VALVES provided a customized solution with the 12" 600LB LCC cryogenic angle globe valve, optimized with:

• Extended bonnet and insulated packing gland to isolate cryogenic media

• Enhanced flexible seat seals for bidirectional zero leakage

• LCC body with advanced low-temperature impact resistance

Since commissioning, these valves have operated continuously for over 3 years with zero leaks or failures, eliminating costly downtime and earning the client’s trust for future expansion projects.

5. How to Select the Right Cryogenic Angle Globe Valve for Your Project

When choosing a cryogenic globe valve, focus on these critical factors to avoid costly mistakes:

1. Verify Material Compliance: Ensure the body material meets ASME SA352 LCC standards with documented low-temperature impact test reports

2. Confirm Design Standards: Prioritize valves certified to API 6D and ASME B16.34 for pressure-containing integrity

3. Evaluate Sealing Design: Look for extended bonnet and cryogenic-grade packing systems to prevent frost-related failures

4. Check Testing Records: Require API 598 test reports for shell strength and seal performance

5. Partner with Experienced Suppliers: Choose manufacturers with proven track records in LNG and cryogenic projects, like J-VALVES with 17+ years of industrial valve expertise

Partner with J-VALVES for Reliable Cryogenic Valve Solutions

At J-VALVES, we combine API/ASME compliance, advanced cryogenic engineering, and rigorous quality control to deliver valves that perform when it matters most. Our 12" 600LB LCC cryogenic angle globe valve has been validated in LNG, petrochemical, and industrial gas projects worldwide, providing peace of mind for critical cryogenic operations.

Contact our engineering team today to discuss your specific cryogenic fluid control requirements or request a customized quote for your project.
