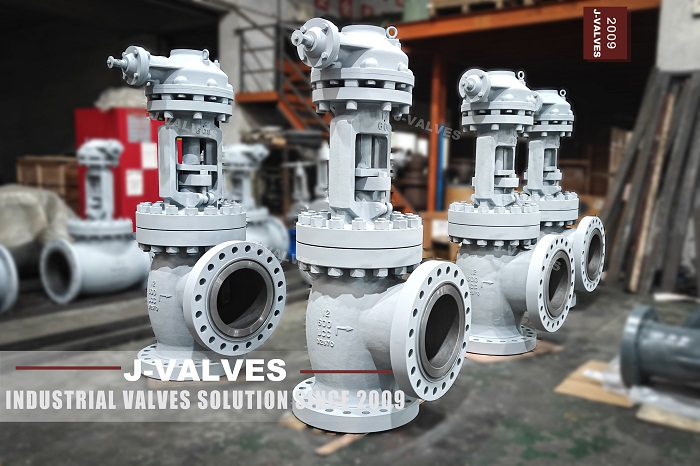

A 12" 600LB LCC angle globe valve adopts angle‑pattern flow path to change fluid direction, reducing pressure drop and saving installation footprint. LCC (Low‑Carbon Cast Steel) delivers reliable toughness under cryogenic temperature down to ‑46℃, preventing brittle fracture common for ordinary carbon steel.
This gear‑operated large‑size angle globe valve is widely deployed in LNG plants, petrochemical complexes, natural gas processing and cryogenic process piping. The angular body design simplifies pipeline layout for heavy‑duty Class 600 service.
API 6FA is the global fire‑safe standard for industrial valves for oil & gas industry. It verifies valve sealing performance after non‑metallic packing and gaskets are burned out under fire exposure. Even in fire accident, metal‑to‑metal seat can limit hazardous fluid release and mitigate secondary explosion risks.
For large‑bore 12‑inch 600LB cryogenic angle globe valves in refineries and gas terminals, fire hazard assessment is essential. Note that API 6FA certification means the valve has passed standardized fire test, but it still needs proper selection according to real‑world site conditions. Many international EPC projects make API 6FA a mandatory requirement for hydrocarbon service.
ISO 15848 is the prevailing fugitive emission standard regulating tiny stem leakage of volatile organic compounds.
ISO 15848‑1: Type‑approval lab test with thousands of mechanical cycles plus temperature variation.
ISO 15848‑2: Production‑site leakage inspection for every finished unit.
Under cryogenic service, valve packing tends to shrink and create invisible micro‑leakage. Performance class B is the strictest grade for ISO15848, preferred for EU and North America environmental‑sensitive projects.
Important distinction: API 6FA targets post‑fire emergency sealing; ISO 15848 controls routine fugitive emission. Neither can replace the other.
1. ASME B16.34: Defines pressure‑temperature rating for LCC cast steel under Class 600.
2. API 600: General specification for steel valves, frequently referenced for material and bolt requirements.
3. Cryogenic test per BS6364 / GB/T 24925: Mandatory Charpy impact test for LCC material, anti‑cold‑bridge packing and body cavity relief design for cryogenic service.
Certifications are independent. A 12‑inch 600LB angle globe valve can hold one certificate without automatically complying with other standards.
Standard | Core Function | Typical Application | Project Mandatory Trend |
API 6FA | Fire‑safe performance after fire exposure | Refinery, gas plant with fire risk | Frequently required by international EPC |
ISO 15848‑1 | Fugitive emission type test | Natural gas, VOC‑containing fluid | Required for EU & US environmental projects |
ISO 15848‑2 | 100% production fugitive emission check | Mass chemical project orders | Demanded by some fine‑chemical buyers |
LCC Charpy impact test | Prevent brittle fracture at low temperature | LNG & cryogenic piping | Must‑have for below ‑29℃ service |
ASME B16.34 | Pressure‑temperature boundary | All ASME class valves | Base standard for US‑spec valves |
Pitfall #1: API 6FA fire‑safe certificate equals ISO15848 low‑emission performance.
Correction: API 6FA tests metal sealing after burning non‑metallic parts; ISO15848 measures micro‑leakage under normal operating conditions. Test protocols are completely separate.
Pitfall #2: LCC material grade means full cryogenic certification.
Correction: LCC is only material grade. Charpy impact test report is compulsory to validate cryogenic suitability.
Pitfall #3: Accept generic certificate copies without checking scope.
Correction: Many certificates only cover small sizes. Confirm the certificate explicitly includes 12‑inch Class 600 angle globe valve.
Request full package (API 6FA + ISO15848 + LCC cryogenic impact report) if your project matches below conditions:
Media: natural gas, liquefied hydrocarbon or volatile oil;
Site carries fire & explosion risk;
Local regulation restricts VOC fugitive emission;
Operating temperature drops to ‑29℃ or lower.
For non‑flammable cryogenic water service, only LCC impact test is sufficient.
For 12" 600LB LCC cryogenic angle globe valve, API 6FA safeguards fire‑accident safety, ISO15848 controls routine fugitive emissions, and LCC low‑temperature impact secures material integrity. Each certification addresses separate risks. Buyers should verify certificate scope matches exact valve size and pressure class for long‑term pipeline reliability.
