Petrochemical pipelines operate under complex service environments, carrying oil‑gas mixtures and process fluids with temperature variation, pressure fluctuation, high‑velocity medium erosion and thermal stress.
Ordinary industrial valves tend to suffer seal leakage, body erosion, stem sticking and short service life. Valve failure may cause unplanned shutdown, safety risks and high maintenance costs.
For this reason, petrochemical projects set strict requirements on valve material, structural design, manufacturing standards and sealing performance. The 10‑inch Class150 WCB flanged globe valve is a widely‑adopted large‑size valve for petrochemical piping systems.
WCB is carbon steel casting per ASTM A216, commonly used for valves in refinery and petrochemical plants for oil, steam and process fluid service.
1. Mechanical property: Good tensile strength and impact resistance, withstand cyclic stress brought by Class150 pressure fluctuation.
2. Temperature range: Suitable for ‑29℃ ~ 425℃, covering most conventional petrochemical process temperature ranges.
3. Integral casting: Heavy‑duty cast body for 10‑inch size, resisting erosion from high‑speed flowing media.
This globe valve complies with ASME B16.34 for pressure‑temperature rating, flange end per ASME B16.5, meeting global petrochemical project specifications.
Globe valve performs shut‑off and throttling by linear movement of disc against seat. Compared with gate valves, globe valve seat exhibits better wear resistance for media containing minor impurities.
1. Outside screw & yoke (OS&Y) design

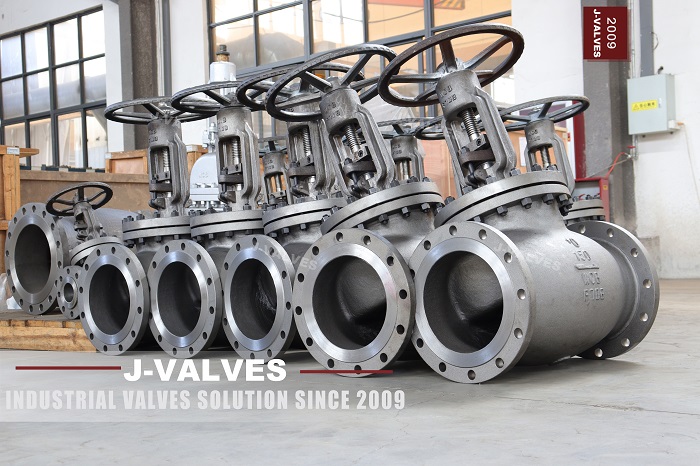

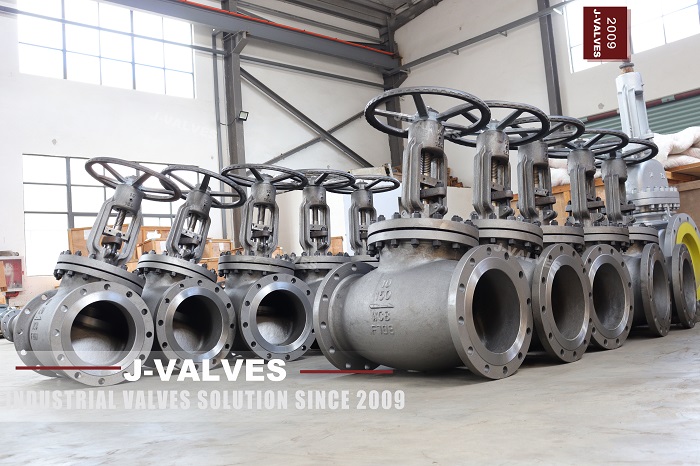

As shown in product photos, OS&Y rising stem structure allows visible stem position for direct opening‑closing indication. Stem threads stay outside pressure cavity, avoiding fouling and jamming caused by process medium, improving reliability under frequent operation.
2. Flanged connection
10‑inch RF raised face flange facilitates site installation and maintenance. Operators can repack packing or inspect sealing parts without cutting pipeline.
3. Optimized internal flow path
Full‑port flow path reduces flow resistance and turbulent erosion to seat & disc, extending service life under high‑velocity medium.
Even with good comprehensive performance, WCB globe valves have clear application limits for proper selection.
✅ Suitable：Refinery process lines, oil transfer pipelines, steam lines, non‑aggressive process media within Class150 pressure and rated temperature range.
⚠️ Limitations：Not recommended for strong corrosive acid or sulfide‑rich service; upgrade liner or stainless steel material is required. Never operate beyond ASME B16.34 pressure‑temperature limits.
For overseas petrochemical EPC projects, valves shall follow globally‑recognized standards:
‑ Pressure‑temperature rating: ASME B16.34
‑ Flange dimension: ASME B16.5
‑ Valve test & inspection: API 598
Founded in 2009, J‑VALVES manufactures industrial valves. Every 10‑inch 150LB WCB OS&Y globe valve undergoes shell test and seat leakage test as per standards, supporting third‑party inspection for EPC projects.
Petrochemical pipelines are working under rigorous conditions. 10‑inch Class150 WCB OS&Y flanged globe valve, built to ASME & API standards, becomes a proven option for most oil and steam process lines.
Besides size and pressure class, confirm medium composition, operating temperature and throttling duty before final selection, to minimize leakage risk and unplanned downtime.
