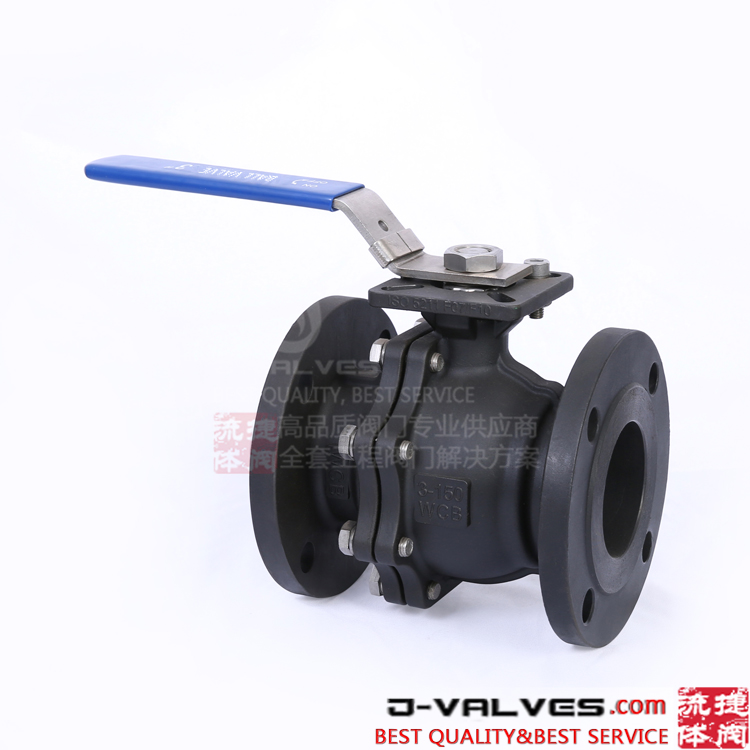

API DIN JIS Cast Steel Stainless Steel Floating Ball Valve

Share to:
The J-VALVESAPI DIN JIS Cast Steel Stainless Steel Floating Ball Valve employ investment or shell cast bodies & tailpieces, all produced from ASTM grade materials that are properly heat treated and chemically finished. All wall thicknesses comply with ASME B16.34 as do bolting stress levels.

Industrial and Oil/Gas piping applications requiring the higher flow capacity and lower pressure drop of full port internal flow-ways, and those applications where ease of repairability is desired.

Floating Ball Valves are designed, constructed, and tested according to API and ASME/ANSI Standards. Other international standards including BS and DIN are also available upon request.
Quantity:
  • 2“-56”
  • J-VALVES

API DIN JIS Cast Steel Stainless Steel Floating Ball Valve


1. API DIN JIS Cast Steel Stainless Steel Floating Ball Valve Technical specifications:

2-Piece Bolted Body, Full Port Construction

Fully Compliant to ASME B16.34

Fully Compliant to API 608

API 607 6th Edition Fire-Safe

All Models are NACE MR0175 Compliant

Submerged Packing System & Direct Mount Actuation

Standard ISO Actuator Mounting Pads on All Sizes

Standard Locking Stainless Steel Handles

Second Generation PTFE Seats Provide Higher Operating Temperatures

Standard Electrically Grounded Ball & Stem



2. API DIN JIS Cast Steel Stainless Steel Floating Ball Valve Product Specification:

Size: 1/2''-10''(DN15~DN250)

Pressure Rating: 150LB-600LB/PN16~PN100/10K~60K)

Material: A351 CF8M/CF8/CF3/CF3M, A216 WCB, A352 LCB/LCC,F51/F53/C95800

Suitable Temperature: -196ºC~450ºC( Different temperature choose different materials).

Suitable Medium: Water, Steam, Oil and natural gas etc.



3.  API DIN JIS Cast Steel Stainless Steel Floating Ball Valve Product Feature:

Floating ball, full bore or reduce bore.

ISO5211 mounting pad for option.

Blow-out proof stem design.

PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).

Anti-static design and API 607 Fire Safe Design available

l   Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.



4. API DIN JIS Cast Steel Stainless Steel Floating Ball Valve Product Drawing:


Note: All the data should be confirmed with the approved drawings of manufacturer.
